M Series Z46 LED Conversion Kit (Single Mode, XHP50.2 LED)

US$87.50
This is a LED conversion kit for the Surefire M Series Z46 Head Unit.

It replaces all the internals of the Surefire Z46 Head Unit and transforming it into a LED Head Unit.
***Surefire Z46 Head Unit is NOT included in this kit.***

Removal of the stock Z46 Bezel Ring is needed in order to install this kit, it will require some elbow grease and DIY skill.
If you do not think you can remove the stock Z46 Bezel Ring, please do not purchase this kit.

***This kit is NOT compatible with 1st Generation Z46 Head Units with the Lexan lens, if you are not sure, please contact us BEFORE you purchase.***

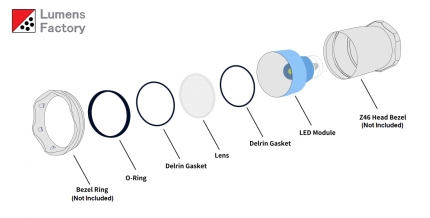

This kit includes:

1. LED Module (7.2V to 18V, Direct Thermal Copper MCPCB, Fully Potted Internals, Max Output 2000 Lumens)
2. Tempered Glass UCL Lens, Optical Coated
3. Delrin Gasket (1 Pair)
4. Rubber Gasket
5. Z46 Bezel Ring Removal Tool
***Surefire Z46 Head Unit is NOT included in this kit.***

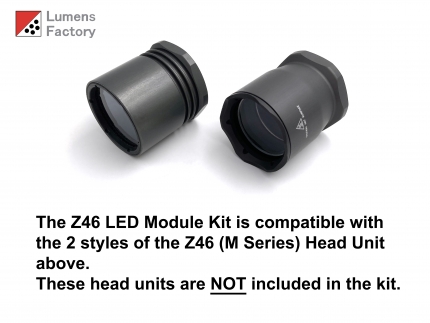

Compatible with:

Surefire
M3
M500 Series Weaponlights
M900 Series Weaponlights
M961 Weaponlight
M962 Weaponlight


Runtime:

3 x CR123a Primary Cells: ~1 hour
3 x 16340 (RCR123): ~1 hour
2 x 17500 (1100mAh): ~40 mins

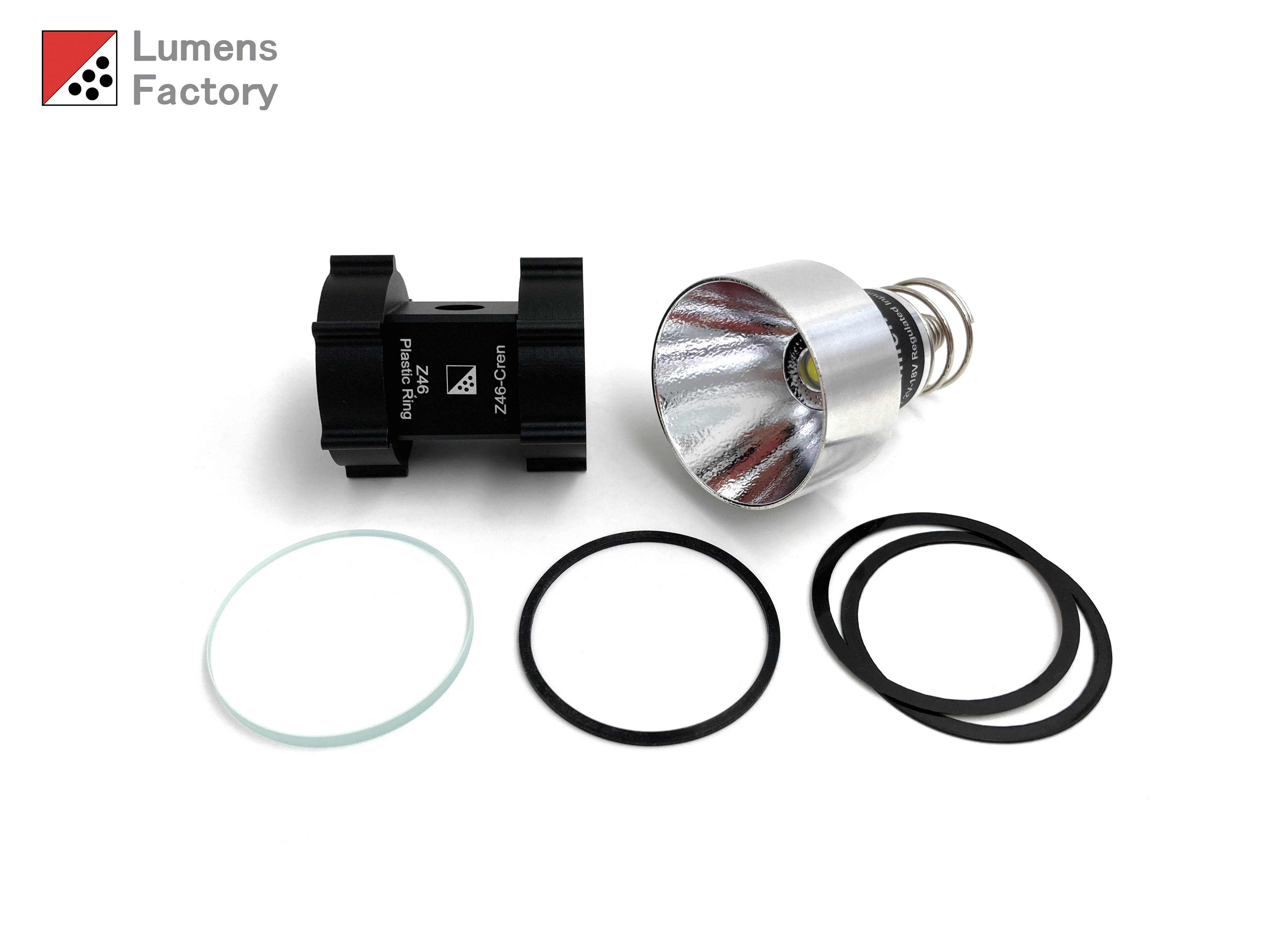

This is the "Full Kit" which includes the Z46 Bezel Ring Removal Tool.

This kit includes:

1. LED Module (7.2V to 18V, Direct Thermal Copper MCPCB, Fully Potted Internals, Max Output 2000 Lumens)
2. Tempered Glass UCL Lens, Optical Coated
3. Delrin Gasket (1 Pair)
4. Rubber Gasket
5. Z46 Bezel Ring Removal Tool
***Surefire Z46 Head Unit is NOT included in this kit.***

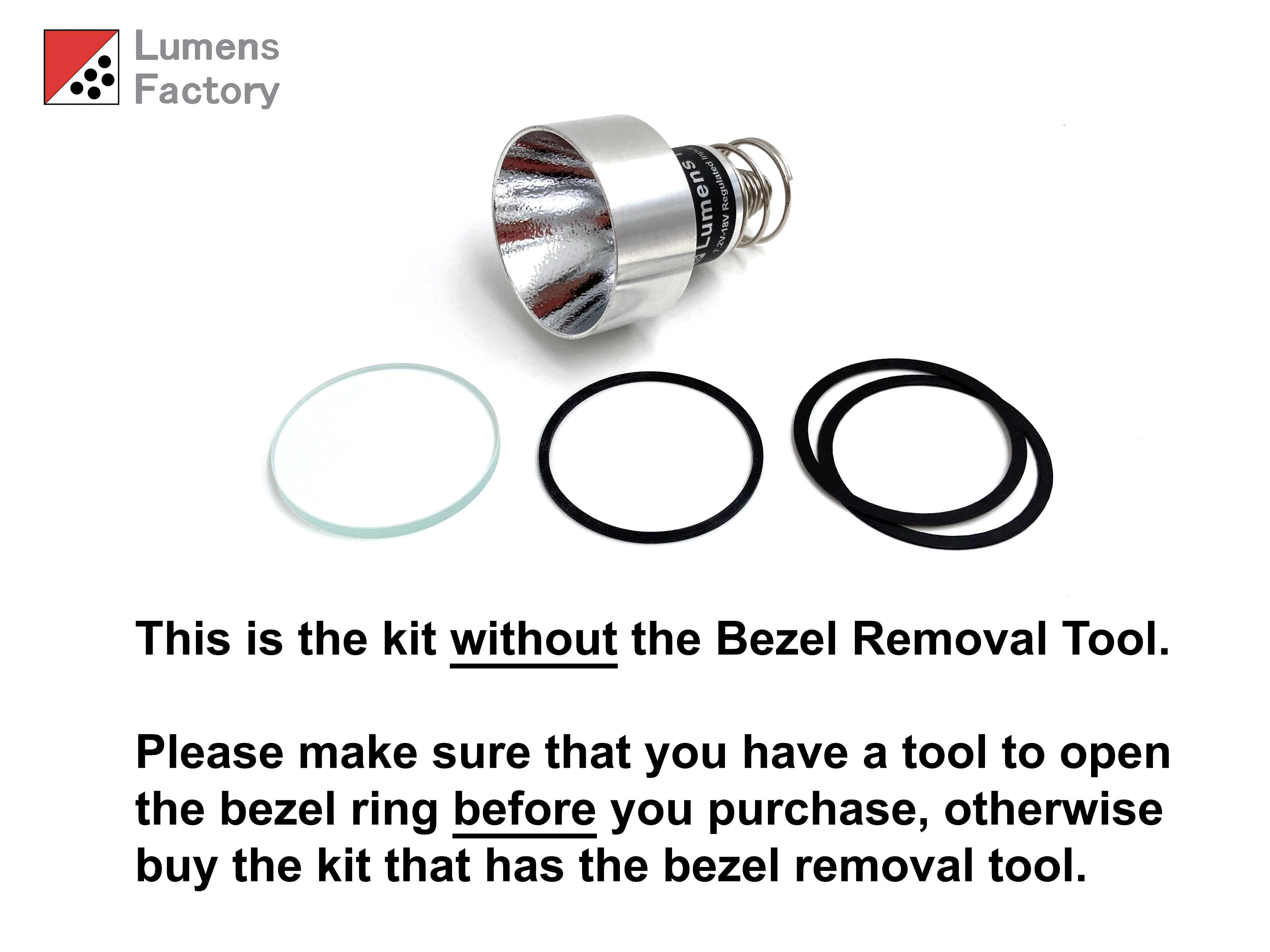

This is the kit that do NOT include the Z46 Bezel Ring Removal Tool.
***ONLY purchase this kit if you ALREADY have a Z46 Bezel Ring Removal Tool.***

This kit includes:

1. LED Module (7.2V to 18V, Direct Thermal Copper MCPCB, Fully Potted Internals, Max Output 2000 Lumens)
2. Tempered Glass UCL Lens, Optical Coated
3. Delrin Gasket (1 Pair)
4. Rubber Gasket
***Surefire Z46 Head Unit is NOT included in this kit.***
