Seraph D36 Head Unit (Gen 5) for Surefire P/Z/C, Cree XHP50.2 LED

US$78.00
We will be closing the Sales Office from May 31st, 2023 to June 12th, 2023.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

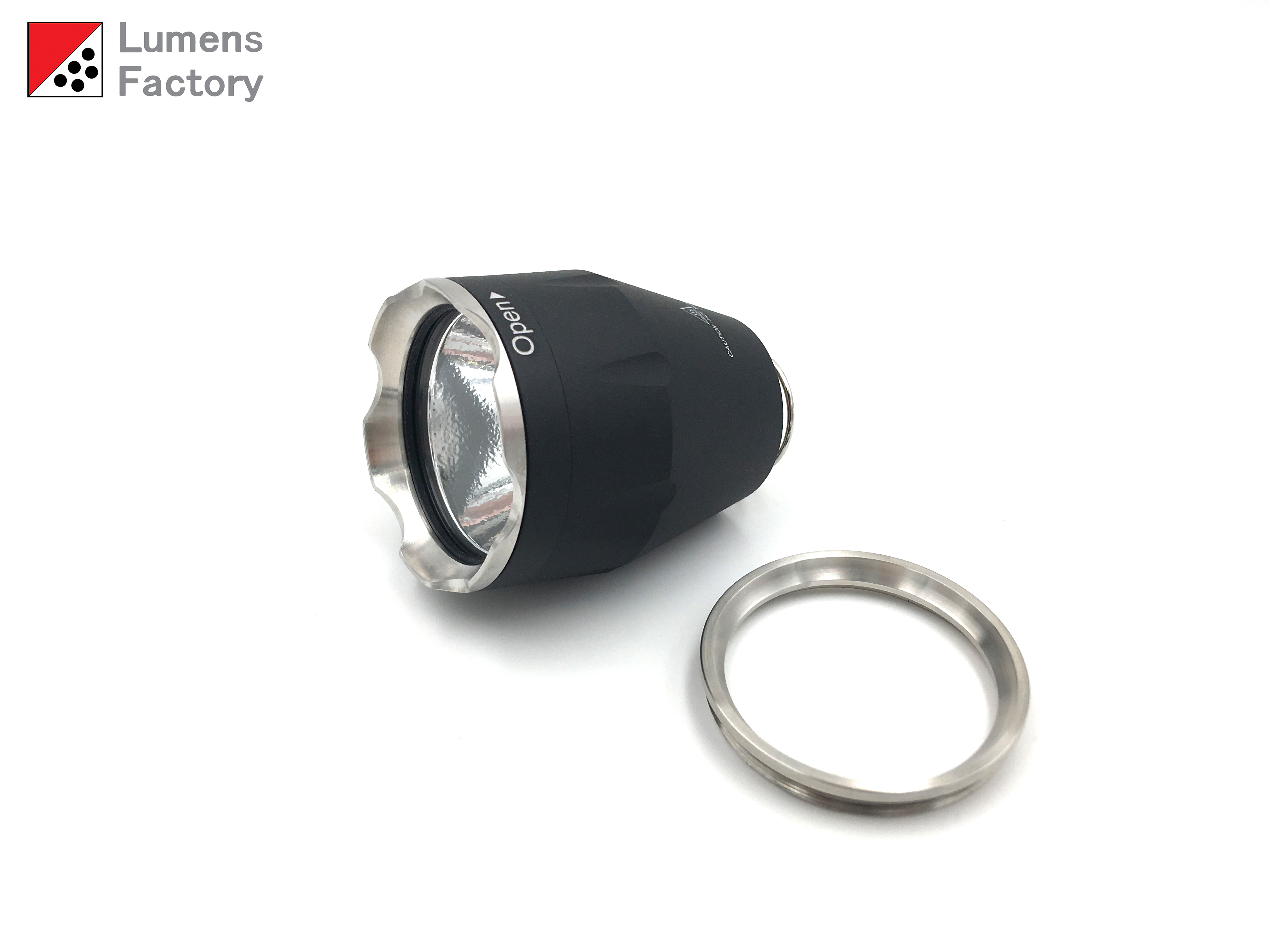

Seraph D36 LED Head Unit

D36 36mm Mini-Turbo Head for Seraph SP-6 and SP-9
Compatible with Surefire P/C/Z Series Lights
2 Stainless Steel Bezel Rings Included (Scalloped and Flat)
Available in HA3 Black and Charcoal Grey Finish

-High Output Cree XHP50.2, K4 Bin LED (Max Output 2000 Lumens)
-7.2V to 18V Regulated Input for Maximum Flexibility
-Direct Thermal Copper MCPCB
-Fully Potted Internal Components
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Driver Internals Thermally Potted
-Standard White Version
-Tactical Single Mode
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
6P, 9P
C2, C3
D2, D3
Z2, Z3
(Does NOT fit Surefire G2, G3 Lights)

Lumens Factory
Seraph SP-6, SP-9


Runtime:

3 x CR123a Primaries: ~1 hour
3 x 16340 (750mAh): ~1 hour
2 x 17500 (1100mAh): ~40 mins
4 x CR123a Primaries: ~ 1.2 hour
4 x 16340 (750mAh): ~ 1.2 hour
2 x 17670 (1600mAh): ~1.5 hour
2 x 18650 (2900mAh): ~2 hours

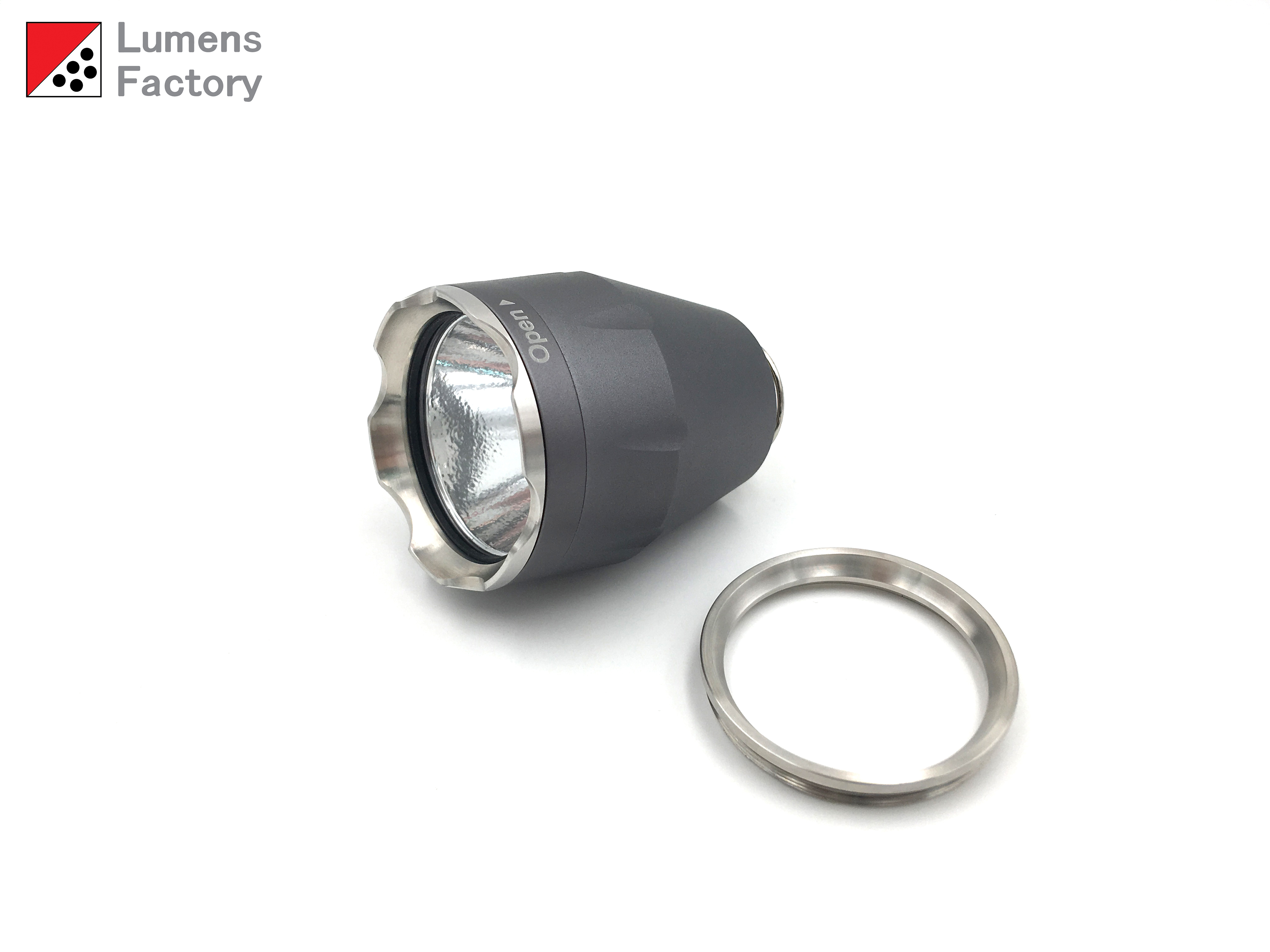

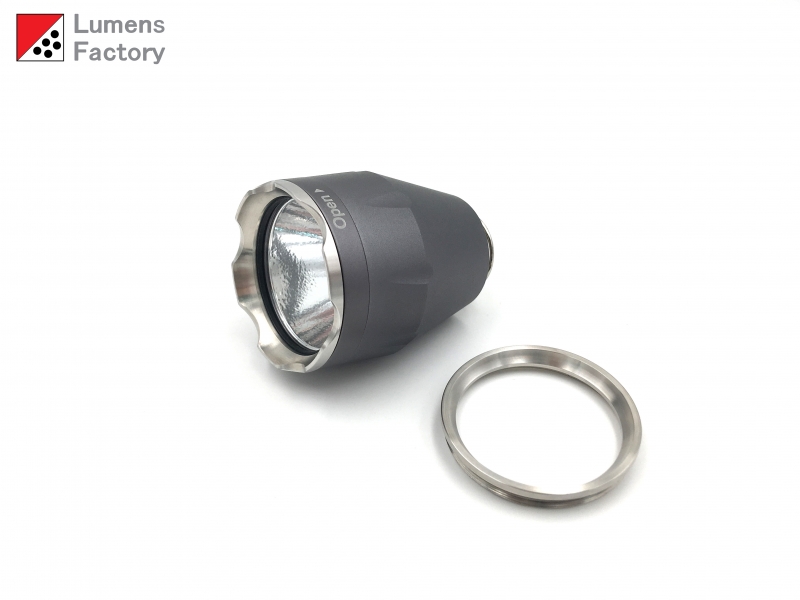

D36 LED Head Unit

D36 36mm Mini-Turbo Head for Seraph SP-6 and SP-9
Compatible with Surefire P/C/Z Series Lights
2 Stainless Steel Bezel Rings Included (Scalloped and Flat)
This is the version with the Charcoal Grey Finish

-High Output Cree XHP50.2, K4 Bin LED (Max Output 2000 Lumens)
-7.2V to 18V Regulated Input for Maximum Flexibility
-Direct Thermal Copper MCPCB
-Fully Potted Internal Components
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Driver Internals Thermally Potted
-Standard White Version
-Tactical Single Mode
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
6P, 9P
C2, C3
D2, D3
Z2, Z3
(Does NOT fit Surefire G2, G3 Lights)

Lumens Factory
Seraph SP-6, SP-9


Runtime:

3 x CR123a Primaries: ~1 hour
3 x 16340 (750mAh): ~1 hour
2 x 17500 (1100mAh): ~40 mins
4 x CR123a Primaries: ~ 1.2 hour
4 x 16340 (750mAh): ~ 1.2 hour
2 x 17670 (1600mAh): ~1.5 hour
2 x 18650 (2900mAh): ~2 hours

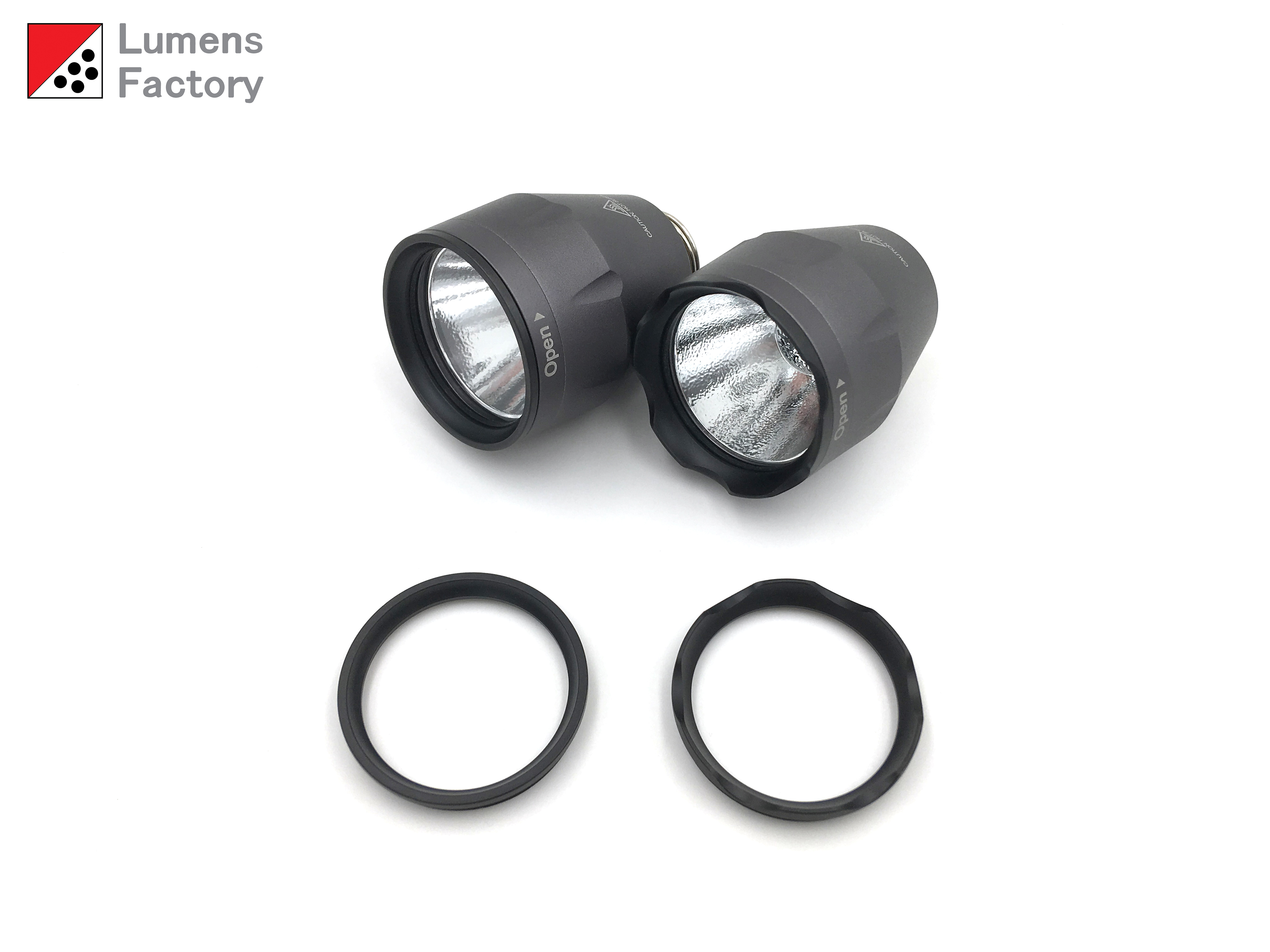

Upgrade version with the Mil-Spec QPQ Black Bezel on the Charcoal Grey Head Unit.

-Will change the Standard Stainless Steel Bezel on the D36 Head Unit to Mil-Spec QPQ Black Stainless Steel Bezels.
-Include both Crenelated and Flat Mil-Spec QPQ Black Stainless Steel Bezels for the D36 Head Unit.
D36 LED Head Unit

D36 36mm Mini-Turbo Head for Seraph SP-6 and SP-9
Compatible with Surefire P/C/Z Series Lights
2 Stainless Steel Bezel Rings Included (Scalloped and Flat)
This is the version in HA3 Flat/Matt Black

-High Output Cree XHP50.2, K4 Bin LED (Max Output 2000 Lumens)
-7.2V to 18V Regulated Input for Maximum Flexibility
-Direct Thermal Copper MCPCB
-Fully Potted Internal Components
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Driver Internals Thermally Potted
-Standard White Version
-Tactical Single Mode
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
6P, 9P
C2, C3
D2, D3
Z2, Z3
(Does NOT fit Surefire G2, G3 Lights)

Lumens Factory
Seraph SP-6, SP-9


Runtime:

3 x CR123a Primaries: ~1 hour
3 x 16340 (750mAh): ~1 hour
2 x 17500 (1100mAh): ~40 mins
4 x CR123a Primaries: ~ 1.2 hour
4 x 16340 (750mAh): ~ 1.2 hour
2 x 17670 (1600mAh): ~1.5 hour
2 x 18650 (2900mAh): ~2 hours

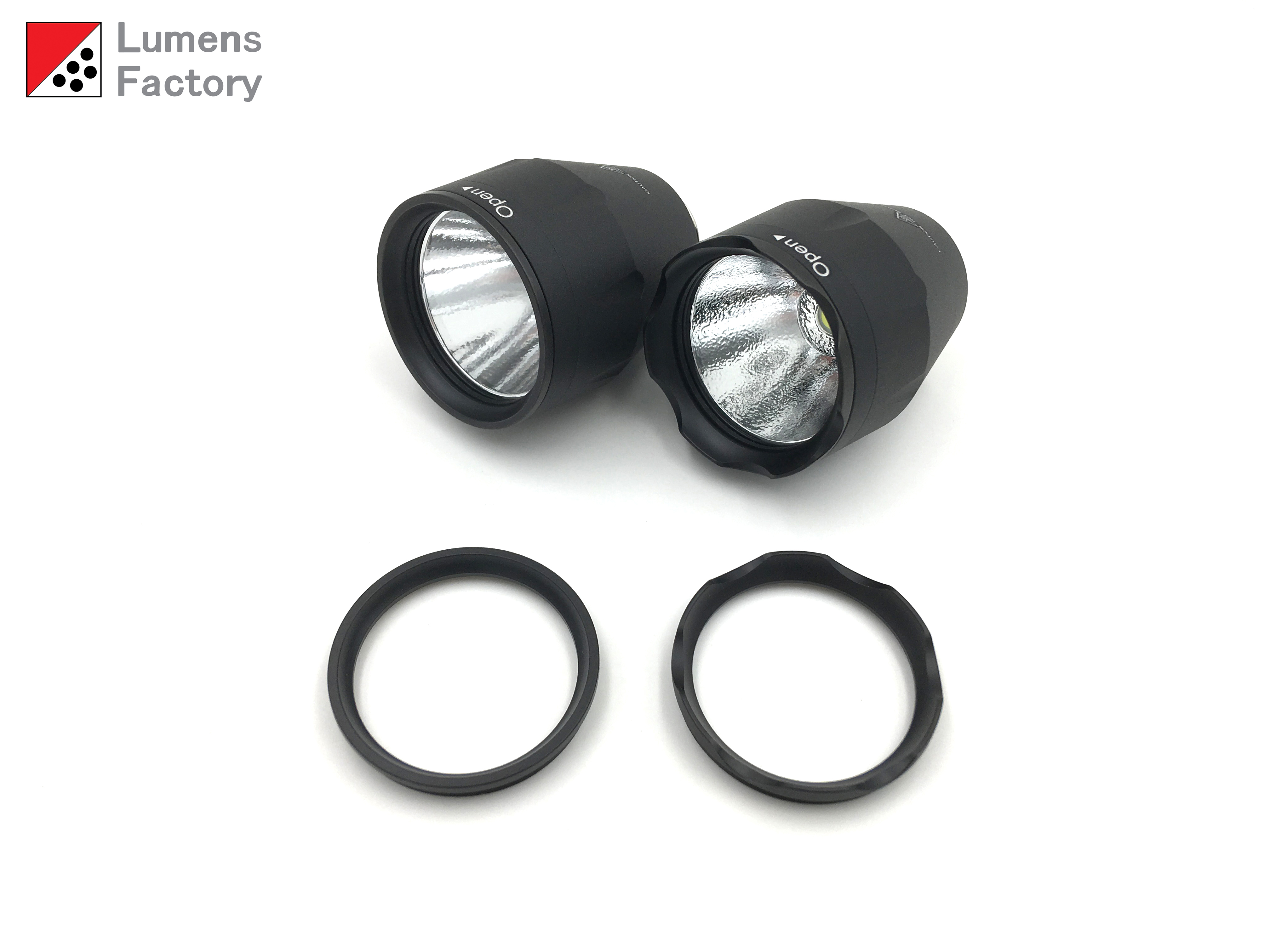

Upgrade version with the Mil-Spec QPQ Black Bezel on the HA3 Flat/Matt Black Head Unit.

-Will change the Standard Stainless Steel Bezel on the D36 Head Unit to Mil-Spec QPQ Black Stainless Steel Bezels.
-Include both Crenelated and Flat Mil-Spec QPQ Black Stainless Steel Bezels for the D36 Head Unit.
