M3-LED Single Mode LED Assembly (Gen 5), Nichia 519A
Product Option
-- Select Option--
Nichia 519A Cool White
Nichia 319A Neutral White 80-CRI
Cree XP-L Warm White 90-CRI
PRICE :
US$58.00
We will be closing the Sales Office from May 31st, 2023 to June 12th, 2023.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

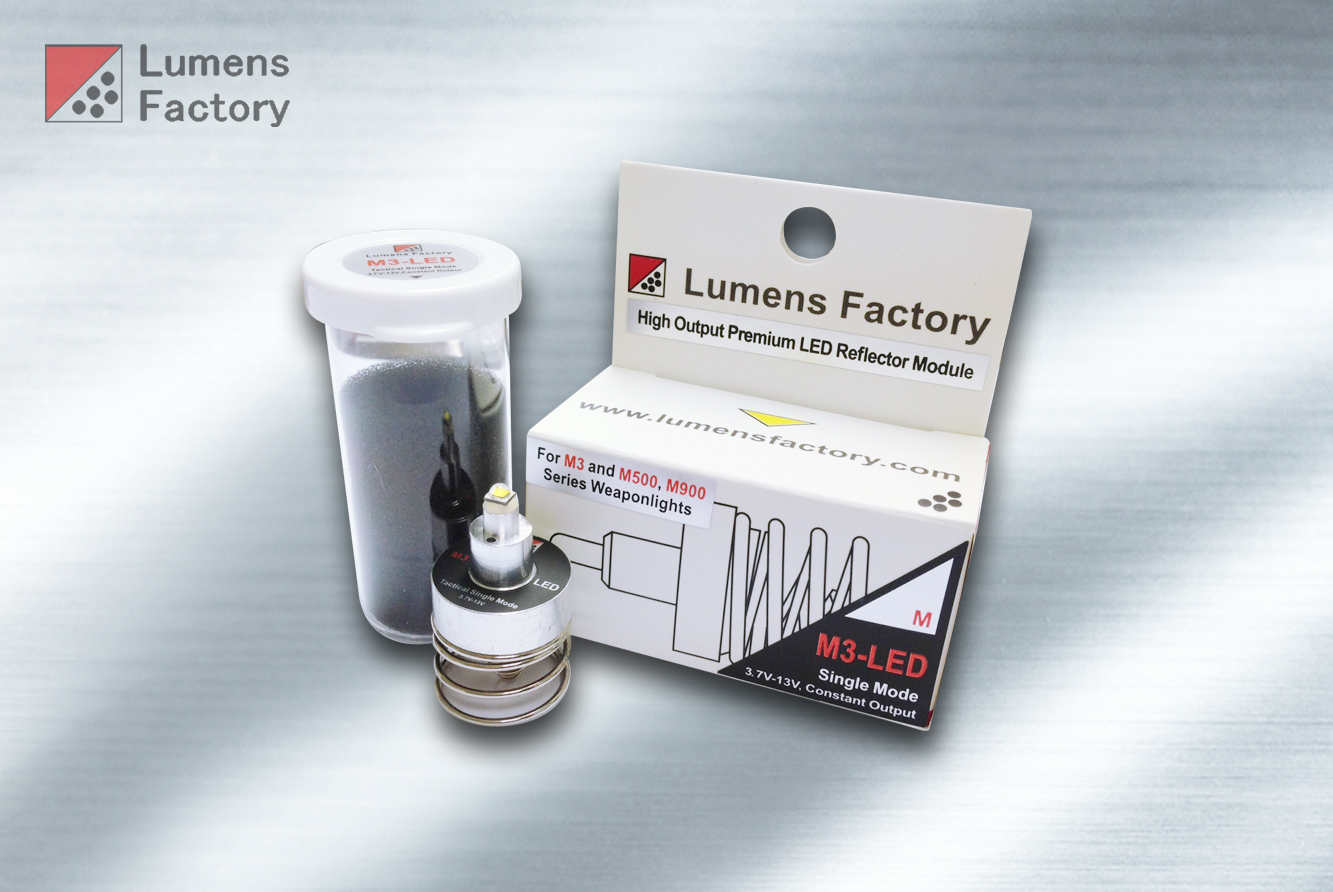

M3-LED High Output Single Mode LED Tower Module
(3.6V-13V Regulated Input)
Generation 5: (Cool White) Updated to Nichia 519A LED, Improved Driver
Generation 4.5: (Neutral White) Nichia 319A LED, Improved Driver
Generation 2.5: (Warm White) Cree XP-L LED, Improved Driver
-High Output Nichia 519A or 319A or Cree XP-L
(Max Output from 700 to 800 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Cool White (5700K) or Neutral Tint (4000K) or Warm White (2600-3200K)
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot
Compatible with:
Surefire
M3
M500 Series Weaponlights (Will NOT fit the 1st Generation M500, if you are not sure please ask before your purchase)
M900 Series Weaponlights
M961 Weaponlight
M962 Weaponlight
Important Note: This LED module will NOT fit the 1st Generation M500 Weaponlight, if you are not sure please ask before your purchase.
Runtime:
1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
M3-LED High Output Single Mode LED Tower Module
Cool White
(3.6V-13V Regulated Input)
Generation 5: (Cool White) Updated to Nichia 519A LED, Improved Driver
-High Output Nichia 519A Cool White LED (Max Output 800 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Cool White, Cool Colour Temperature (5700K)
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot
Compatible with:
Surefire
M3
M500 Series Weaponlights (Will NOT fit the 1st Generation M500, if you are not sure please ask before your purchase)
M900 Series Weaponlights
M961 Weaponlight
M962 Weaponlight
Important Note: This LED module will NOT fit the 1st Generation M500 Weaponlight, if you are not sure please ask before your purchase.
Runtime:
1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours

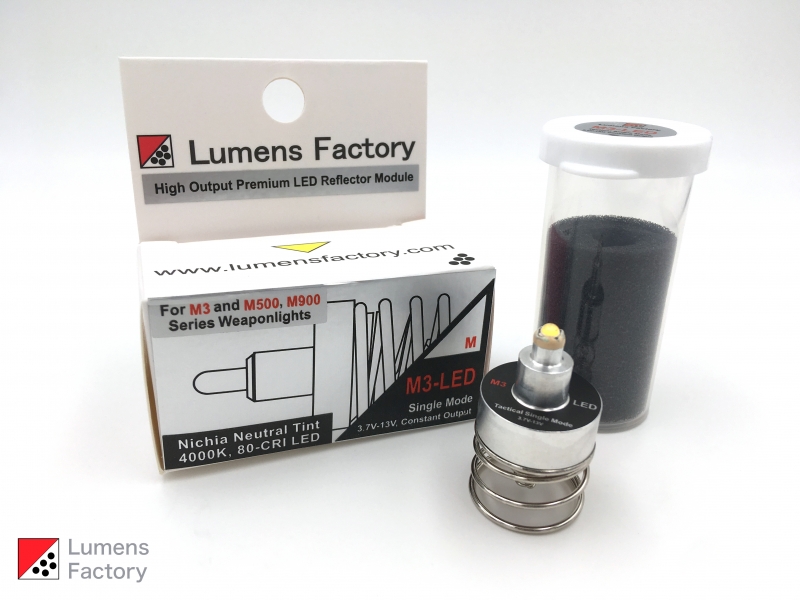

M3-LED High Output Single Mode LED Tower Module
Neutral White: 80-CRI
(3.6V-13V Regulated Input)
Generation 4.5: (Neutral White) Nichia 319A LED, Improved Driver
-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 750 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Neutral White, Neutral Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot
Compatible with:
Surefire
M3
M500 Series Weaponlights (Will NOT fit the 1st Generation M500, if you are not sure please ask before your purchase)
M900 Series Weaponlights
M961 Weaponlight
M962 Weaponlight
Important Note: This LED module will NOT fit the 1st Generation M500 Weaponlight, if you are not sure please ask before your purchase.
Runtime:
1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 Hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
M3-LED High Output Single Mode LED Tower Module
Warm White: 90-CRI
(3.6V-13V Regulated Input)
Generation 2.5: (Warm White) Cree XP-L LED, Improved Driver
-High Output Cree XP-L, Warm White 90-CRI LED (Max Output 700 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Warm White, Warm Colour Temperature (2600K-3200K)
-90-CRI, Ultra High Colour Rendition
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot
Compatible with:
Surefire
M3
M500 Series Weaponlights (Will NOT fit the 1st Generation M500, if you are not sure please ask before your purchase)
M900 Series Weaponlights
M961 Weaponlight
M962 Weaponlight
Important Note: This LED module will NOT fit the 1st Generation M500 Weaponlight, if you are not sure please ask before your purchase.
Runtime:
1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 Hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
