D26-LED LED Module (Gen 9), 3.6V-13V. Nichia 519A (1 Mode)

US$38.50
We will be closing the Sales Office from May 31st, 2023 to June 12th, 2023.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

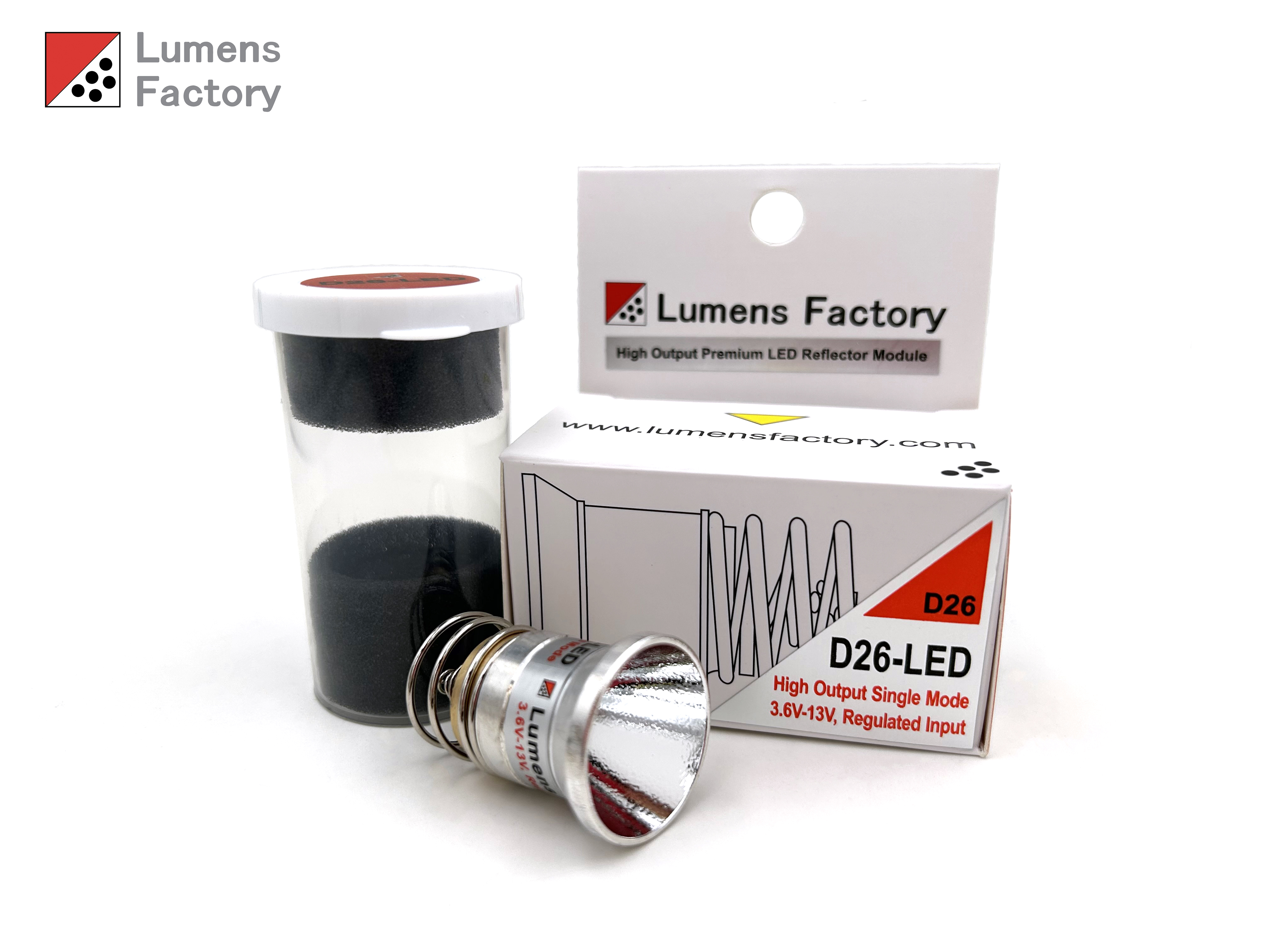

D26-LED High Output Single Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, 2000mA Driver
Generation 7: (Neutral White) Nichia 319A LED, 2000mA Driver
Generation 5.5: (Warm White) Cree XP-L LED, 2000mA Driver

-High Output Nichia 519A or Nichia 319A or Cree XP-L LED
(Max Output from 800 to 1100 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel or Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***

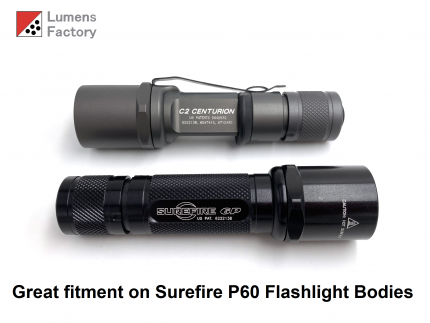

Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)

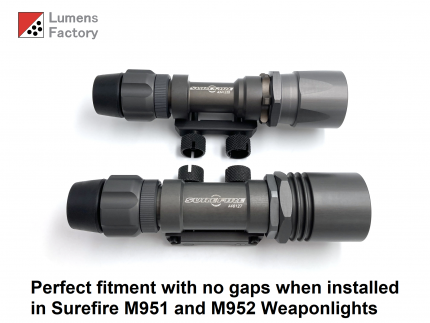

M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 17670 (1600mAh): ~1 hour
1 x 18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (2900mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED High Output Single Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, 2000mA Driver

-High Output Nichia 519A LED (Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 Hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
D26-LED High Output Single Mode LED Reflector Module
Neutral White: 80-CRI
(3.6V-13V Regulated Input)

Generation 7: (Neutral White) Nichia 319A LED, 2000mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 850 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 Hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
D26-LED High Output Single Mode LED Reflector Module
Warm White: 90-CRI
(3.6V-13V Regulated Input)

Generation 5.5: (Warm White) Cree XP-L LED, 2000mA Driver

-High Output Cree XP-L, Warm White 90-CRI LED (Max Output 800 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Warm White, Warm Colour Temperature (2600K-3200K)
-90-CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***

Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 Hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
D26-LED High Output Single Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 9: (Cool White) Updated to Nichia 519A LED, 2000mA Driver

-High Output Nichia 519A LED (Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector

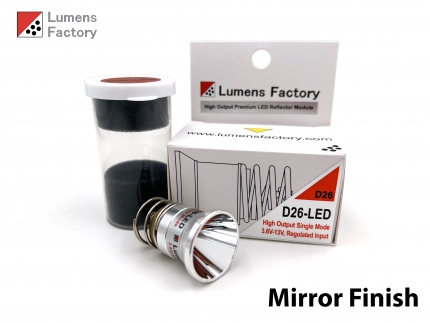

-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 Hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
D26-LED High Output Single Mode LED Reflector Module
Neutral White: 80-CRI
(3.6V-13V Regulated Input)

Generation 7: (Neutral White) Nichia 319A LED, 2000mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 850 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 Hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
D26-LED High Output Single Mode LED Reflector Module
Warm White: 90-CRI
(3.6V-13V Regulated Input)

Generation 5.5: (Warm White) Cree XP-L LED, 2000mA Driver

-High Output Cree XP-L, Warm White 90-CRI LED (Max Output 800 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Warm White, Warm Colour Temperature (2600K-3200K)
-90-CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Mirror Finish Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***

Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x AW17670 (1600mAh): ~1 hour
1 x AW18650 (2900mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x AW RCR123 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x AW RCR123 (750mAh): ~3 Hours
2 x AW 17500 (1100mAh): ~2.5 hours
2 x AW 18500 (1500mAh): ~3 hours
2 x AW 18650 (2900mAh): ~5.5 hours
3 x AW 18500 (1500mAh): ~6 hours
