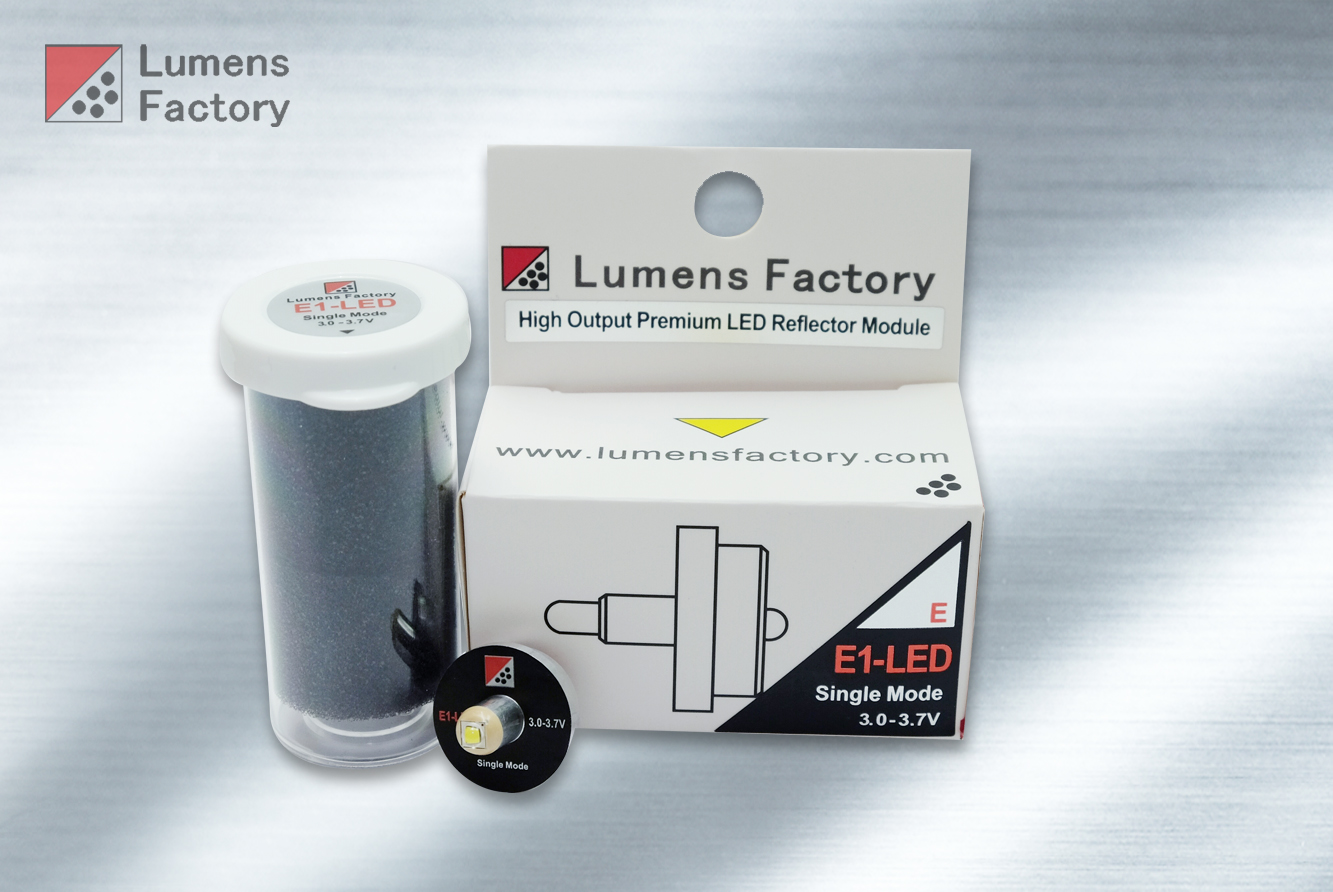

E1-LED Single Mode LED Assembly (Gen 6), Nichia 519A

US$43.50
Due to a sudden influx of bulk orders, retail sales will be temporarily stopped until April 30th, 2024.
Shopping Cart at the Online Shop will cease to function until then.
Sorry for any inconvenience caused.
Thank you for your support.
E1-LED High Output Single Mode LED Tower Module, Generation 5
(2.7V-4.5V Regulated Input)

Generation 6: (Cool White) Updated to Nichia 519A LED, Fully Potted Internals
Generation 5.5: (Neutral White) Nichia 319A LED, Fully Potted Internals
Generation 6: (Warm White) Updated to Nichia 519A R9080 LED, Fully Potted Internals

-High Output Nichia 519A or 319A LED (Max Output 420 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Cool White (5700K), Neutral Tint (4000K) or Warm White (3000K)
-Maximum Current Output at 750mA
-Direct Thermal Copper MCPCB
-Internals Fully Potted
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1 Series
E2 Series (Using 1 Cell 3.7V Non-Protected Rechargeable Battery)
M600B Scout Light (Using 1 Cell 3.7V Non-Protected Rechargeable Battery)

***Do NOT use "Protected" Rechargeable Batteries with this LED module.***
***Using "Protected" Rechargeable Batteries will damage this LED module.***

Runtime:

1 x CR123a Primaries: ~1.5 hour
1 x 16340 Rechargeable: ~1 hour (Non-Protected Rechargeable Batteries ONLY)
1 x 16650 Rechargeable on E2 lights : ~2 hours (Non-Protected Rechargeable Batteries ONLY)
1 x 17670 Rechargeable on E2 lights: ~2 hours (Non-Protected Rechargeable Batteries ONLY)
E1-LED High Output Single Mode LED Tower Module
(2.7V-4.5V Regulated Input)

Generation 6: (Cool White) Updated to Nichia 519A LED, Fully Potted Internals

-High Output Nichia 519A LED (Max Output 420 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Cool White, Cool Colour Temperature (5700K)
-Maximum Current Output at 750mA
-Direct Thermal Copper MCPCB
-Internals Fully Potted
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1 Series
E2 Series (Using 1 Cell 3.7V Non-Protected Rechargeable Battery)
M600B Scout Light (Using 1 Cell 3.7V Non-Protected Rechargeable Battery)

***Do NOT use "Protected" Rechargeable Batteries with this LED module.***
***Using "Protected" Rechargeable Batteries will damage this LED module.***

Runtime:

1 x CR123a Primaries: ~1.5 hour
1 x 16340 Rechargeable: ~1 hour (Non-Protected Rechargeable Batteries ONLY)
1 x 16650 Rechargeable on E2 lights : ~2 hours (Non-Protected Rechargeable Batteries ONLY)
1 x 17670 Rechargeable on E2 lights: ~2 hours (Non-Protected Rechargeable Batteries ONLY)
E1-LED High Output Single Mode LED Tower Module
(2.7V-4.5V Regulated Input)

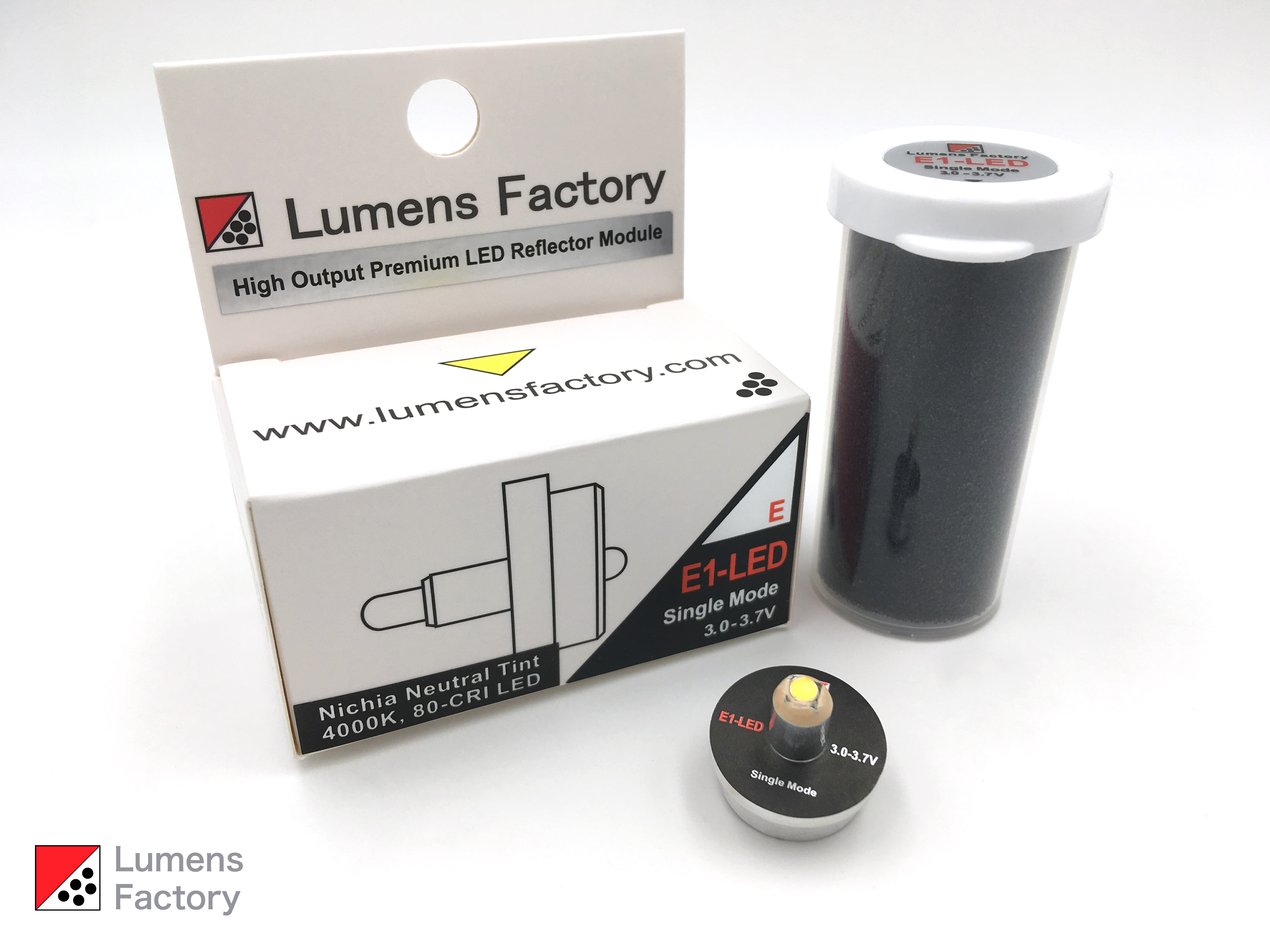

Generation 5.5: (Neutral White) Nichia 319A LED, Fully Potted Internals

-High Output Nichia 319A, Neutral Tint 80-CRI LED (Max Output 380 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Neutral White, Neutral Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Maximum Current Output at 750mA
-Direct Thermal Copper MCPCB
-Internals Fully Potted
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1 Series
E2 Series (Using 1 Cell 3.7V Non-Protected Rechargeable Battery)
M600B Scout Light (Using 1 Cell 3.7V Non-Protected Rechargeable Battery)

***Do NOT use "Protected" Rechargeable Batteries with this LED module.***
***Using "Protected" Rechargeable Batteries will damage this LED module.***

Runtime:

1 x CR123a Primaries: ~1.5 hour
1 x 16340 Rechargeable: ~1 hour (Non-Protected Rechargeable Batteries ONLY)
1 x 16650 Rechargeable on E2 lights : ~2 hours (Non-Protected Rechargeable Batteries ONLY)
1 x 17670 Rechargeable on E2 lights: ~2 hours (Non-Protected Rechargeable Batteries ONLY)
E1-LED High Output Single Mode LED Tower Module
(2.7V-4.5V Regulated Input)

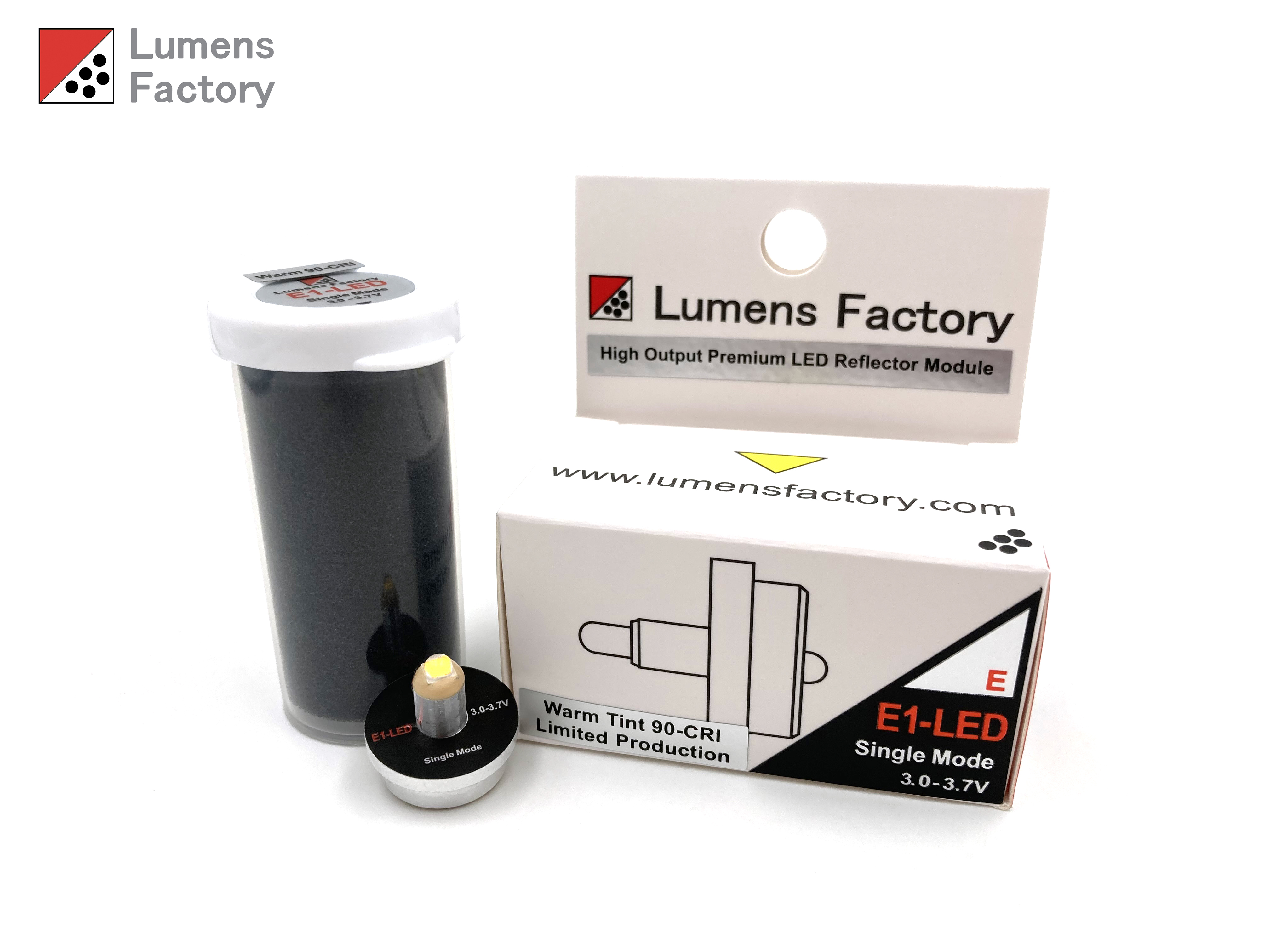

Generation 6: (Warm White) Updated to Nichia 519A R9080 LED, Fully Potted Internals

-High Output Nichia 519A R9080 LED Warm Tint LED (Max Output 380 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Maximum Current Output at 750mA
-Direct Thermal Copper MCPCB
-Internals Fully Potted
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1 Series
E2 Series (Using 1 Cell 3.7V Non-Protected Rechargeable Battery)
M600B Scout Light (Using 1 Cell 3.7V Non-Protected Rechargeable Battery)

***Do NOT use "Protected" Rechargeable Batteries with this LED module.***
***Using "Protected" Rechargeable Batteries will damage this LED module.***

Runtime:

1 x CR123a Primaries: ~1.5 hour
1 x 16340 Rechargeable: ~1 hour (Non-Protected Rechargeable Batteries ONLY)
1 x 16650 Rechargeable on E2 lights : ~2 hours (Non-Protected Rechargeable Batteries ONLY)
1 x 17670 Rechargeable on E2 lights: ~2 hours (Non-Protected Rechargeable Batteries ONLY)
