SIMX-LED (Gen 4) LED Module for M3X, M6X, LAM-1000, AN/PEQ-14, AN/PEQ-16, AN/PEQ-16A
PRICE :
US$58.00
We will be closing the Sales Office from September 18th, 2023 to September 26th, 2023.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

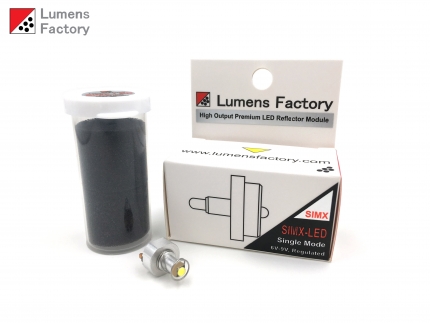

SIMX-LED High Output Single Mode LED Tower Module, Generation 3
(6V-9V Regulated Output)
Generation 2:
Upgraded to Nichia 319A, 5700K LED. Known for their superb pure white tint and high output. Great improvement from the previous Cree XP-G3 version.
Generation 3:
New higher power driver circuit with wider input voltage, now able to use 2 x 3.7V rechargeable battery set ups on models without laser and/or IR units.
Generation 4:
Updated to Nichia 519A LED from Nichia 319A resulting in higher output and improved tint. (March, 2023)
-High Output Nichia 319A LED (Max Output 600 Lumens)
-6V-9V Regulated Output
-Maximum Current Output at 1200mA
-Cool White, Cool Colour Temperature (5700K)
-Direct Thermal Copper MCPCB
-Fully Potted Internal Components
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Thermal Protection Warning
-Precision Machined Aluminum Lamp Assembly
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot
-Recoil Dampening Spring
Compatible with:
Insight / Streamlight / EOTech
M3X (Incandescent Model)
M6X (Incandescent Model)
***This LED upgrade module is ONLY compatible with incandescent version of M3X and M6X***
***Do NOT use 3.7V Rechargeable Batteries on models with laser and/or IR units***
AN/PEQ-6A ILLM
AN/PEQ-16
AN/PEQ-16A (Incandescent Version)
LAM-100
LAM-150
LAM-200
LAM-250
LAM-300 (USP)
LAM-350 (USP)
LAM-400 (Mark 23)
LAM-450 (Mark 23)
LAM-1000 (AN/PEQ-14, ILWLP)
LAM-1150
LAM-1200
LAM-1250
LAM-1300 (USP)
LAM-1350 (USP)
LAM-1400 (Mark 23, AN/PEQ-6)
LAM-1450 (Mark 23)
And all models using the Insight/Streamlight/EOtech CFL-120 lamp assembly.
***Do NOT use 3.7V Rechargeable Batteries on models with laser and/or IR units***
***NOT Compatible with M2 UTL, M3, M3-LED, M4, M4-PRO, M5, M6 TLI***
***This LED upgrade module is ONLY compatible with incandescent version of M3X and M6X***
Runtime:
2 x CR123A Primary Cells: ~2 hours
2 x 16340 (RCR 3.7V Rechargeable Cells: ~1.2 hours
***Do NOT use 3.7V Rechargeable Batteries on models with laser and/or IR units***
***Heat Warning: This is a high output LED module that produce excessive heat. Do not operate constantly for more than 20 mins to avoid overheating.***
