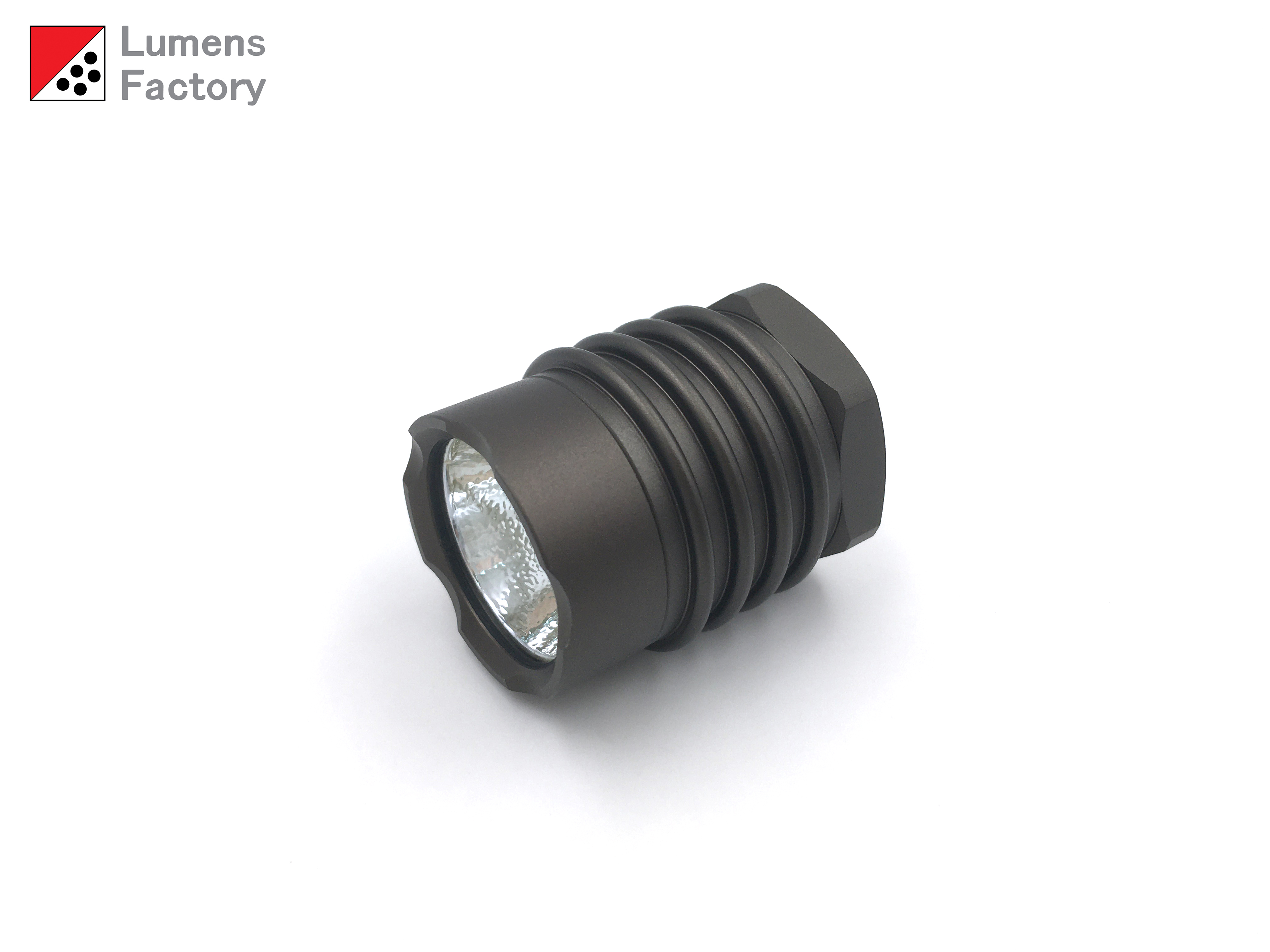

E Series KL1 Style Head Unit (Gen 7), 3 Mode (2.7V-4.5V), HA3 Natural/HA3 Black

US$68.50
Due to some sudden family matters, we will be closing the Sales Office from February 18th, 2024 to February 24th, 2024.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver
Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver
Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A or Nichia 319A (Max Output 800-850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Cool White, Neutral White 80-CRI or Warm White 90+CRI LEDs Available
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black or Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot

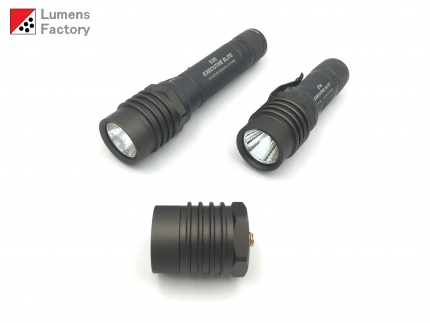

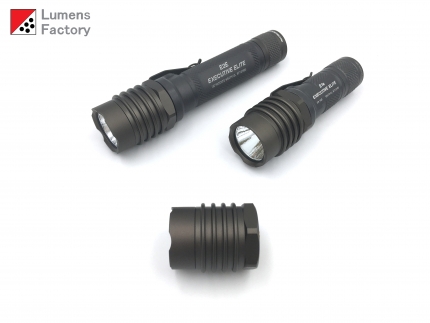

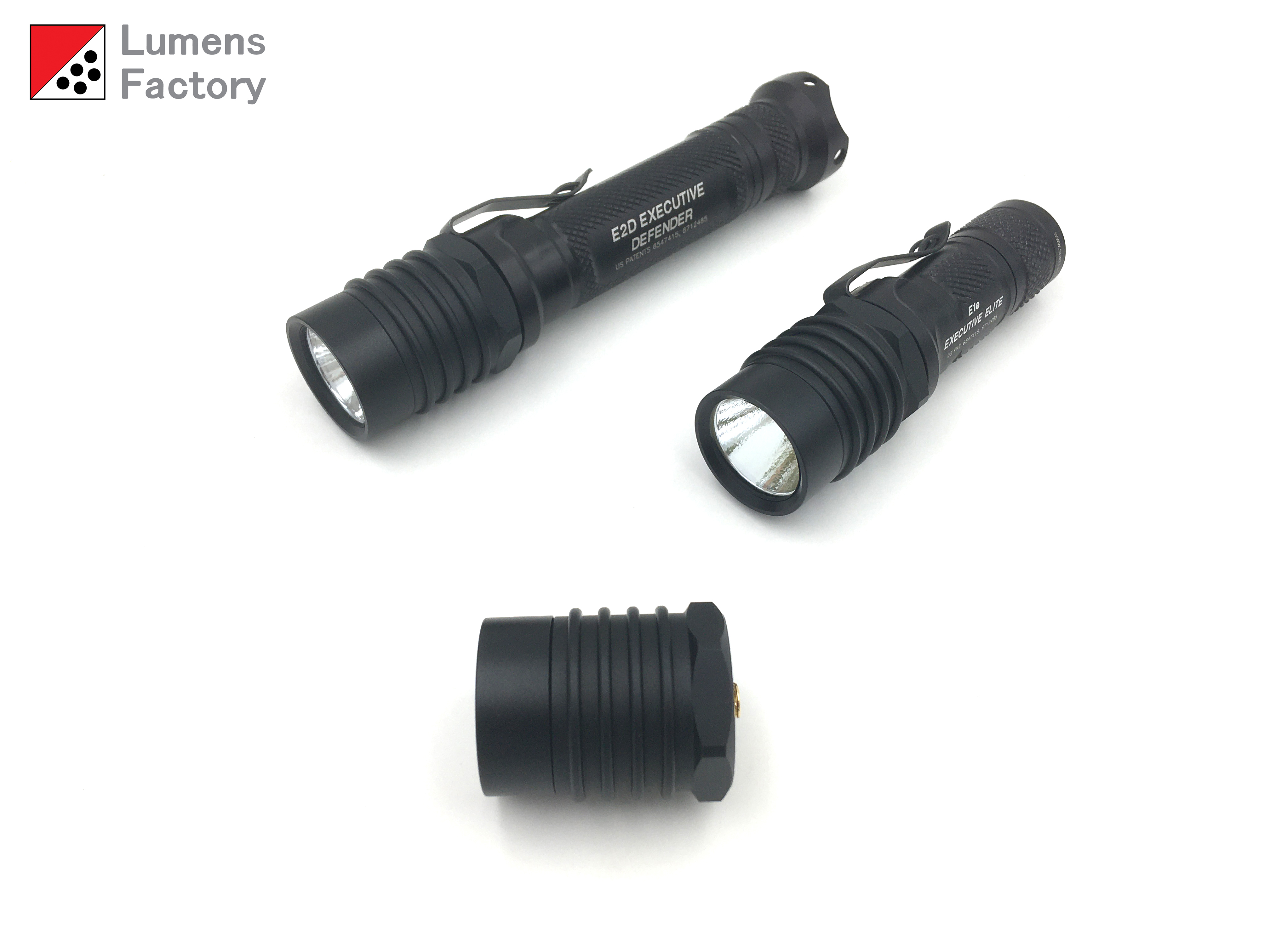

Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection

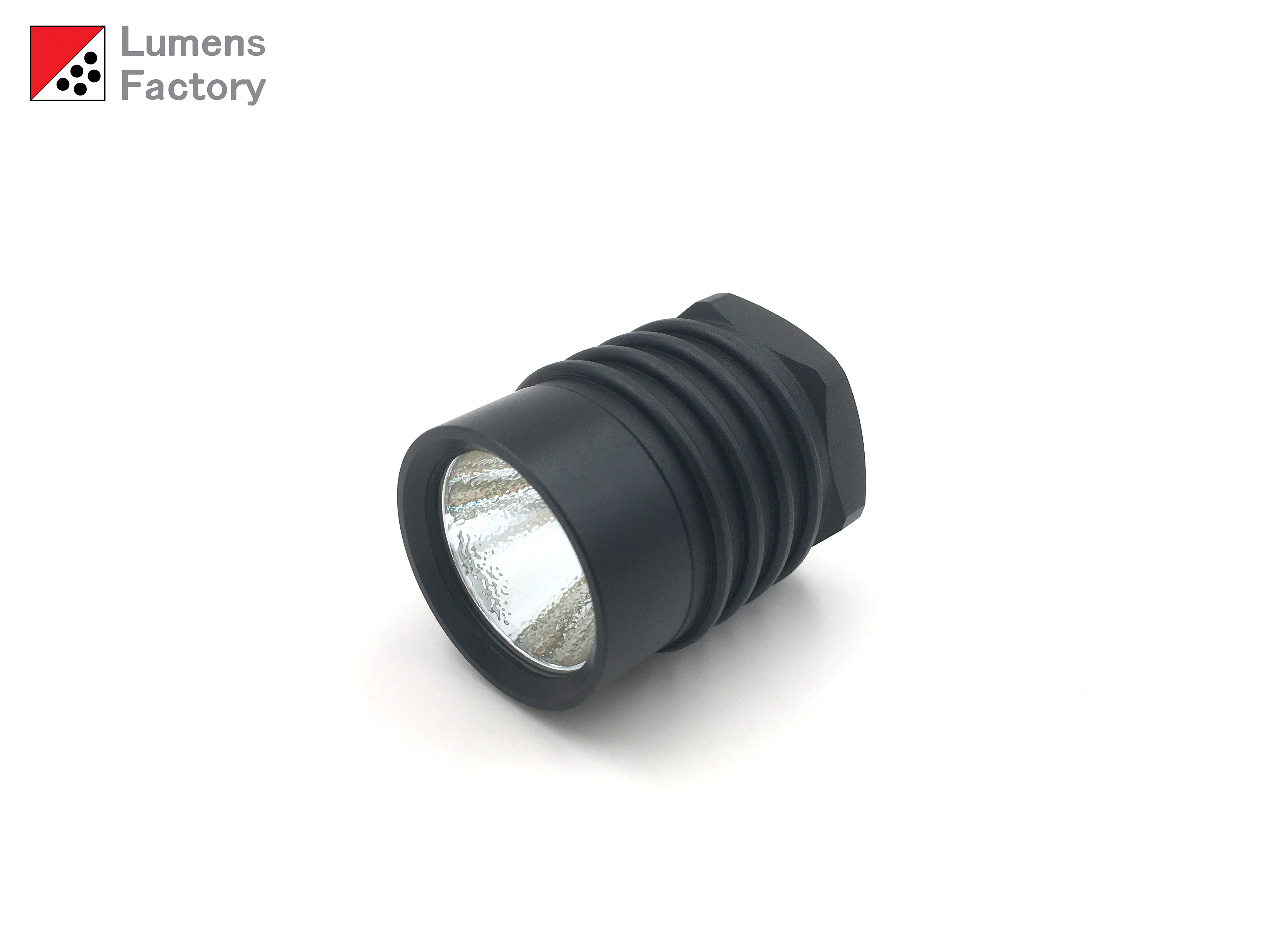

-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit

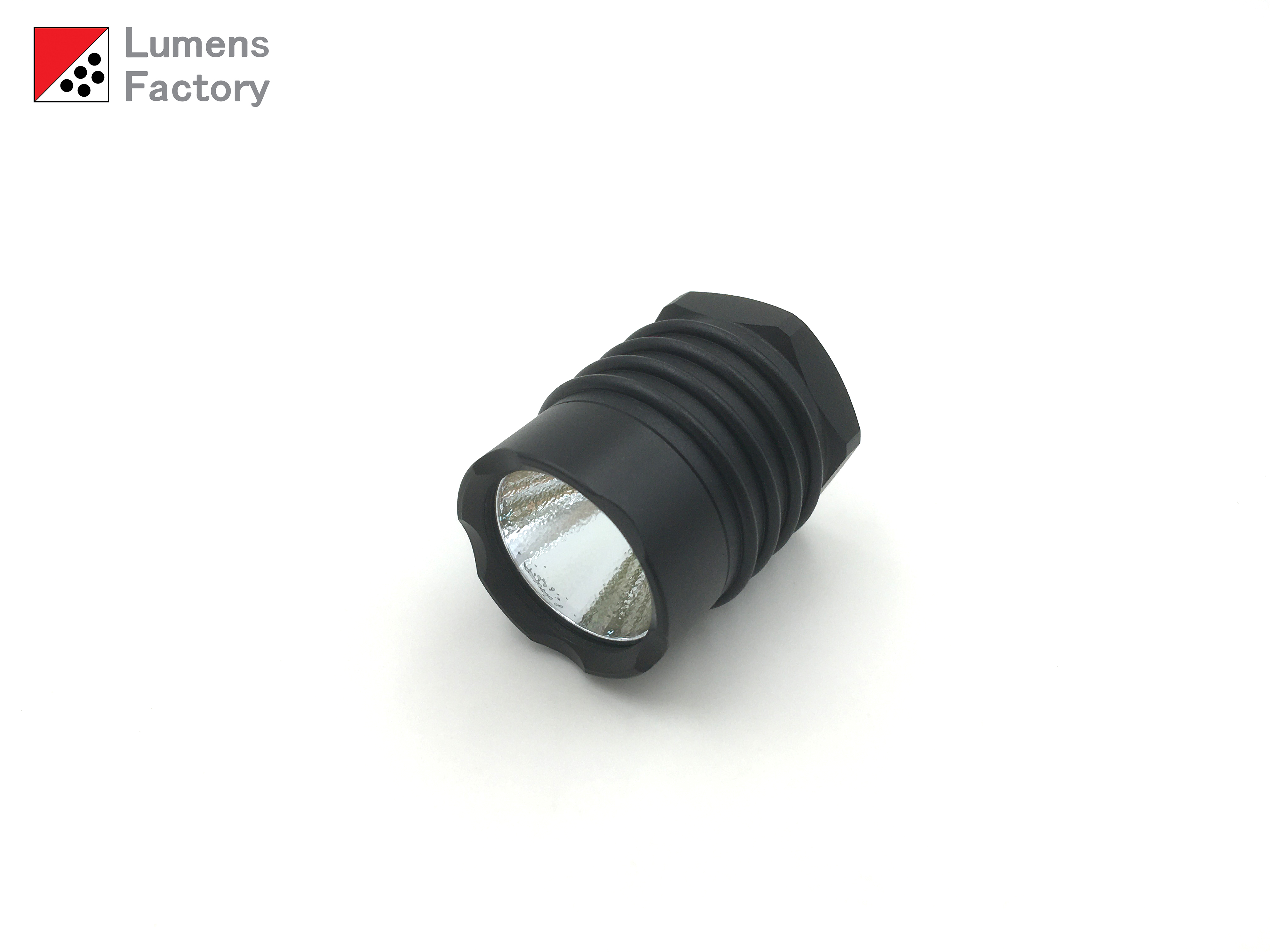

-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Cren Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection

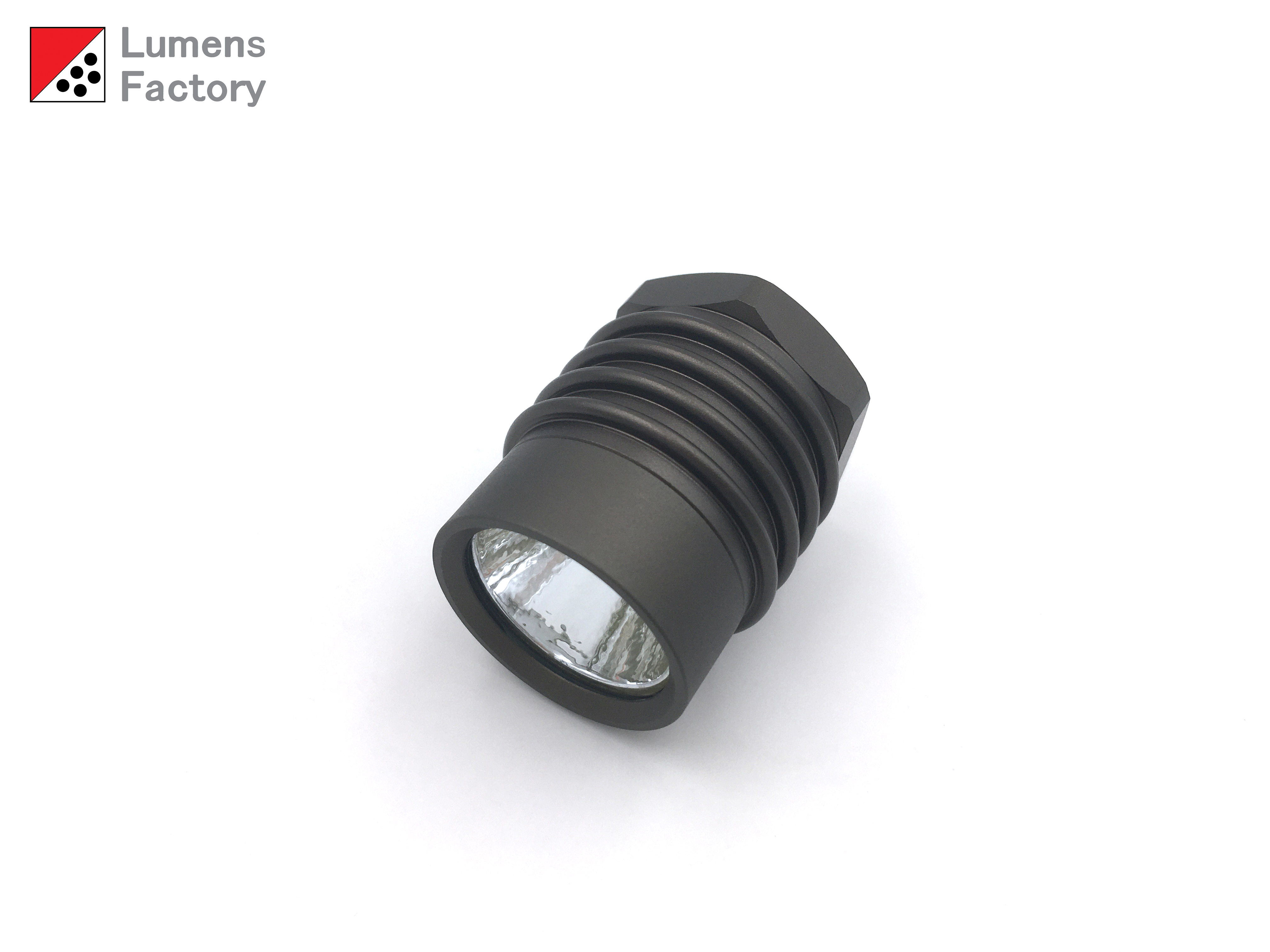

-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 7: (Cool White) Updated to Nichia 519A LED, Upgraded to 1600mA Driver

-High Output Nichia 519A LED (Max Output 850 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)

Generation 5.5: (Neutral White) Nichia 319A LED, Upgraded to 1600mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series KL1 Style LED Head Unit
(2.7V-4.5V Regulated Input, 3 Mode Version)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, Upgraded to 1600mA Driver

-High Output Nichia 519A R9080 LED (Max Output 800 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 1600mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B using 1 x RCR123 (16340) Rechargeable

E2L AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 1 x 17670 Rechargeable Cell


Runtime:

On 100% Output
1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
