8X-LED LED Module for Surefire 8X, 8NX, 8AX (1 Mode)
US$48.50

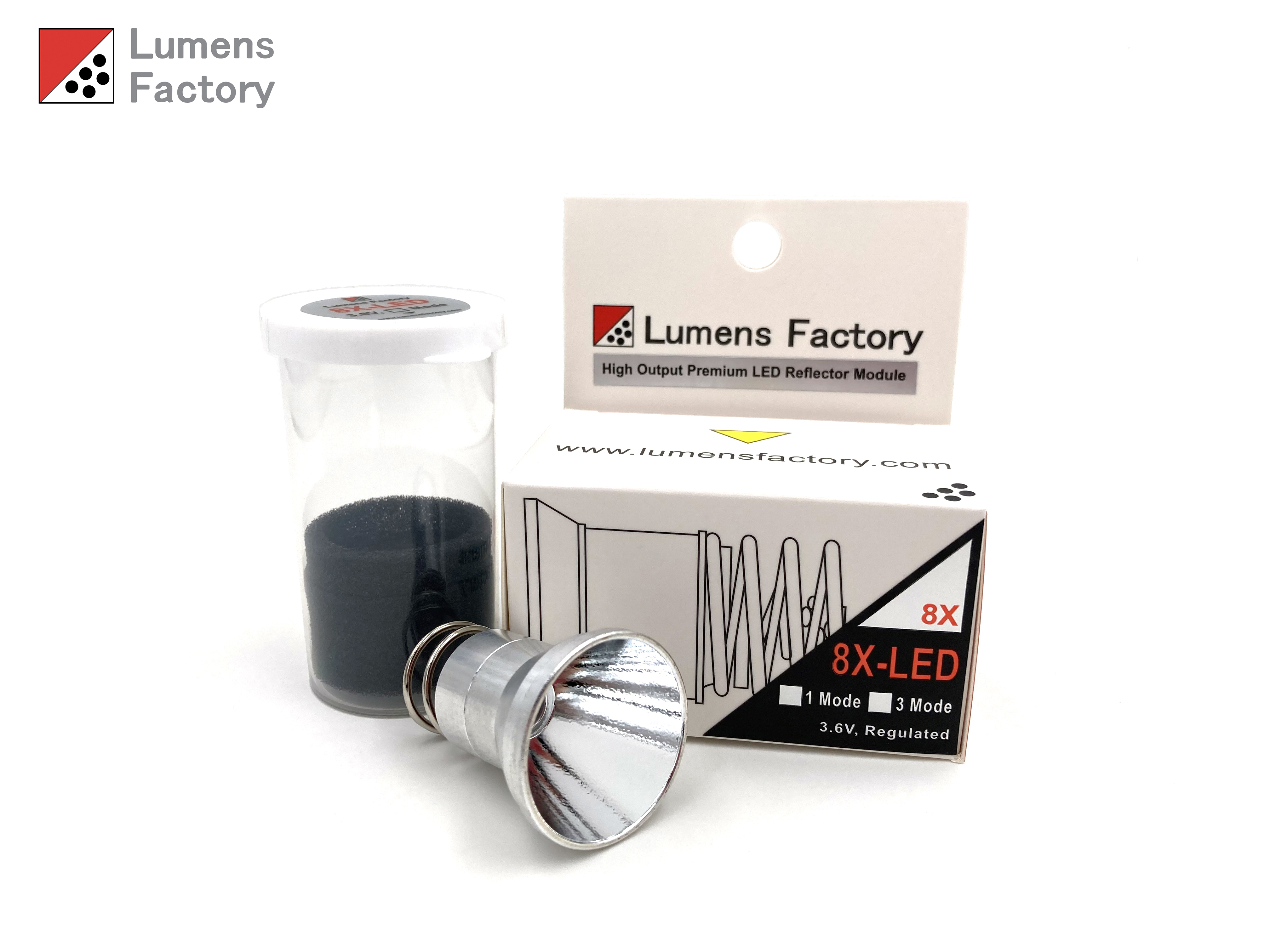

8X-LED High Output Single Mode LED Reflector Module
Generation 3
(3.6V Regulated Input)

Generation 2 improvements:
1. New driver circuit board that is optimized for Surefire B90 and 18650 Rechargeable Battery
2. New contact springs that are custom made for this module that provide the best contact and press feel that are far superior than the Gen 1 version
3. New aluminum housing with improved fitment

Generation 3: Updated to Nichia 519A LED from Nichia 319A resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 850 Lumens)
-3.6V Regulated Input, Optimized for Surefire B90 Battery and 3.7V 18650 Rechargeable Battery
-Maximum Current Output at 1600mA
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Orange Peel Reflector Module
-Every Lamp Assembly is Pre-Focused for the Ultimate Spot

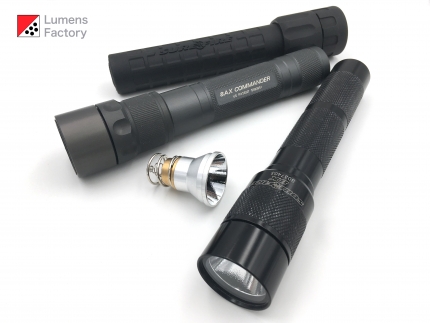

Compatible with:

Surefire
8X
8NX
8AX Commander


Runtime:

1 x Surefire B90 NI-CD Rechargeable Battery: ~80 Mins
1 x 3.7V 18650 Rechargeble with 18650 Battery Adapter: ~120 Mins
