E Series KL4 Style Head Unit (Gen 7), 1 Mode (3.7V-9V), HA3 Natural/HA3 Black

US$68.50
Due to some sudden family matters, we will be closing the Sales Office from February 18th, 2024 to February 24th, 2024.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

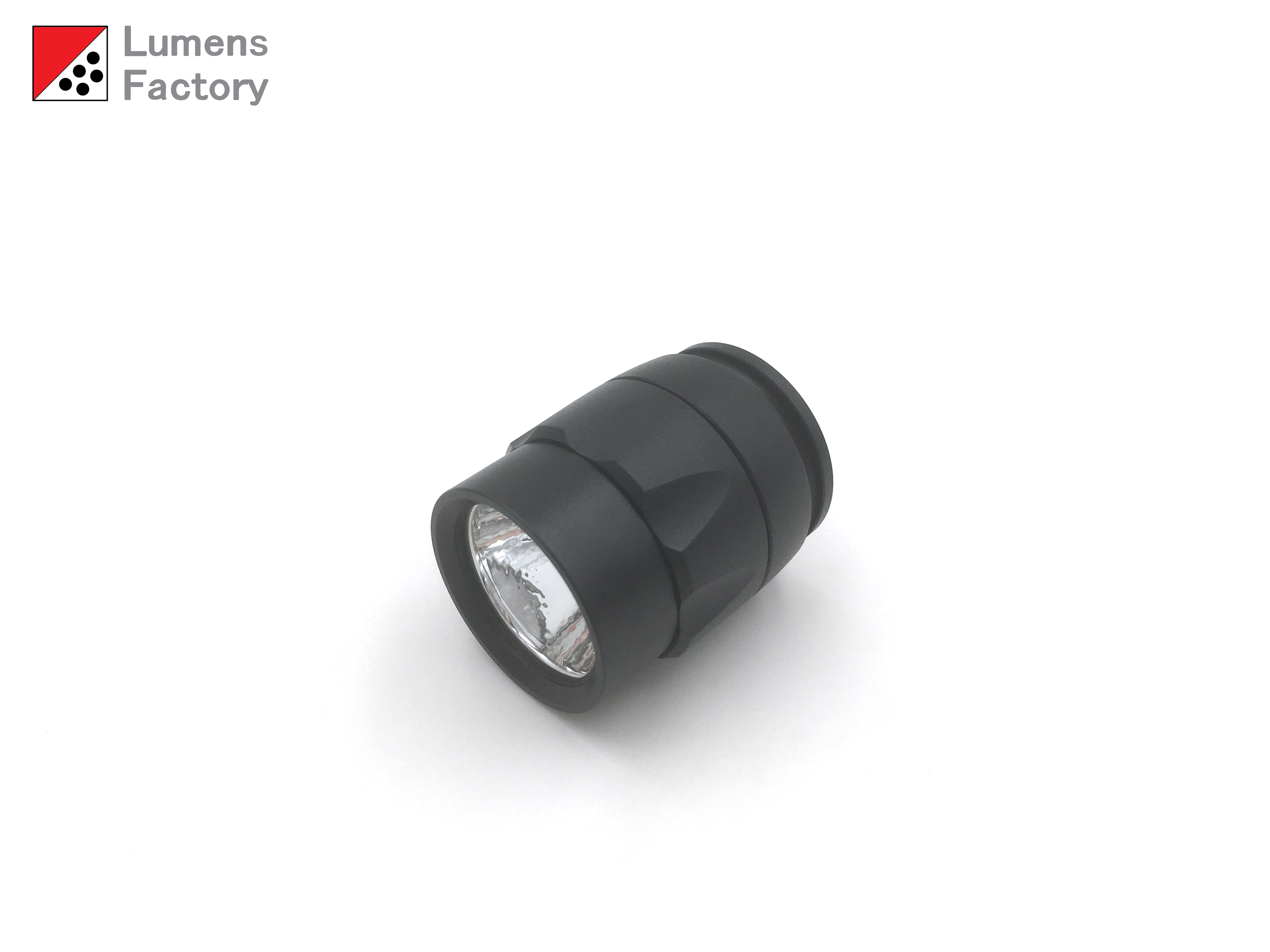

E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, 2000mA Driver
Generation 5: (Neutral White) Nichia 319A LED, 2000mA Driver
Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A or Nichia 319A LED (Max Output 850-1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White, Neutral White 80-CRI or Warm White 90+CRI LEDs Available
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black or Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E2L AA, M600 AA using 2 x 14500 Rechargeable

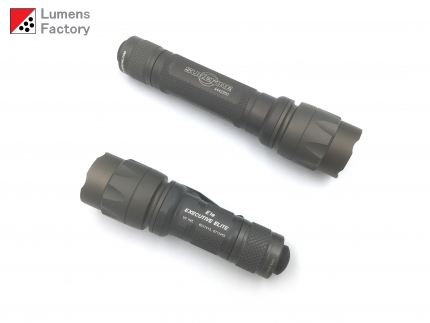

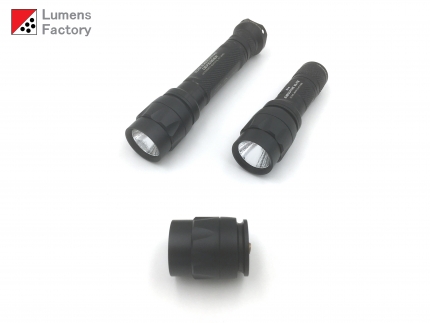

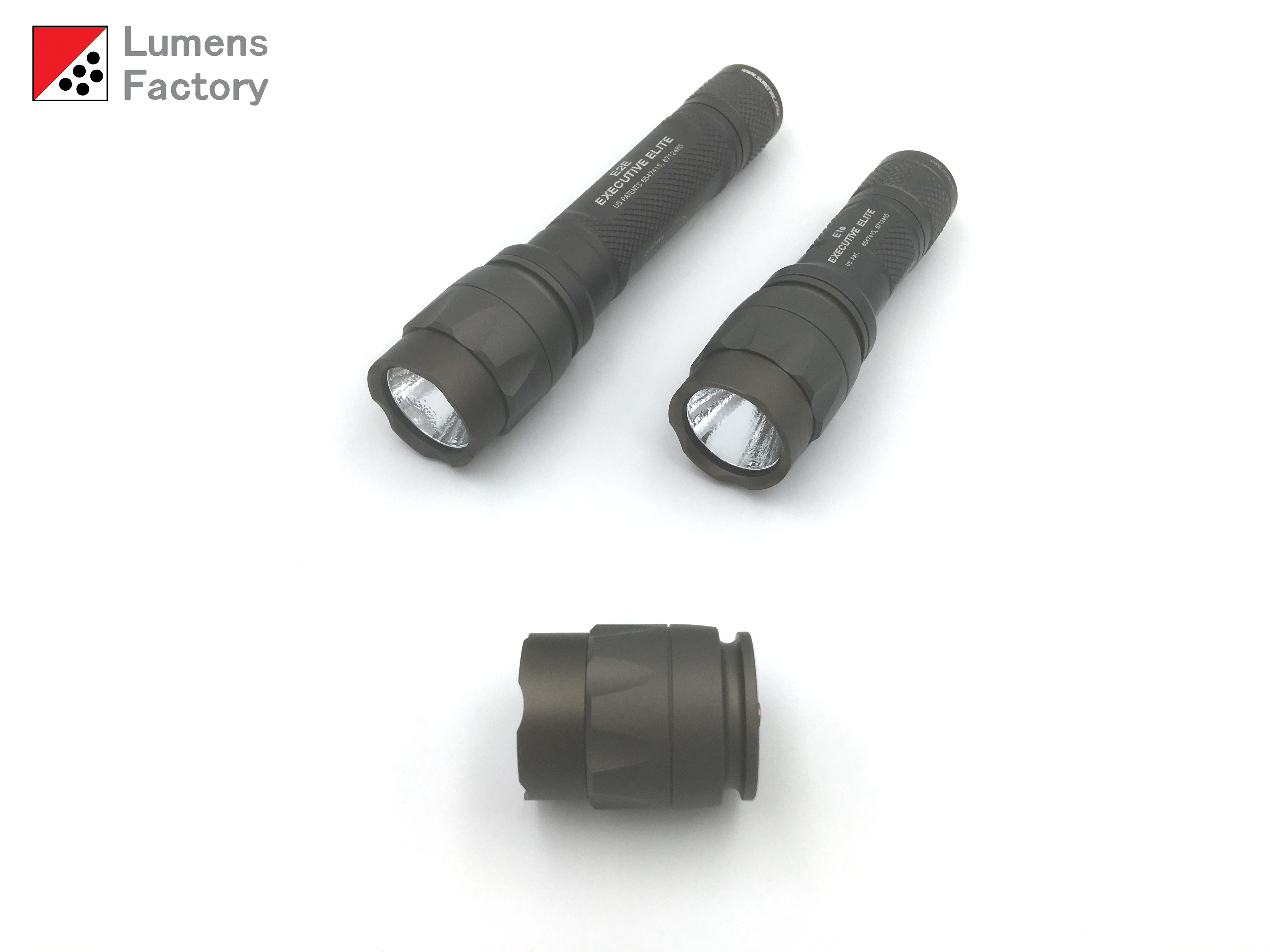

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

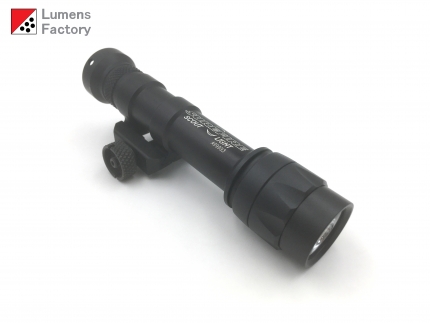

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka
M600 Series


Runtime:

***If you are planning to use a 1 cell battery setup that is less than a 16650 (such as a 14500 or 16340 or 18350), please buy the 2.7V-4.5V model instead of this module.***
1 x 16650 (2500mAh): ~1.5 hour
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, 2000mA Driver

-High Output Nichia 519A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 5: (Neutral White) Nichia 319A LED, 2000mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 850 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A R9080 LED (Max Output 850 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, 2000mA Driver

-High Output Nichia 519A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit

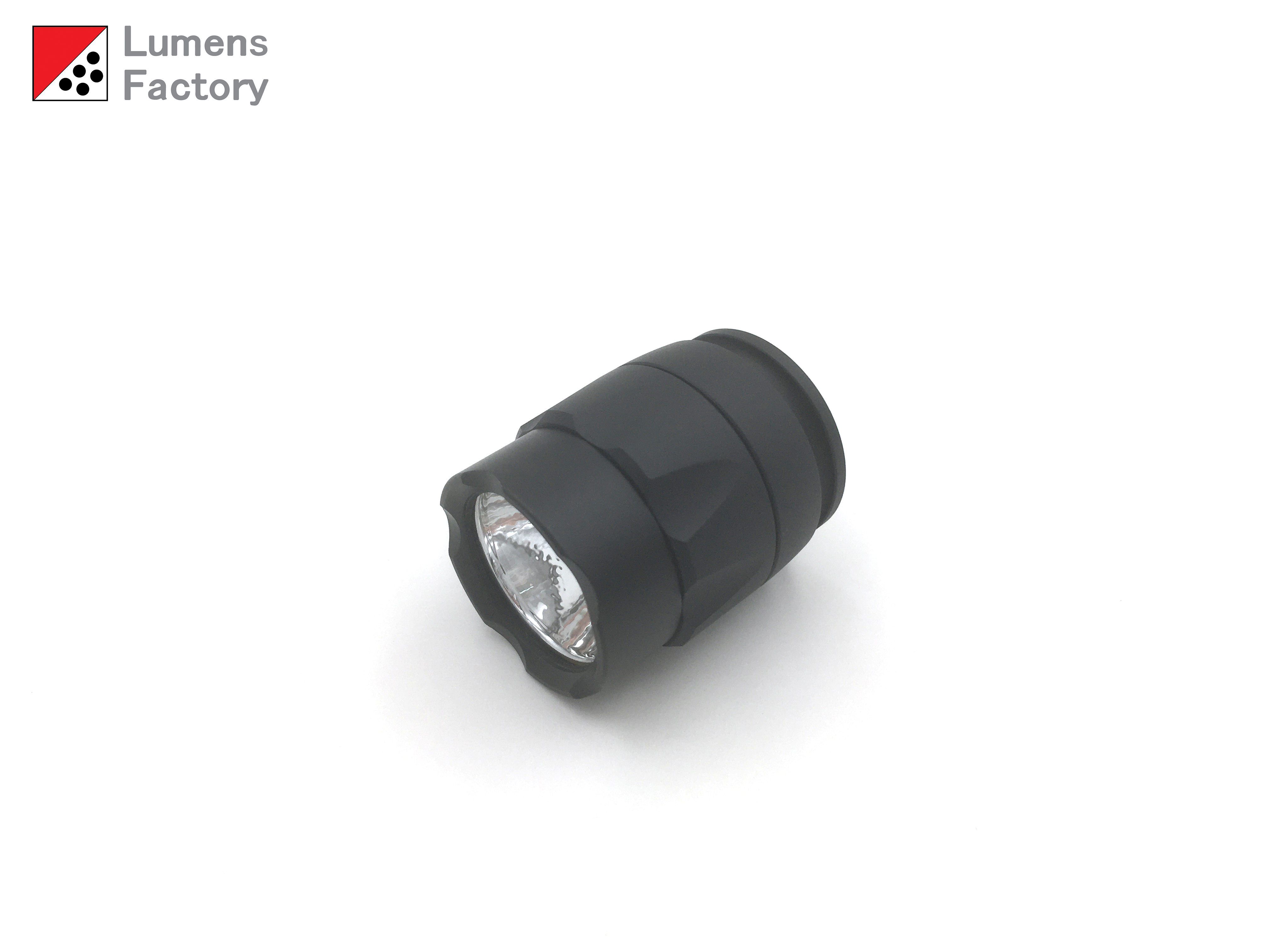

-Aluminum HA3 Anodized Cren Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 5: (Neutral White) Nichia 319A LED, 2000mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 850 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Updated to Nichia 519A R9080 LED (Max Output 850 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, 2000mA Driver

-High Output Nichia 519A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection

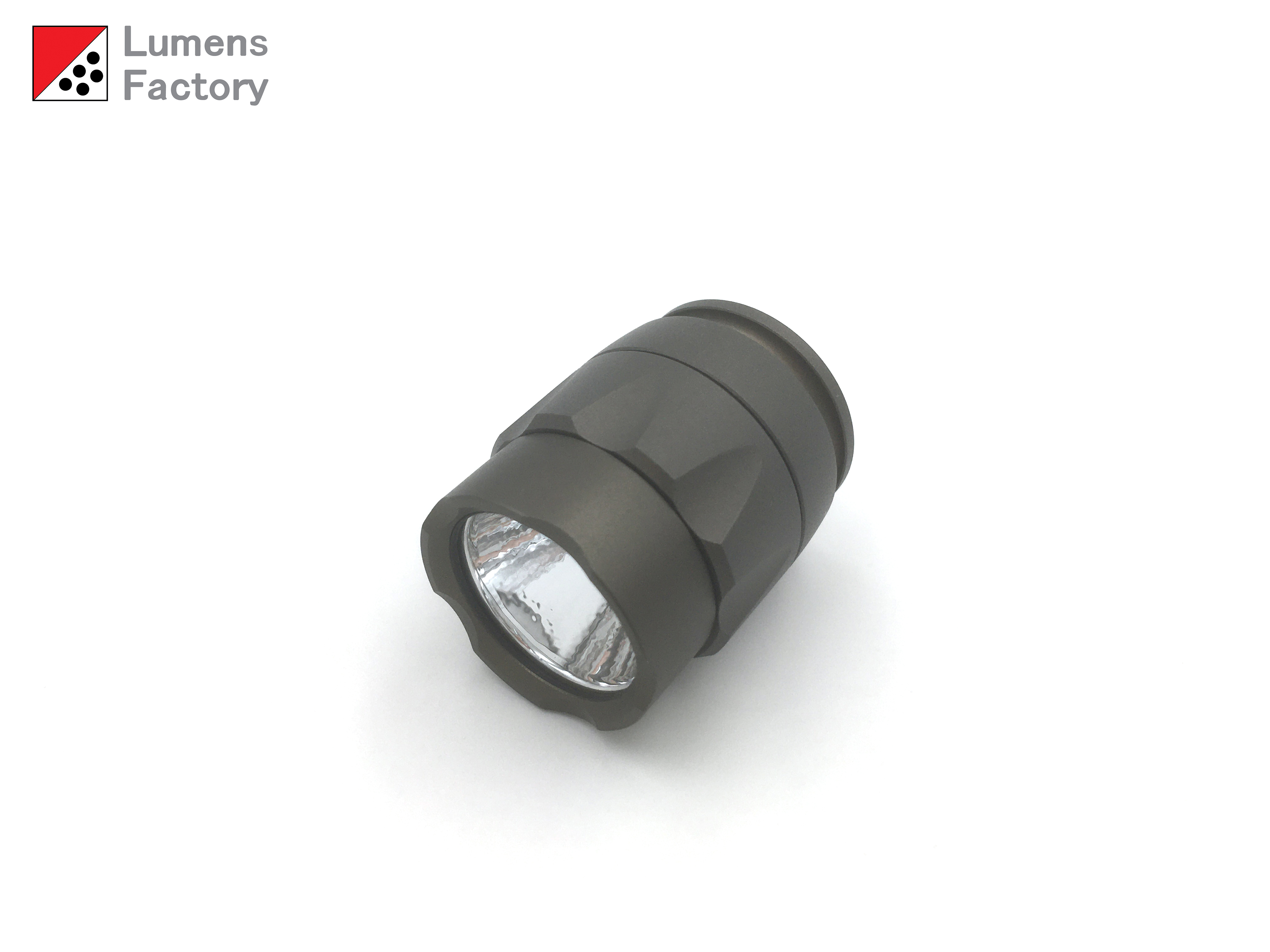

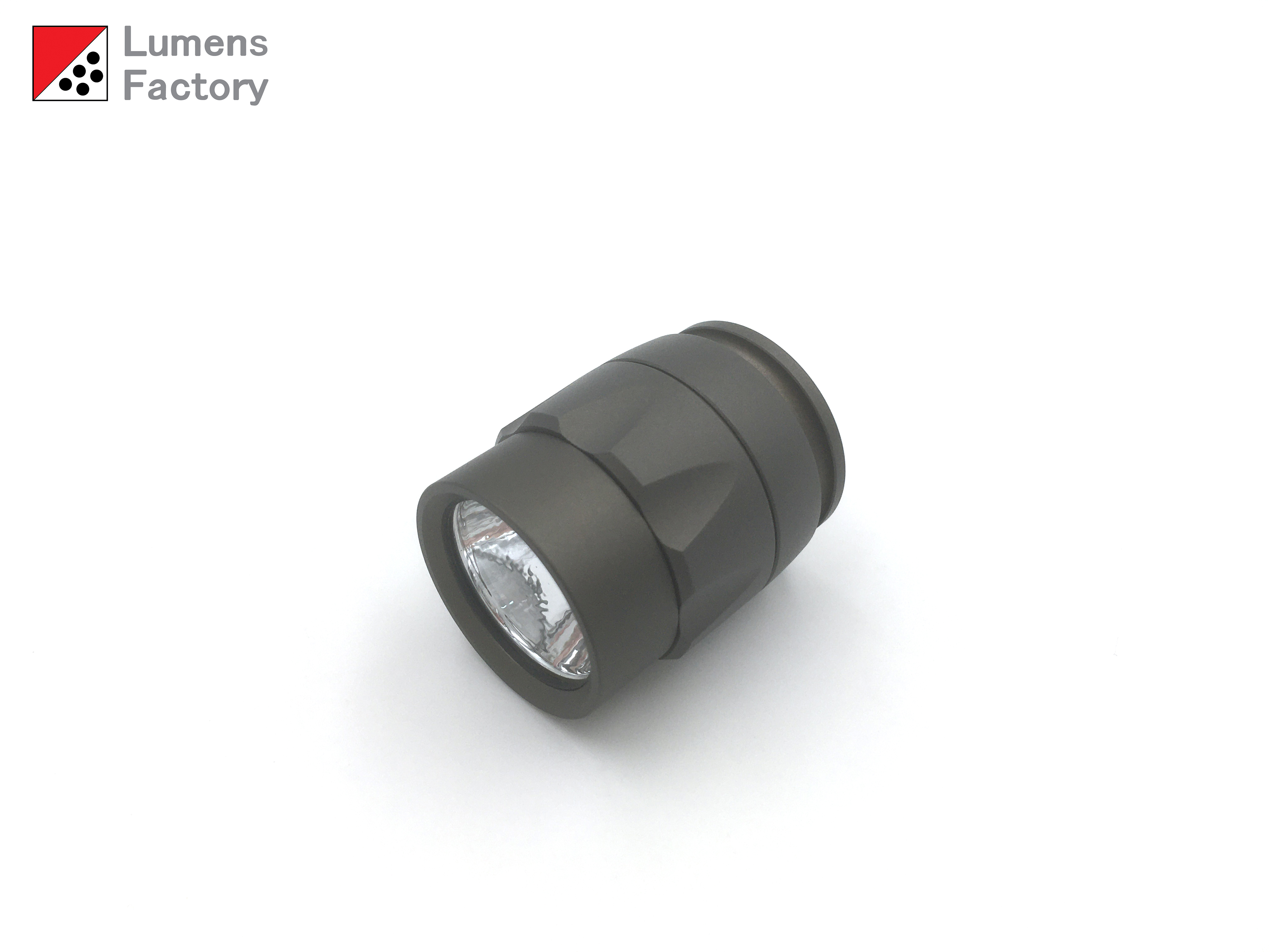

-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 5: (Neutral White) Nichia 319A LED, 2000mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 850 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-HA3 Black Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A R9080 LED (Max Output 850 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 7: (Cool White) Updated to Nichia 519A LED, 2000mA Driver

-High Output Nichia 519A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White, Cool Colour Temperature (5700K)
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

Generation 5: (Neutral White) Nichia 319A LED, 2000mA Driver

-High Output Nichia 319A Neutral White 80-CRI LED (Max Output 850 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Neutral White, Perfect Colour Temperature (4000K)
-80-CRI, High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series KL4 Style LED Head Unit
(3.7V-9V Regulated Input, Constant Output)
Warm Tint 90+CRI Version

Generation 7: (Warm White) Updated to Nichia 519A R9080 LED, 2000mA Driver

-High Output Nichia 519A R9080 LED (Max Output 850 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Warm White, Warm Colour Temperature (3000K)
-90+CRI, Ultra High Colour Rendition
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Unique Reflector Design
-Precision Machined Aluminum Reflector
-High Temperature Resistant Light Orange Peel Coating
-Every Reflector Module is Pre-Focused for the Ultimate Spot


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
