D26-LED Triple LED Module (Gen 2), 2.7V-4.5V (Single Battery Setups, 1 Mode)

US$58.00
Due to a sudden influx of bulk orders, retail sales will be temporarily stopped until April 30th, 2024.
Shopping Cart at the Online Shop will cease to function until then.
Sorry for any inconvenience caused.
Thank you for your support.

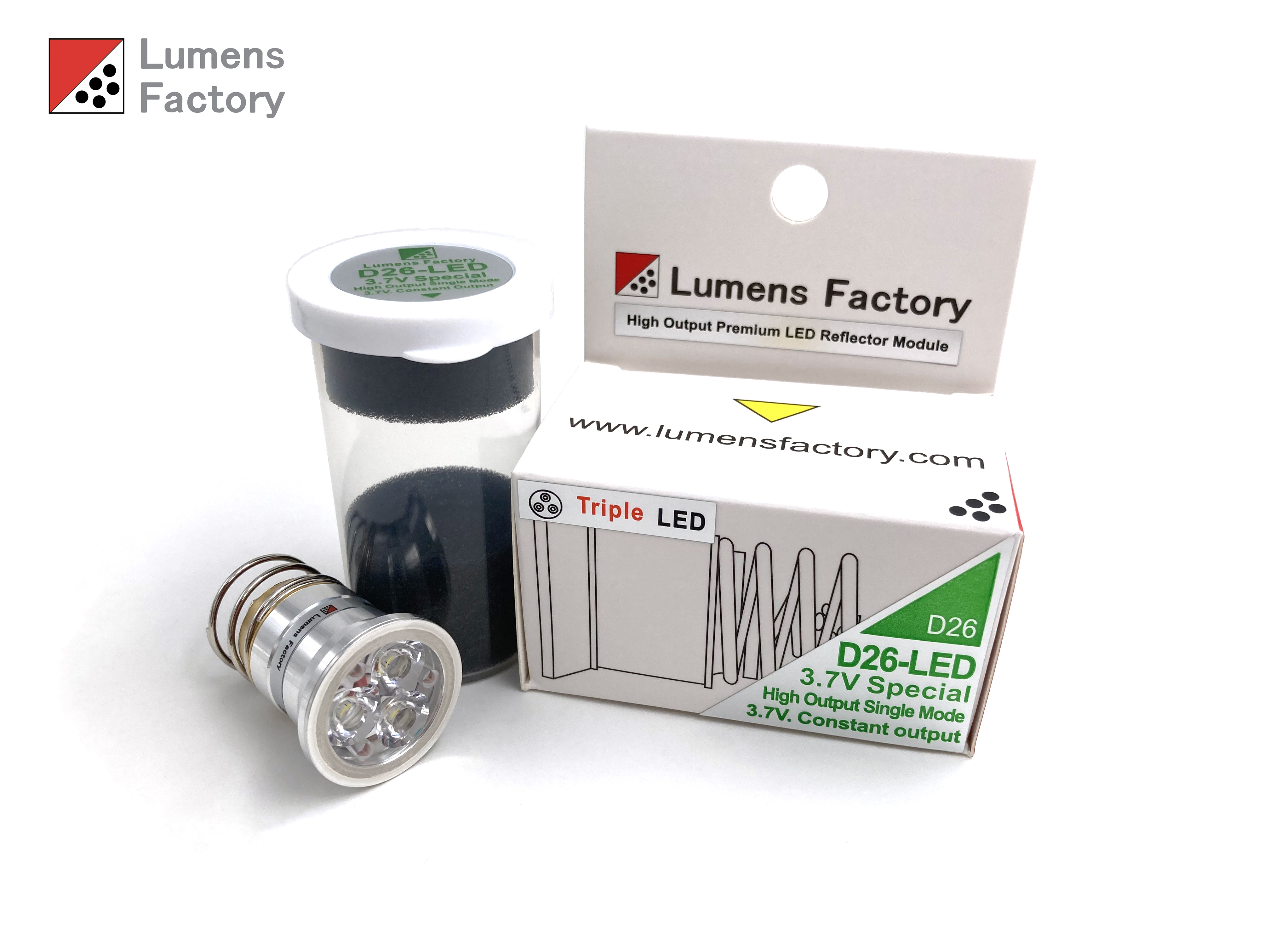

D26-LED Triple LED Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Triple Nichia 519A or Nichia 319A or Cree XP-L LED
(Max Output from 900 to 1075 Lumens depending on model)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

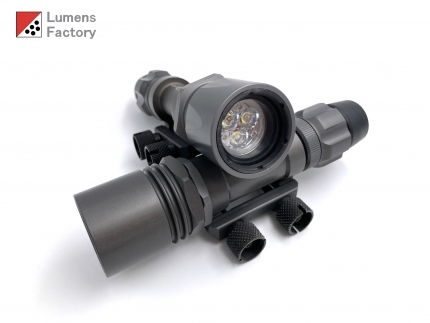

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire

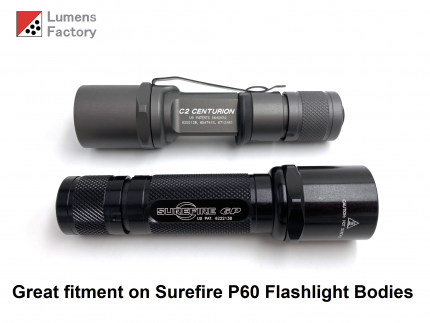

G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)

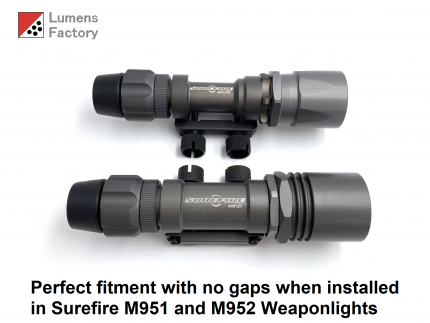

M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Triple LED Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Triple Nichia 519A LED
-Max Output 1075 Lumens
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Triple LED Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

-High Output Triple Nichia 319A LED
-Max Output 950 Lumens
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Triple LED Single Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

-High Output Triple Cree XP-L LED
-Max Output 900 Lumens
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Maximum Current Output at 1600mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)
M951, M952 Weaponlights

G&P
G60 Series

Pila
GL2

Runtime:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
