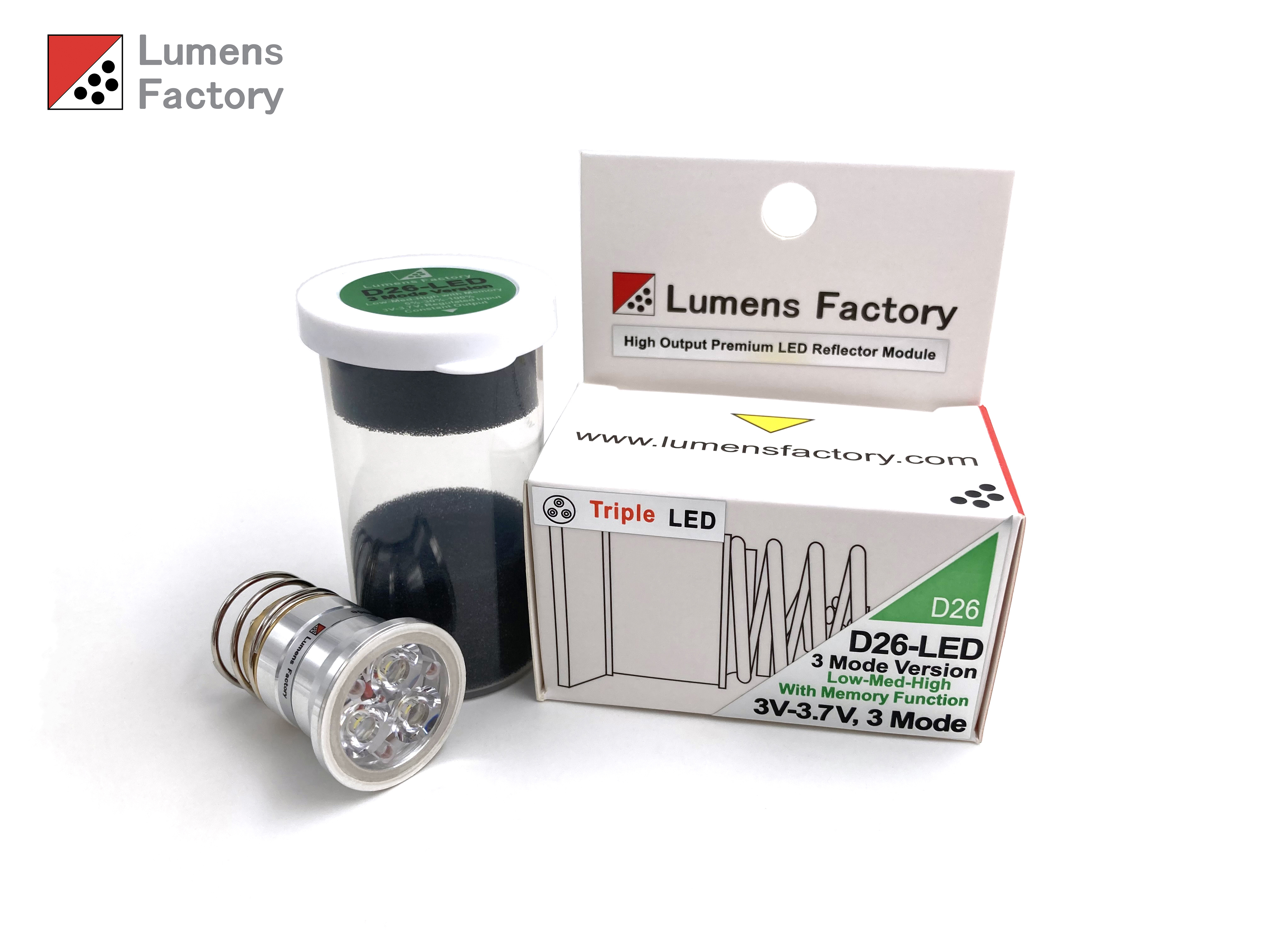

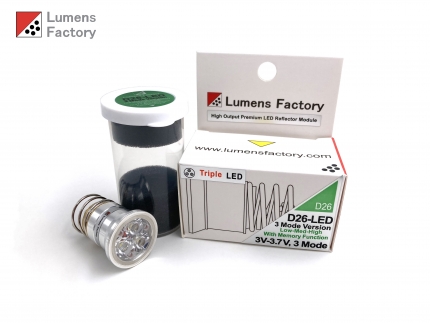

D26-LED Triple LED Module (Gen 2), 2.7V-4.5V (Single Battery Setups, 3 Mode (5%-30%-100%))

US$58.00
The Payment Gateway is being overhauled at the moment.
It will be back online at September 25th, 2024.

Shopping Cart at the Online Shop will cease to function until then because the checkout function is offline.

Sorry for any inconvenience caused.
Thank you for your support.
D26-LED Triple LED 3 Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Triple Nichia 519A or Nichia 319A or XPL LED
(Max Output from 900 to 1075 Lumens depending on model)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***

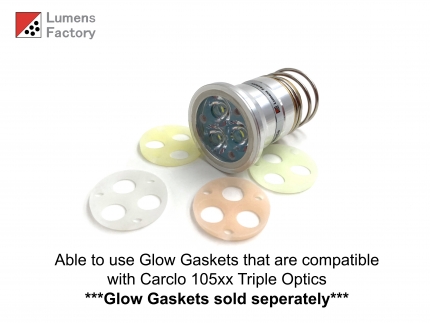

Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"

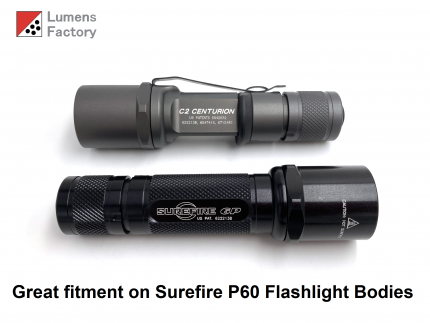

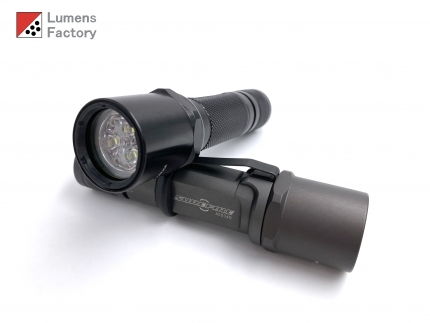

Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2

G&P
G60 Series

Pila
GL2

Runtime on 100%:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Triple LED 3 Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Triple Nichia 519A LED
-Max Output 1075 Lumens
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2

G&P
G60 Series

Pila
GL2

Runtime on 100%:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Triple LED 3 Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

-High Output Triple Nichia 319A LED
-Max Output 950 Lumens
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Neutral Tint (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2

G&P
G60 Series

Pila
GL2

Runtime on 100%:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Triple LED 3 Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

-High Output Triple XPL LED
-Max Output 900 Lumens
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2

G&P
G60 Series

Pila
GL2

Runtime on 100%:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
