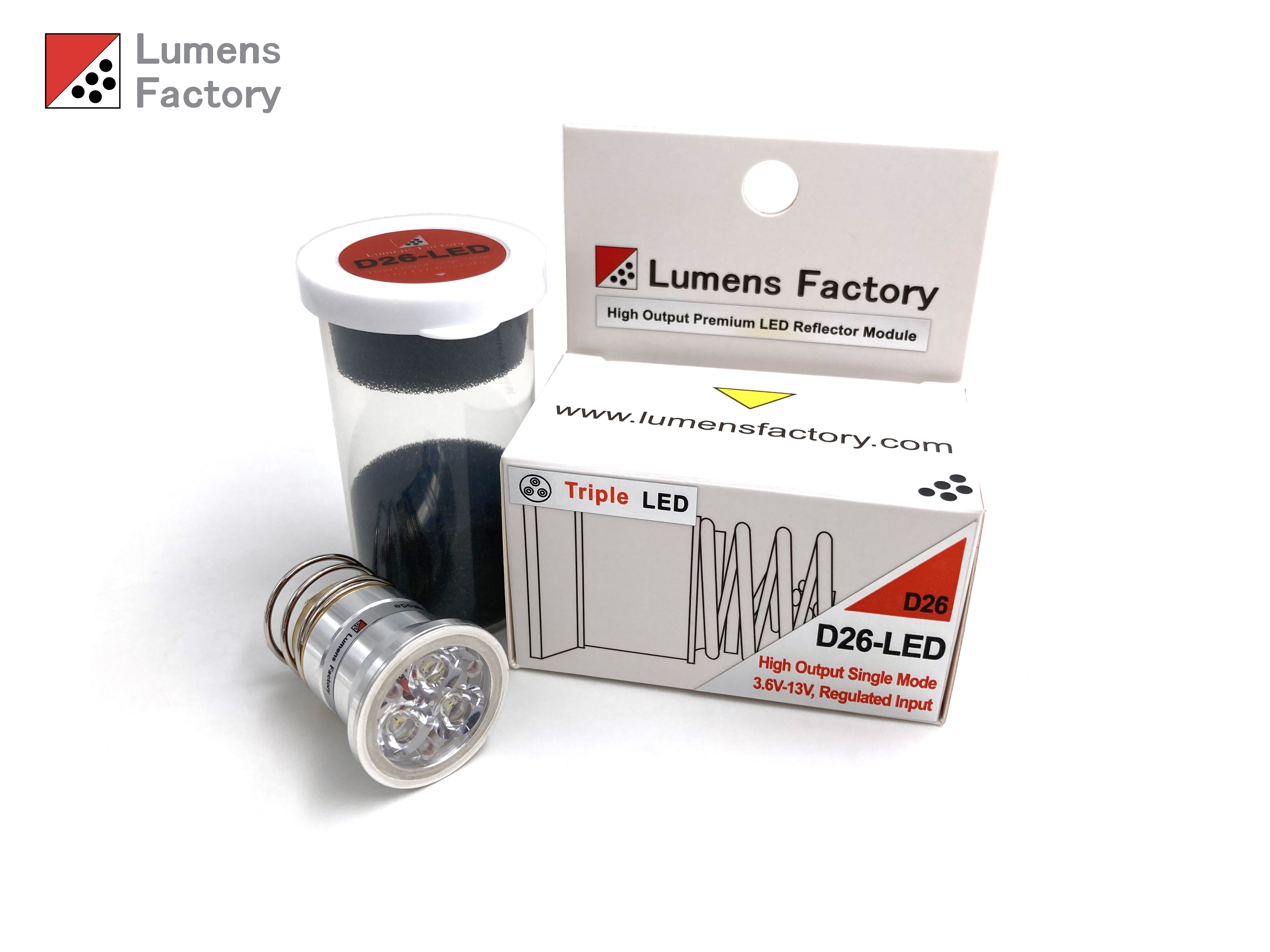

D26-LED Triple Single Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A or Nichia 319A or Cree XP-L LED
(Max Output from 1000 to 1200 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-Maximum Current Output at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***New Mil-Spec design, no gaps when fitted on Surefire Weaponlights***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"

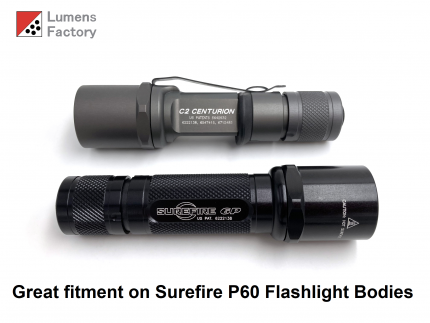

Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2
617, 621, 628, 636, 660 Weaponlights (Incandescent Models)

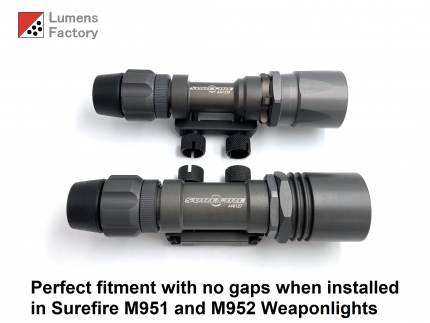

M951, M952 Weaponlights

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

***If you are planning to use a 1 cell battery setup that is less than a 16650 (such as a 14500 or 16340 or 18350), please buy the 2.7V-4.5V model instead of this module.***
1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
