D26-LED Triple LED Module (Gen 2), 3.6V-13V (3 Mode (5%-30%-100%))

US$58.00
We will be closing the Sales Office from September 18th, 2023 to September 26th, 2023.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

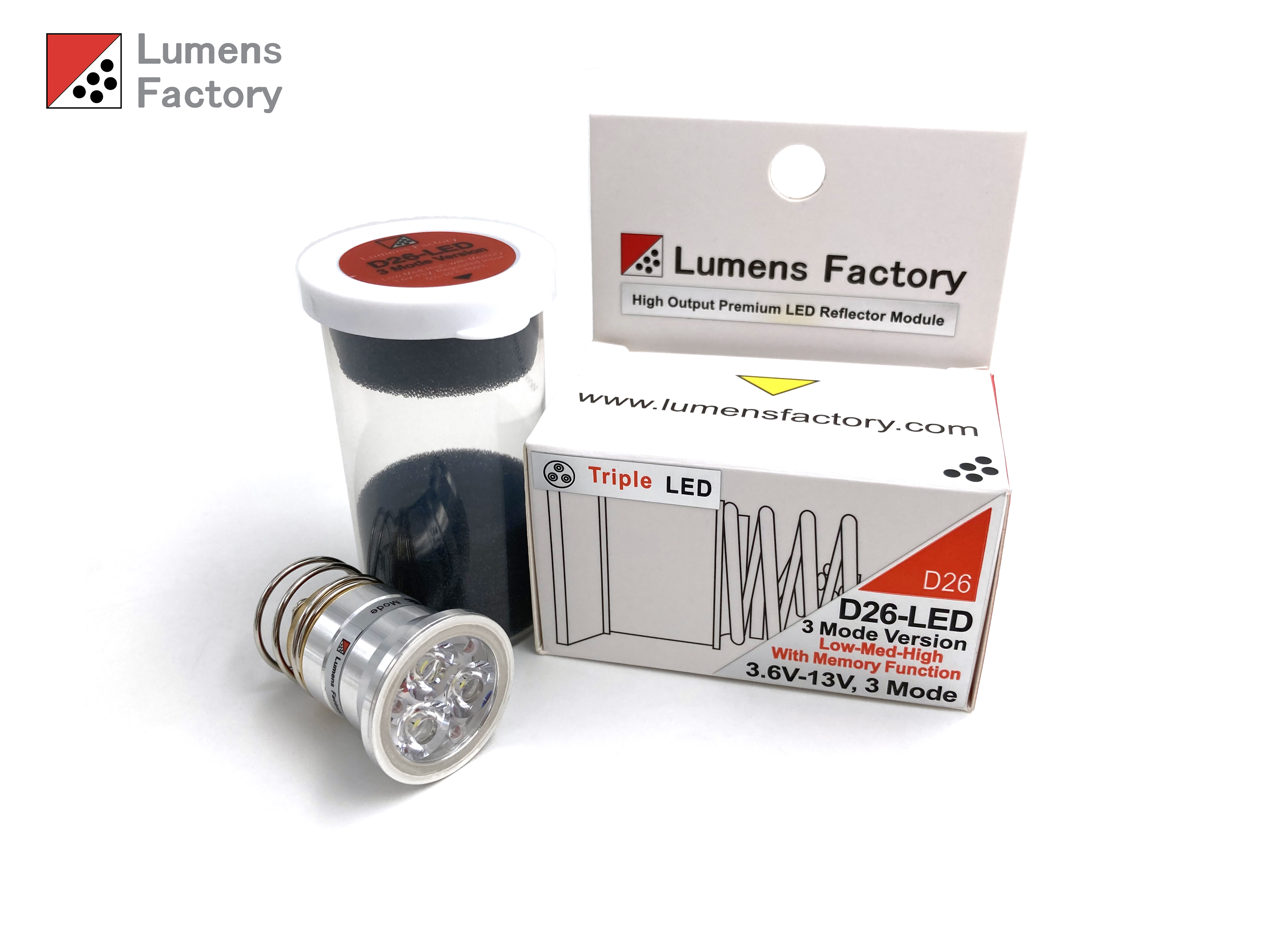

D26-LED Triple LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A or Nichia 319A or Cree XP-L LED
(Max Output from 1000 to 1200 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***

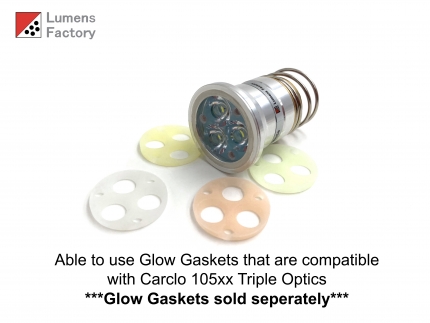

Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"

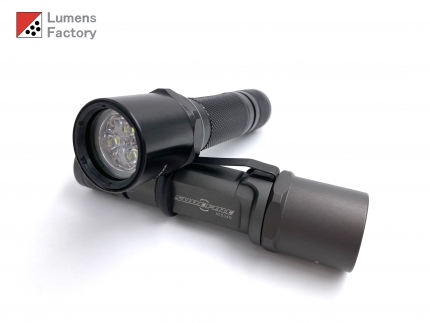

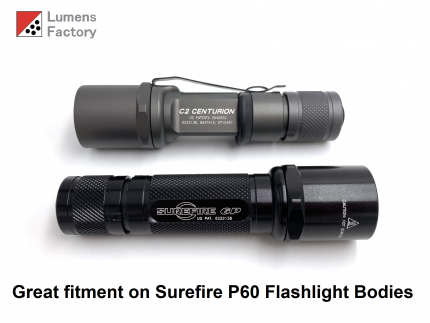

Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED Triple LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED
-Max Output 1200 Lumens
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED Triple LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

-High Output Nichia 319A LED
-Max Output 1100 Lumens
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Neutral Tint (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED Triple LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

-High Output Cree XP-L LED
-Max Output 1000 Lumens
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
