TRIPLE LED Module (Gen 2) for Pelican M3, M6 (3.6-13V, 3 Mode (5%-30%-100%))
Product Option
-- Select Option--
Nichia 519A Cool White
Nichia 319A Neutral White 80-CRI
CREE XP-L Warm White 90-CRI
PRICE :
US$58.00
We will be closing the Sales Office from September 18th, 2023 to September 26th, 2023.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

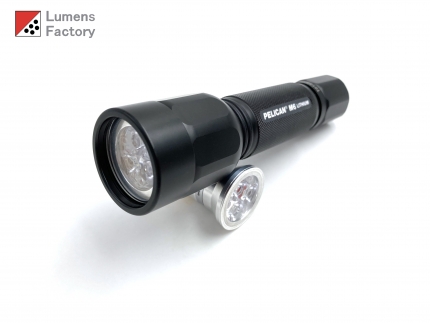

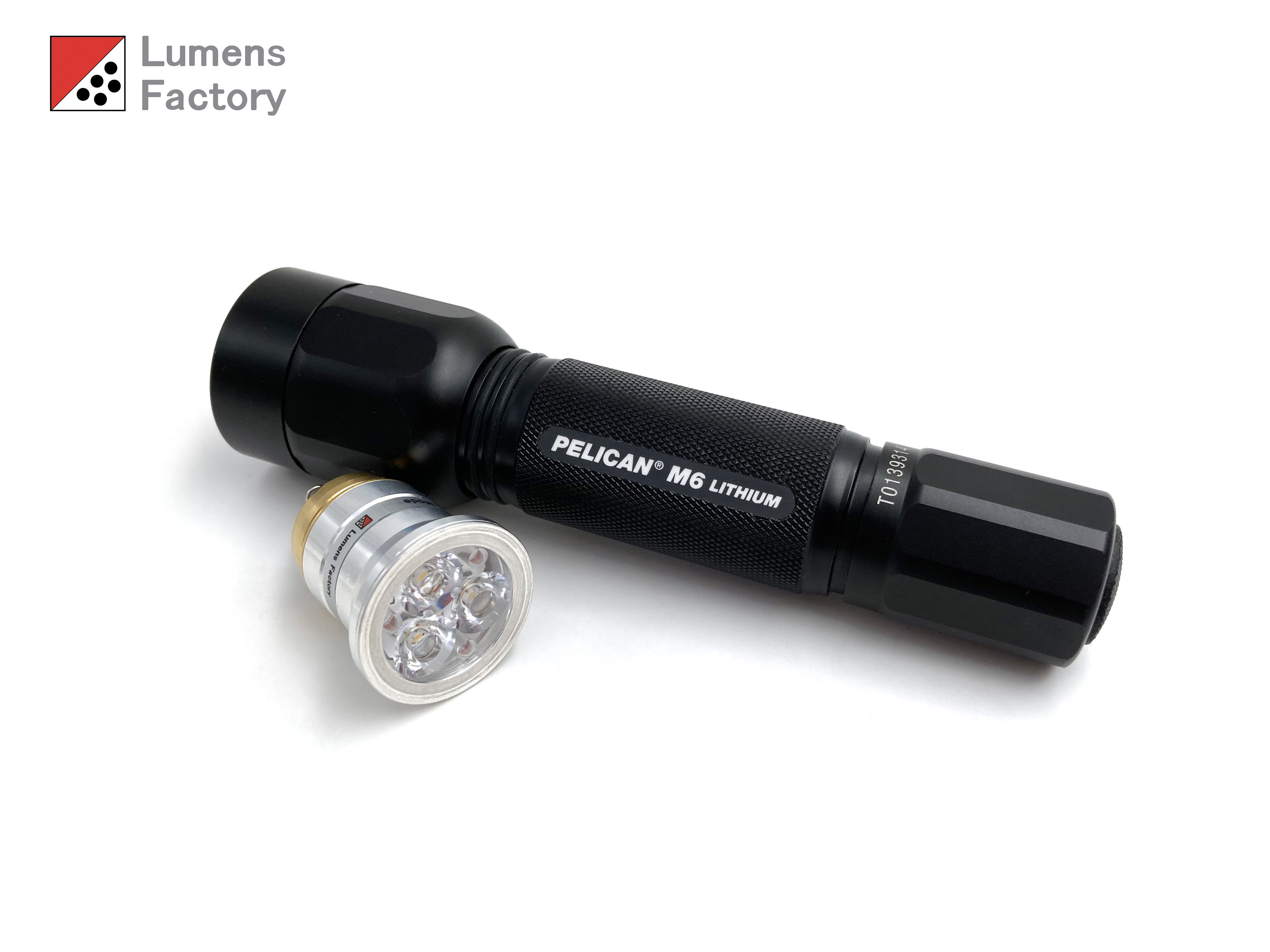

***This model is specially made for use on the Pelican M6/M3 lights.
Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
D26-LED Triple LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)
Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)
-High Output Nichia 519A or Nichia 319A or Cree XP-L LED
(Max Output from 1000 to 1200 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base
Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.
***This model is specially made for use on the Pelican M6/M3 lights.
Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
Compatible with:
Pelican M3 3370 (Incandescent)
Pelican M6 2320 (Incandescent)
Pelican M6 2330 (LED)
Pelican M6 2390 (LED)
Runtime (at 100%):
Pelican M6:
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
Pelican M3:
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
***This model is specially made for use on the Pelican M6/M3 lights.
Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
D26-LED Triple LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)
Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)
-High Output Nichia 519A LED
(Max Output 1200 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base
Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.
***This model is specially made for use on the Pelican M6/M3 lights.
Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
Compatible with:
Pelican M3 3370 (Incandescent)
Pelican M6 2320 (Incandescent)
Pelican M6 2330 (LED)
Pelican M6 2390 (LED)
Runtime (at 100%):
Pelican M6:
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
Pelican M3:
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
***This model is specially made for use on the Pelican M6/M3 lights.
Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
D26-LED Triple LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)
-High Output Nichia 319A LED
(Max Output 1100 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Neutral Tint (4000K)
-High Colour Rendition 80-CRI
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base
Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.
***This model is specially made for use on the Pelican M6/M3 lights.
Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
Compatible with:
Pelican M3 3370 (Incandescent)
Pelican M6 2320 (Incandescent)
Pelican M6 2330 (LED)
Pelican M6 2390 (LED)
Runtime (at 100%):
Pelican M6:
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
Pelican M3:
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
***This model is specially made for use on the Pelican M6/M3 lights.
Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
D26-LED Triple LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)
-High Output Cree XP-L LED
(Max Output 1000 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Warm White (2600-3200K)
-Ultra High Colour Rendition 90-CRI
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base
Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.
***This model is specially made for use on the Pelican M6/M3 lights.
Featuring a newly designed brass base and springs that are tailor made for the Pelican lights to ensure perfect fitment and contact.***
Compatible with:
Pelican M3 3370 (Incandescent)
Pelican M6 2320 (Incandescent)
Pelican M6 2330 (LED)
Pelican M6 2390 (LED)
Runtime (at 100%):
Pelican M6:
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
Pelican M3:
3 x CR123a Primaries: ~3 hours
3 x RCR123 (750mAh): ~3 Hours
2 x 17500 (1100mAh): ~2.5 hours
