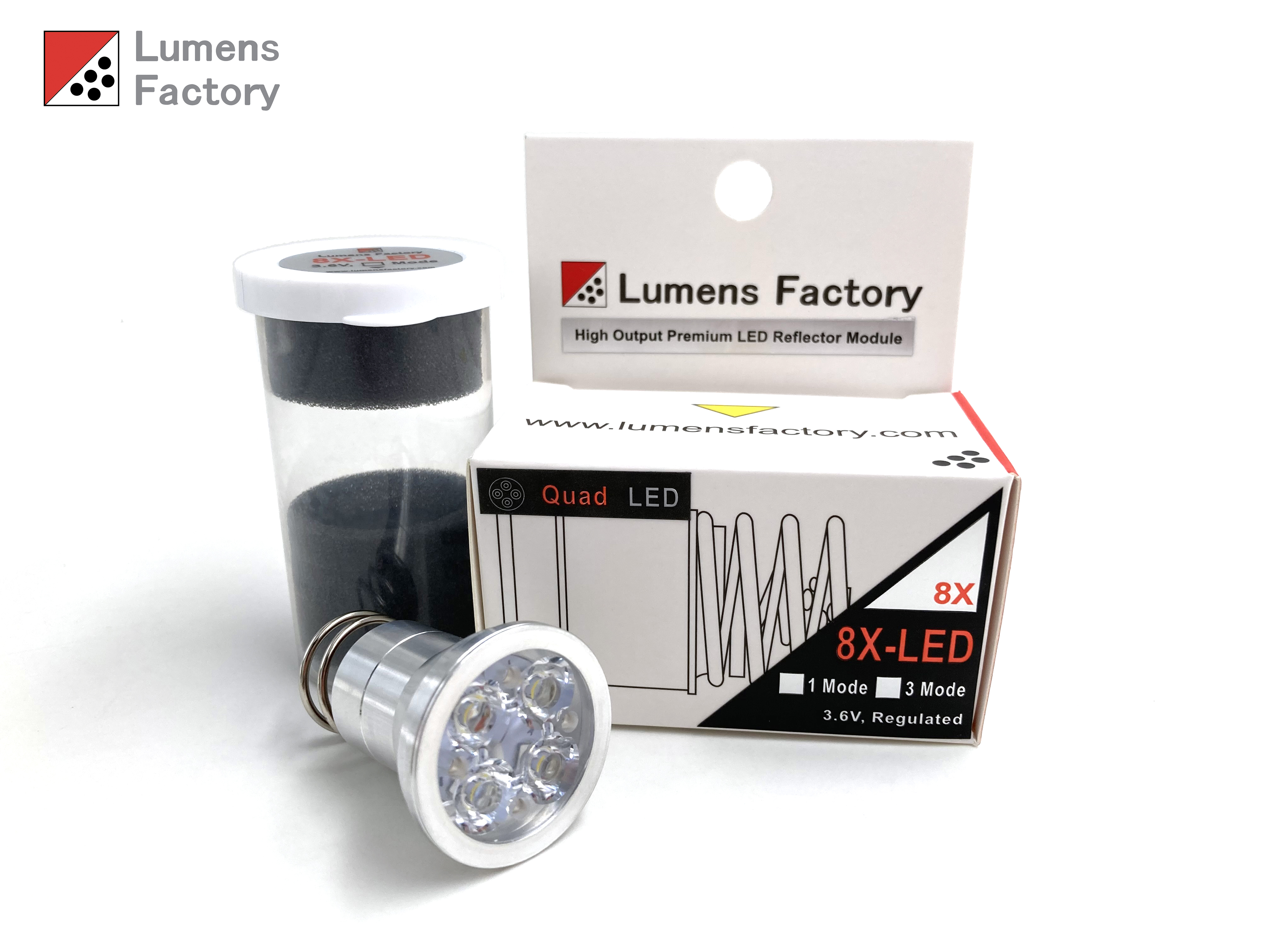

8X-LED Quad High Output 3 Mode LED Reflector Module
(3.6V Regulated Input)

Generation 2: Updated to Nichia 519A LED from Nichia 319A resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1150 Lumens)
-3.6V Regulated Input, Optimized for Surefire B90 Battery and 3.7V 18650 Rechargeable Battery
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Precision Machined Aluminum Housing
-Carclo 10621 Quad Optics
-Driver Circuit Board that is Optimized for Surefire B90 and 18650 Rechargeable Battery
-Custom Contact Springs That Provide the Best Contact and Press Feel
-Aluminum Housing with Perfect Fitment

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"

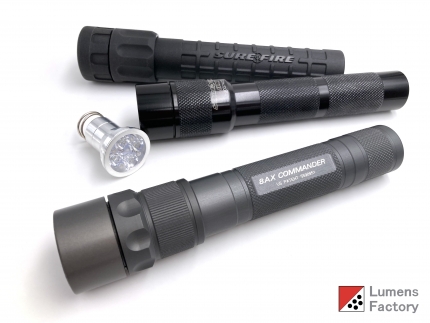

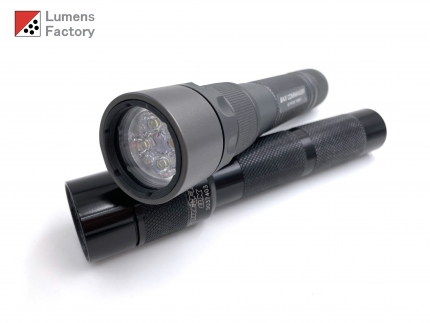

Compatible with:

Surefire
8X
8NX
8AX Commander


Runtime (on 100%):

1 x Surefire B90 NI-CD Rechargeable Battery: ~80 Mins
1 x 3.7V 18650 Rechargeble with 18650 Battery Adapter: ~120 Mins
