D26-LED Quad LED Module (Gen 2), 2.7V-4.5V (Single Battery Setups, 3 Mode (5%-30%-100%))

US$64.50

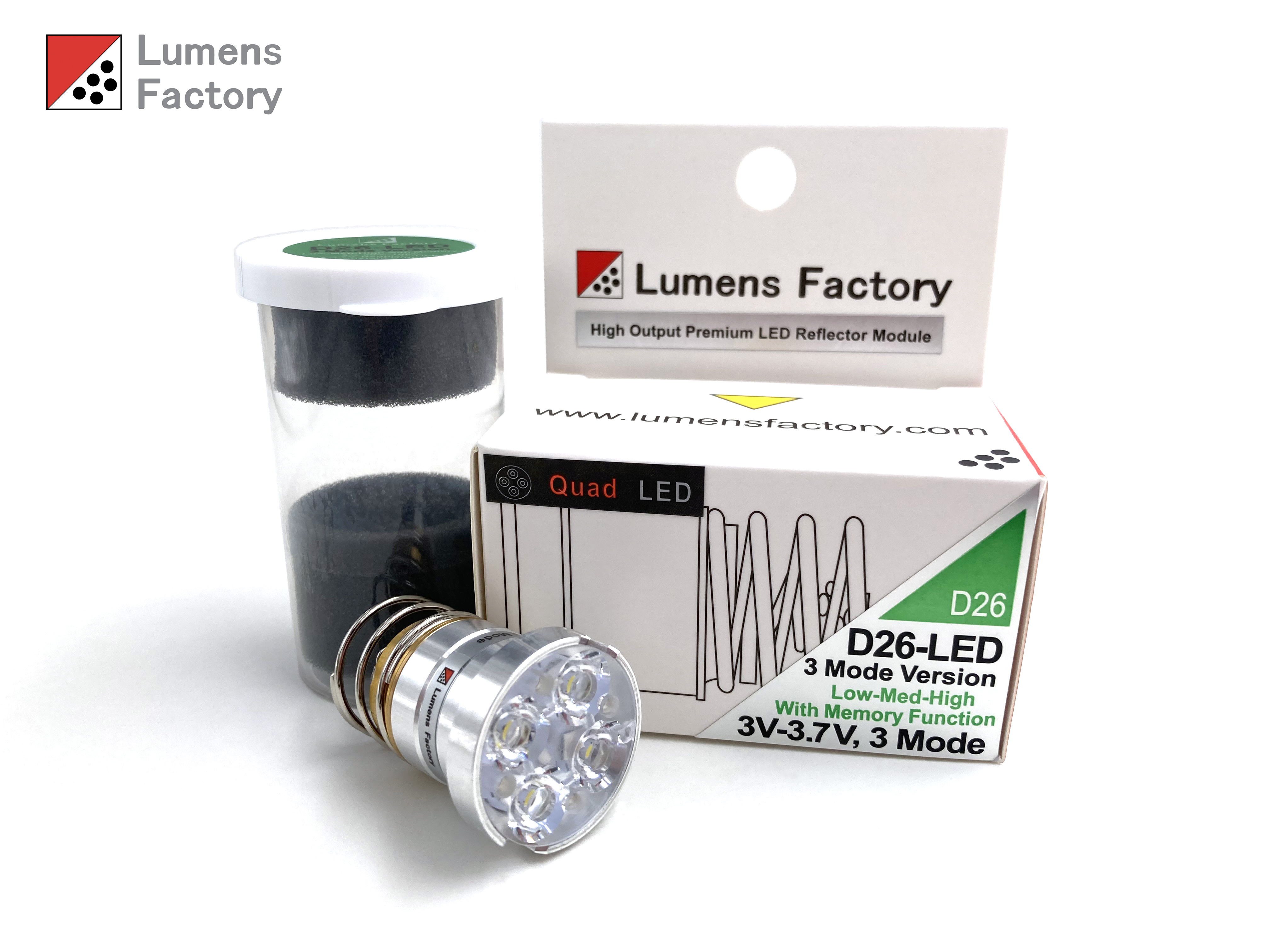

D26-LED Quad LED 3 Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Quad Nichia 519A or Nichia 319A or XPL LED
(Max Output from 950 to 1150 Lumens depending on model)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***

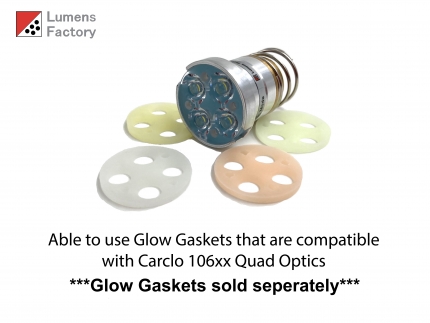

Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"

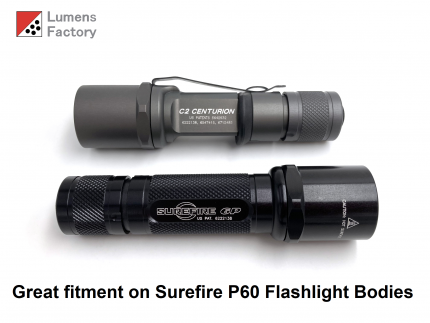

Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2

G&P
G60 Series

Pila
GL2

Runtime on 100%:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Quad LED 3 Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Quad Nichia 519A LED
(Max Output 1150 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Cool White (5700K)
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2

G&P
G60 Series

Pila
GL2

Runtime on 100%:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Quad LED 3 Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

-High Output Quad Nichia 319A LED
(Max Output 1050 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Neutral Tint (4000K)
-80 CRI, High Colour Rendition
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2

G&P
G60 Series

Pila
GL2

Runtime on 100%:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
D26-LED Quad LED 3 Mode LED Reflector Module
(2.7V-4.5V Regulated Input)

-High Output XPL LED
(Max Output 950 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 1600mA
-Warm White (2600-3200K)
-90 CRI, Ultra High Colour Rendition
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, 6P, D2, C2, Z2, M2

G&P
G60 Series

Pila
GL2

Runtime on 100%:

2 x AA: ~40 mins
1 x CR123a: ~40 mins
1 x 16650 (2500mAh): ~1.5 hours
1 x 18650 (3500mAh): ~2 hours
