D26-LED Quad LED Module (Gen 2), 3.6V-13V (3 Mode (5%-30%-100%))

US$64.50
Due to some sudden family matters, we will be closing the Sales Office from February 18th, 2024 to February 24th, 2024.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

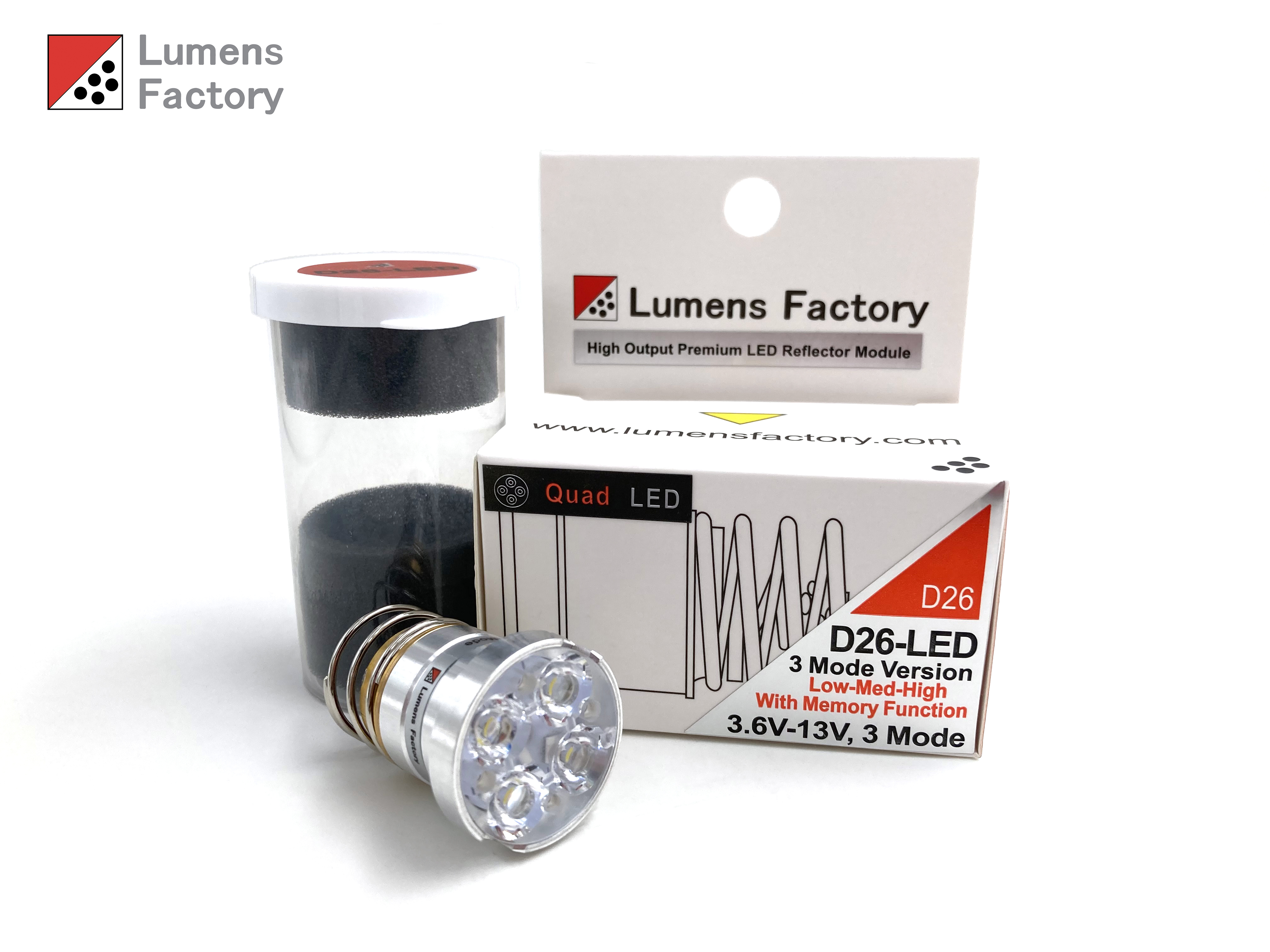

D26-LED Quad LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

-High Output Nichia 519A or Nichia 319A or Cree XP-L LED
(Max Output from 1000 to 1275 Lumens depending on model)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***

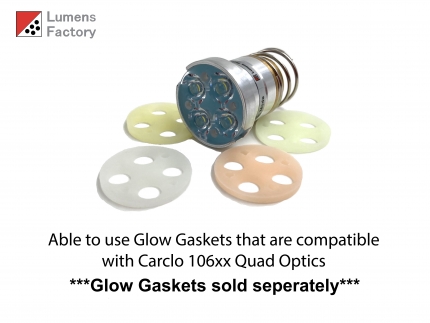

Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"

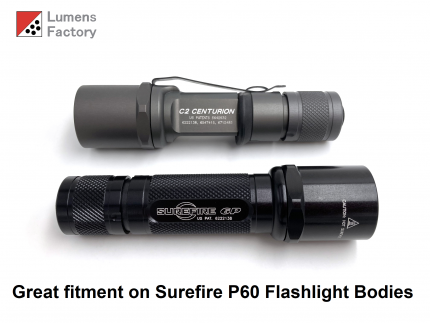

Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

***If you are planning to use a 1 cell battery setup that is less than a 16650 (such as a 14500 or 16340 or 18350), please buy the 2.7V-4.5V model instead of this module.***
1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED Quad LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

-High Output Nichia 519A LED
(Max Output 1275 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Cool White (5700K)
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED Quad LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

-High Output Nichia 319A LED
(Max Output 1125 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Neutral Tint (4000K)
-80 CRI, High Colour Rendition
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
D26-LED Quad LED 3 Mode LED Reflector Module
(3.6V-13V Regulated Input)

-High Output Cree XP-L LED
(Max Output 1000 Lumens)
-3.6V to 13V Regulated Input for Maximum Flexibility
-3 Modes with Memory Function (5%-30%-100%)
-Maximum Current Output at 2000mA
-Warm White (2600-3200K)
-90 CRI, Ultra High Colour Rendition
-Carclo 10621 Quad Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-Unique Reflector Design
-Precision Machined Aluminum Housing with Brass Base

Please note that Quad LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10621 Optics.
While it is great for Indoors and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is NOT recommended for tactical or weaponlight use due to the inability for momentary operations.***
Silicone Glow Gaskets Available in the "Glow Gasket" Section under "Parts"


Compatible with:

Surefire
G2, G3, 6P, 9P, D2, D3, C2, C3, Z2, Z3, M2

G&P
G60 Series, G90 Series

Pila
GL2, GL3

Runtime:

1 x 16650 (2500mAh): ~1.5 hour
1 x 18650 (3500mAh): ~2 hours
2 x CR123a Primaries: ~2 hours
2 x 16340 (750mAh): ~2 hours
3 x CR123a Primaries: ~3 hours
3 x 16340 (750mAh): ~3 Hours
2 x 16650 (2500mAh): ~3.5 hours
2 x 18500 (1500mAh): ~3 hours
2 x 18650 (3500mAh): ~5.5 hours
3 x 18500 (1500mAh): ~6 hours
