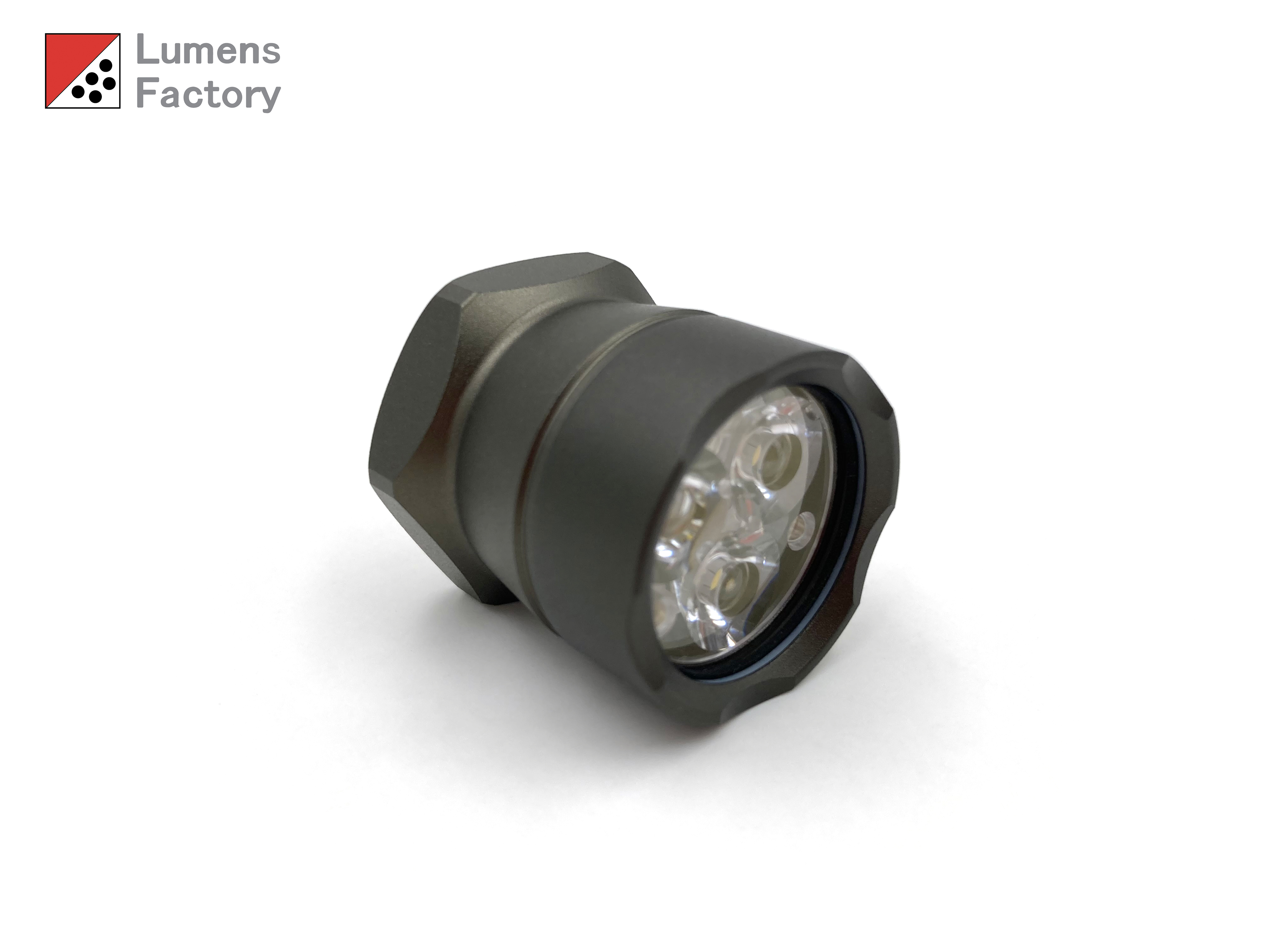

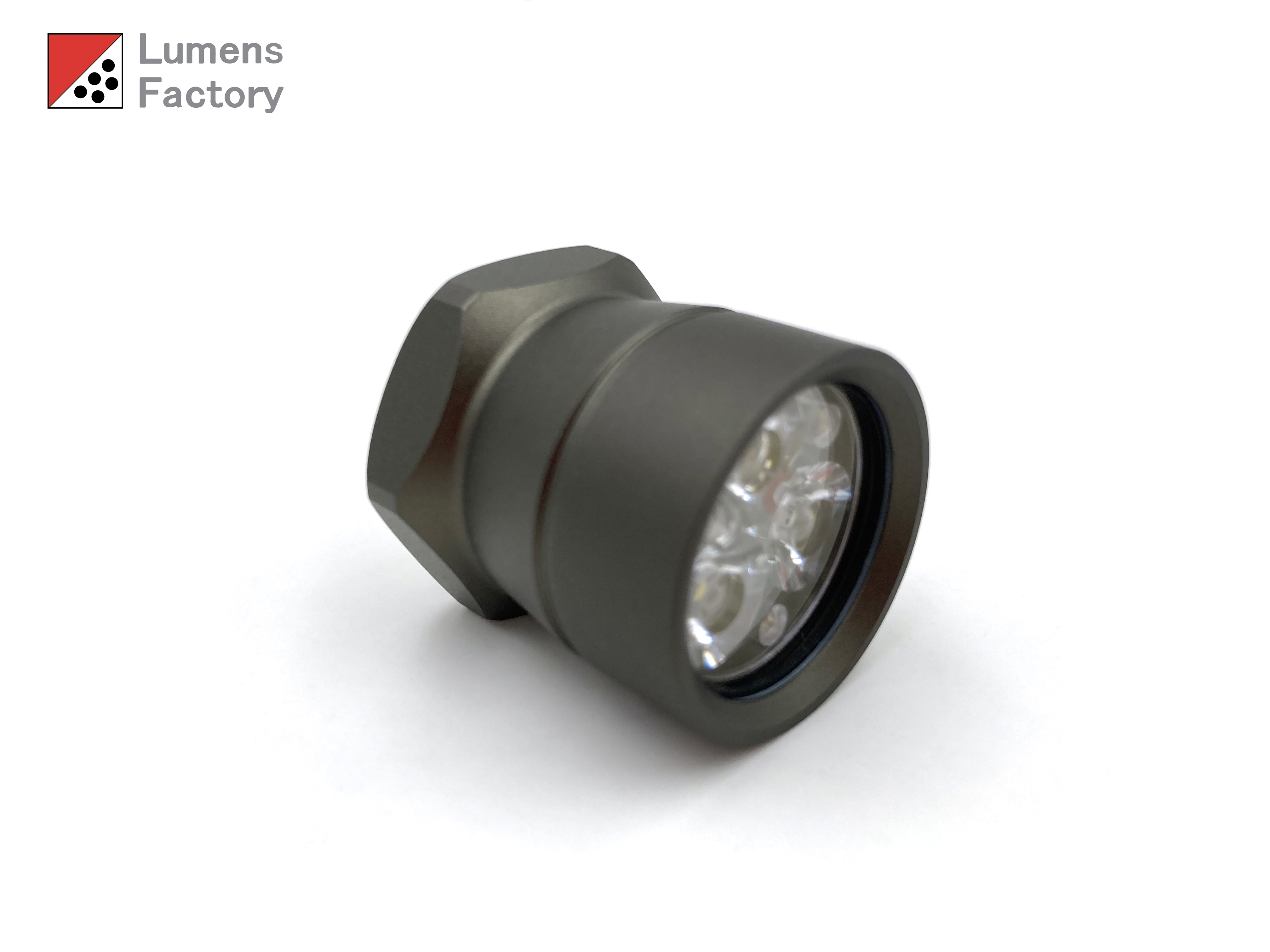

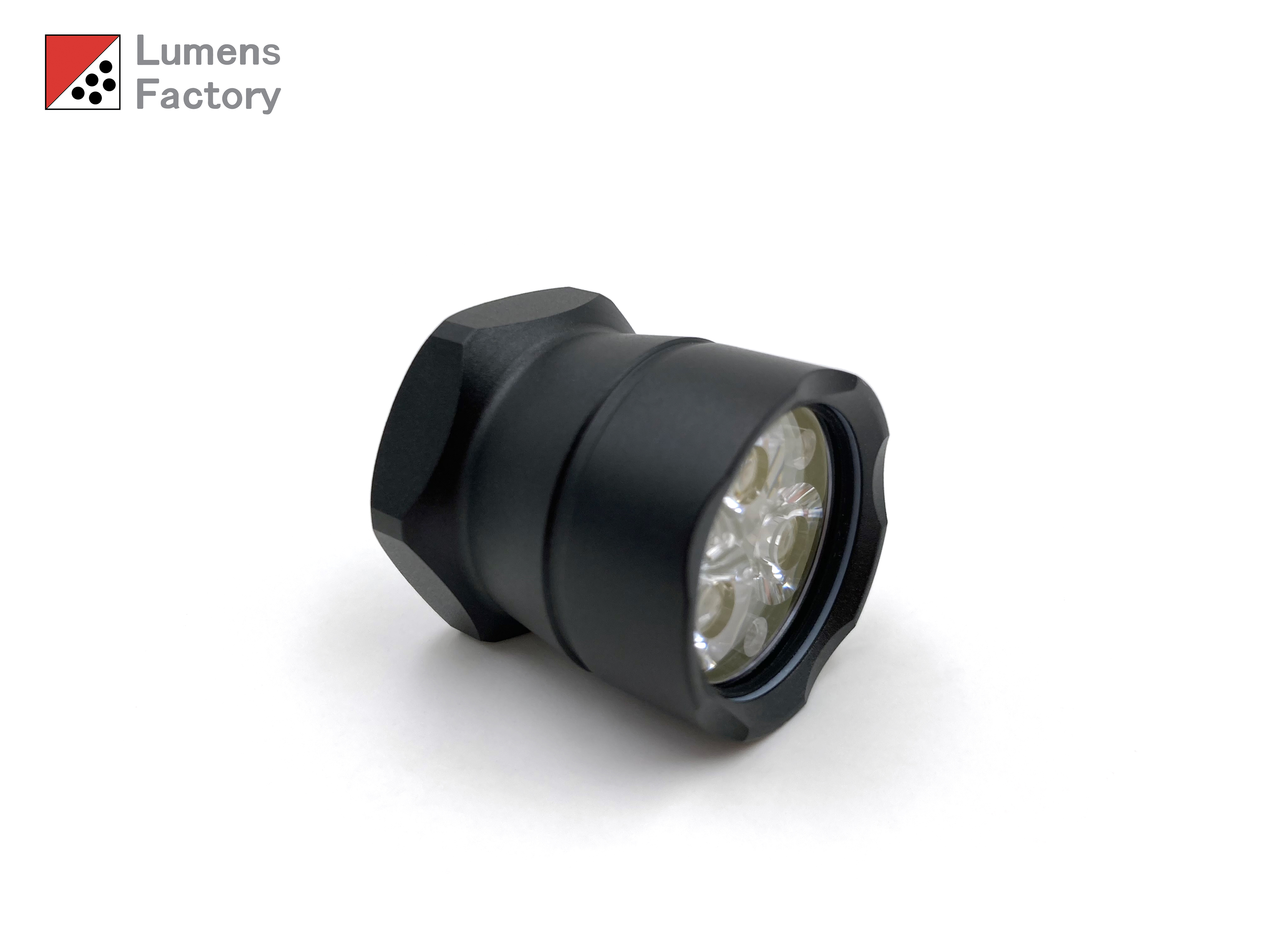

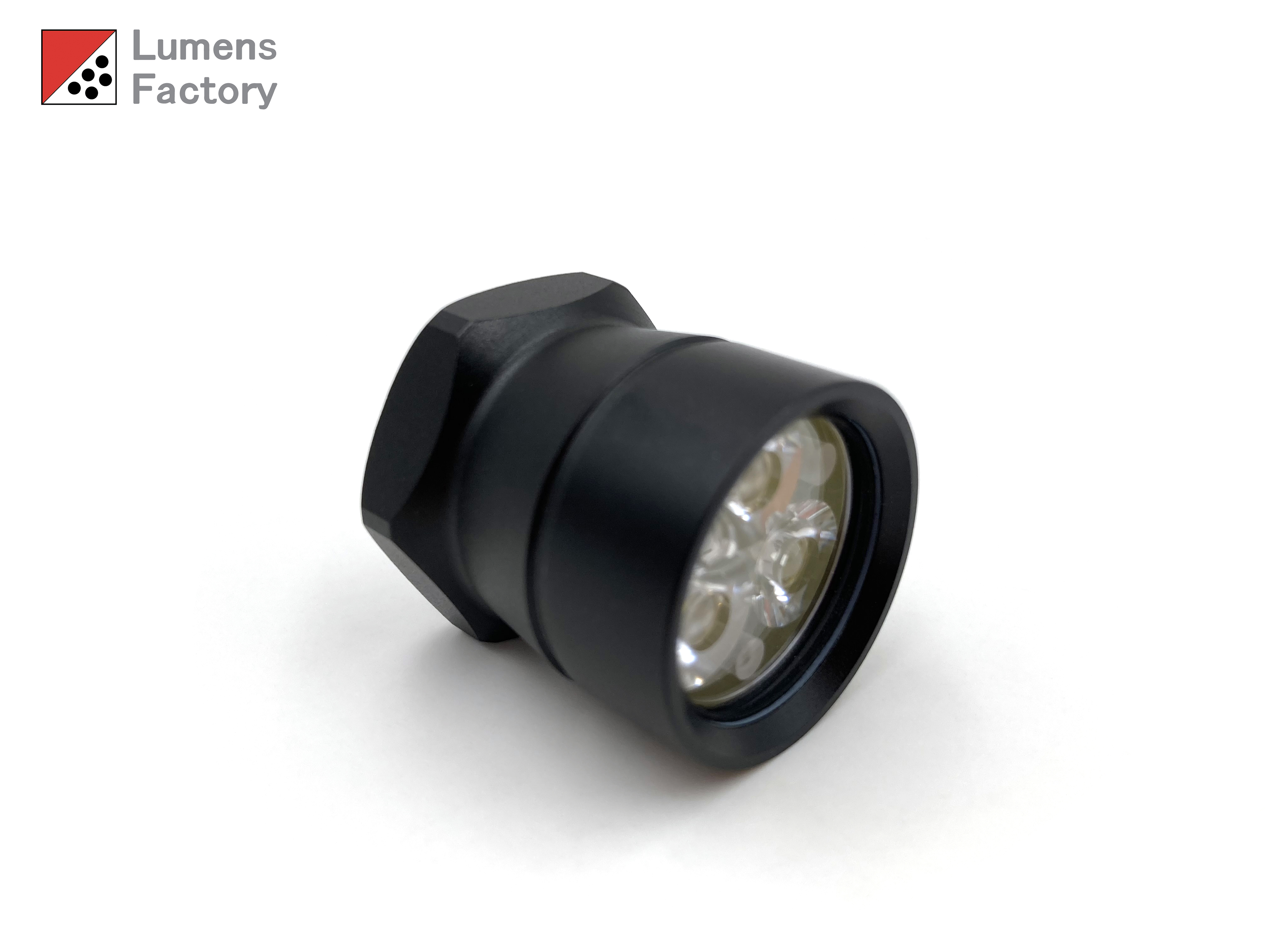

E Series L1 Style 1 Mode Triple Head Unit (2.7V-4.5V), HA3 Natural/HA3 Black

US$83.50
Due to a sudden influx of bulk orders, retail sales will be temporarily stopped until April 30th, 2024.
Shopping Cart at the Online Shop will cease to function until then.
Sorry for any inconvenience caused.
Thank you for your support.
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A or Nichia 319A or Cree XP-L LED (Max Output 900-1075 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White, Neutral White 80-CRI or Warm White 90-CRI LEDs Available
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black or Natural Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

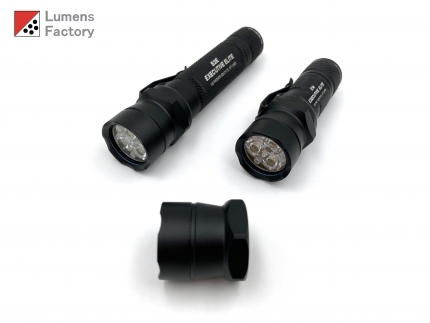

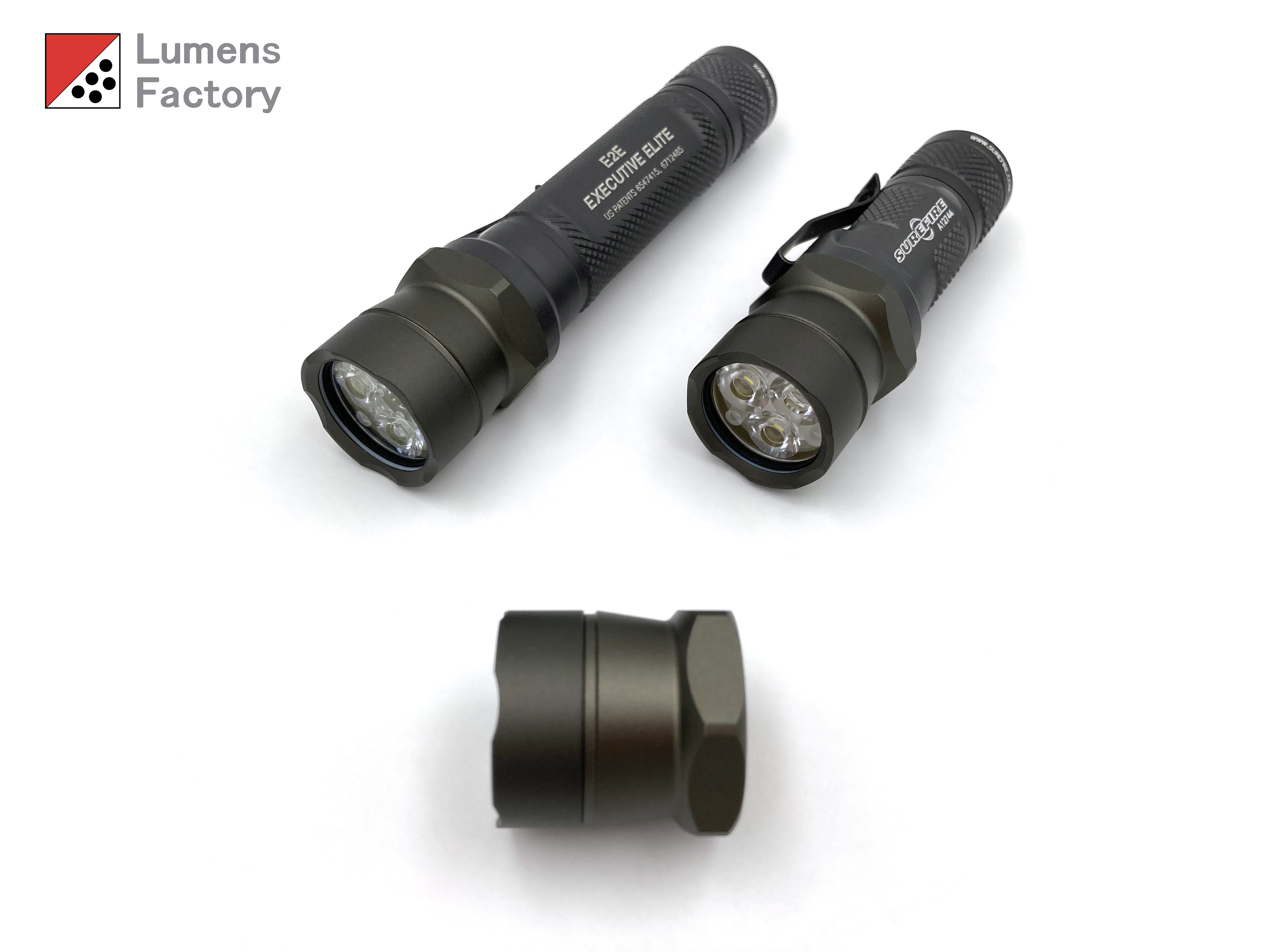

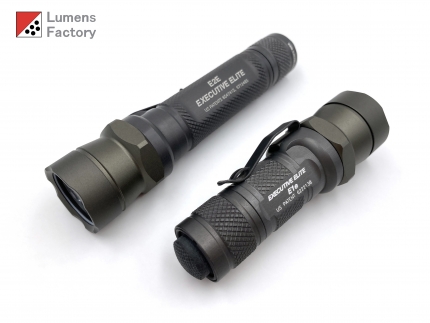

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light

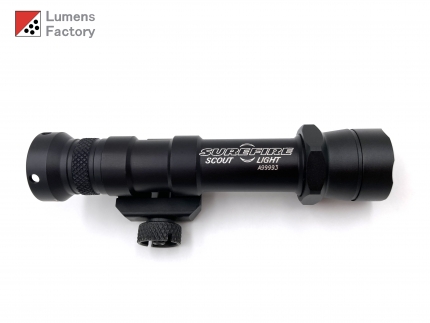

M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A (Max Output 1075 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

-High Output Nichia 319A LED (Max Output 950 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

-High Output Cree XP-L LED (Max Output 900 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A (Max Output 1075 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

-High Output Nichia 319A LED (Max Output 950 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

-High Output Cree XP-L LED (Max Output 900 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A (Max Output 1075 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

-High Output Nichia 319A LED (Max Output 950 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

-High Output Cree XP-L LED (Max Output 900 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A (Max Output 1075 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

-High Output Nichia 319A LED (Max Output 950 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
E Series L1 Style Triple LED Head Unit (Single Mode)
(2.7V-4.5V Regulated Input, Constant Output)

-High Output Cree XP-L LED (Max Output 900 Lumens)
-2.7V-4.5V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 1600mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Black Anodizing
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire

E1, E1E, E1L, E1D, E1B, L1 using 1 x CR123a Primary Cell
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 (16340) Rechargeable

E2L AA, M600 AA using 2 x AA Batteries (Non-Rechargeable)

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 1 x 17670 Rechargeable Cell

M300 Mini Scout Light
M600A, M600B, M600C, M600U Scout Light
Using 1 x 17670 Rechargeable Cell

Arisaka

300 Series
600 Series


Runtime:

1 x CR123a Primary: ~1 hour
1 x RCR123 (16340) Rechargeable: ~40 mins.
1 x 17670 (1600mAh): ~1 hour
