E Series L1 Style (Tritium Slotted, Limited Run) 1 Mode Triple Head Unit (3.7V-9V), HA3 Natural/HA3 Black

US$85.50

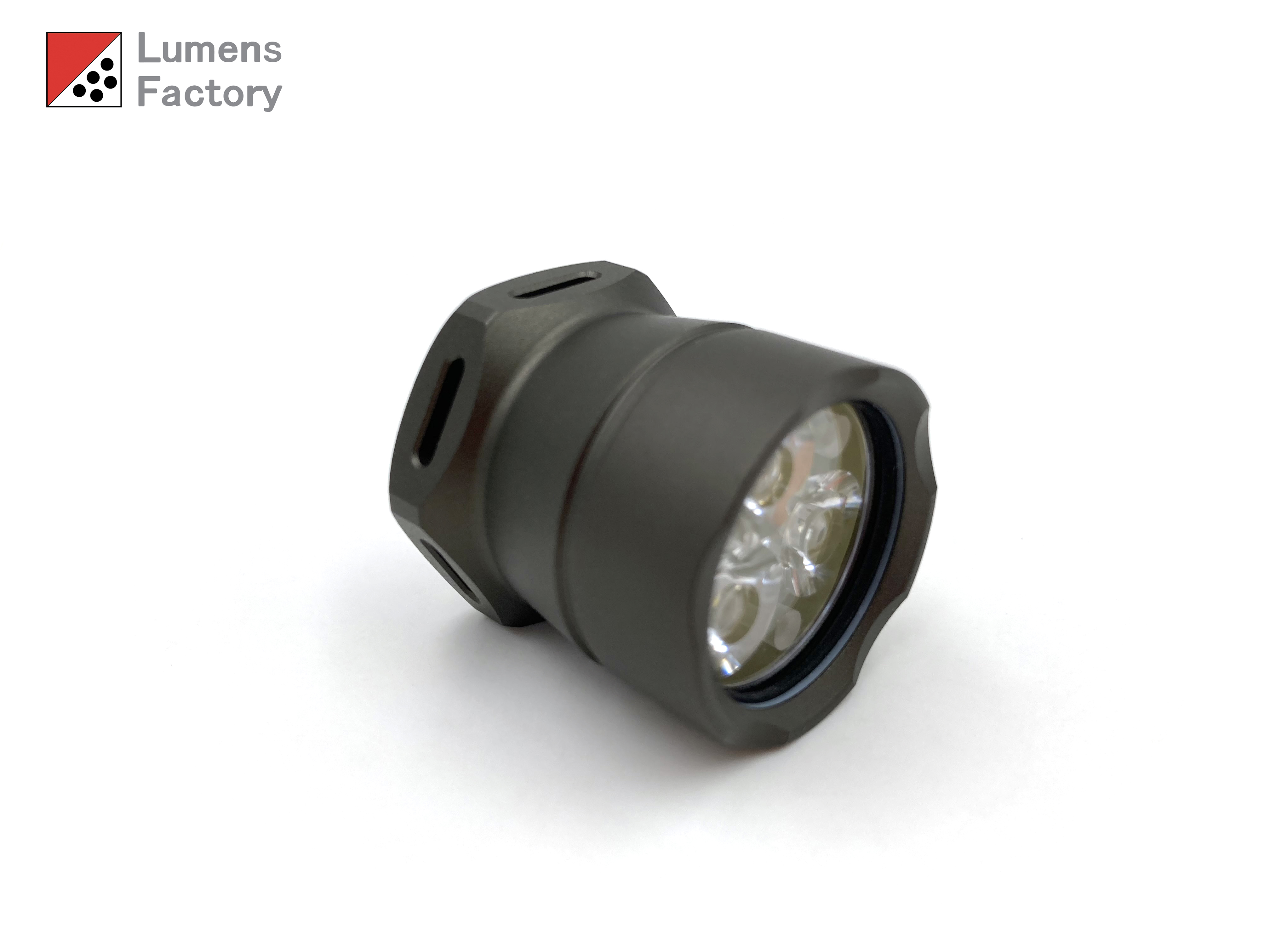

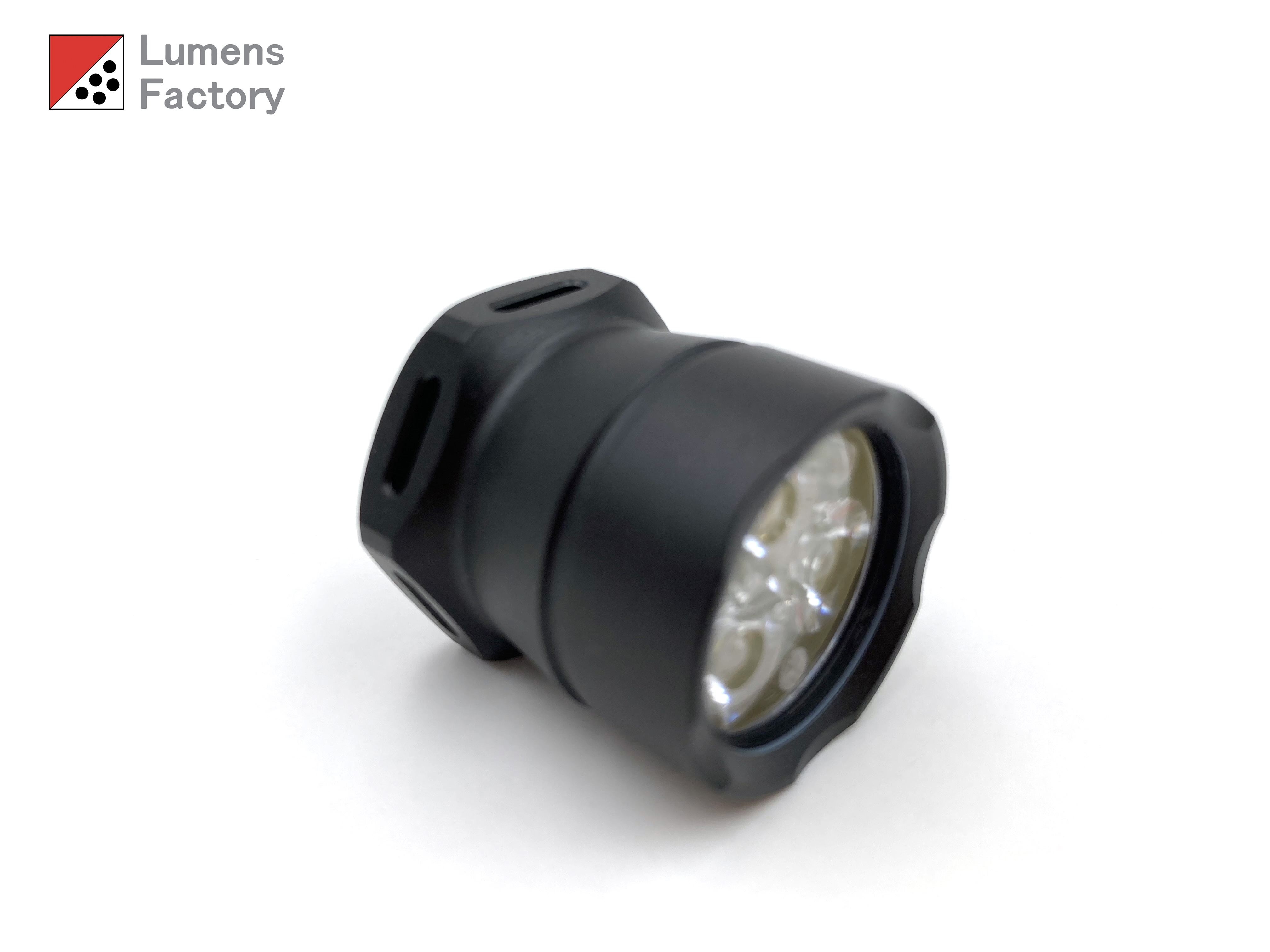

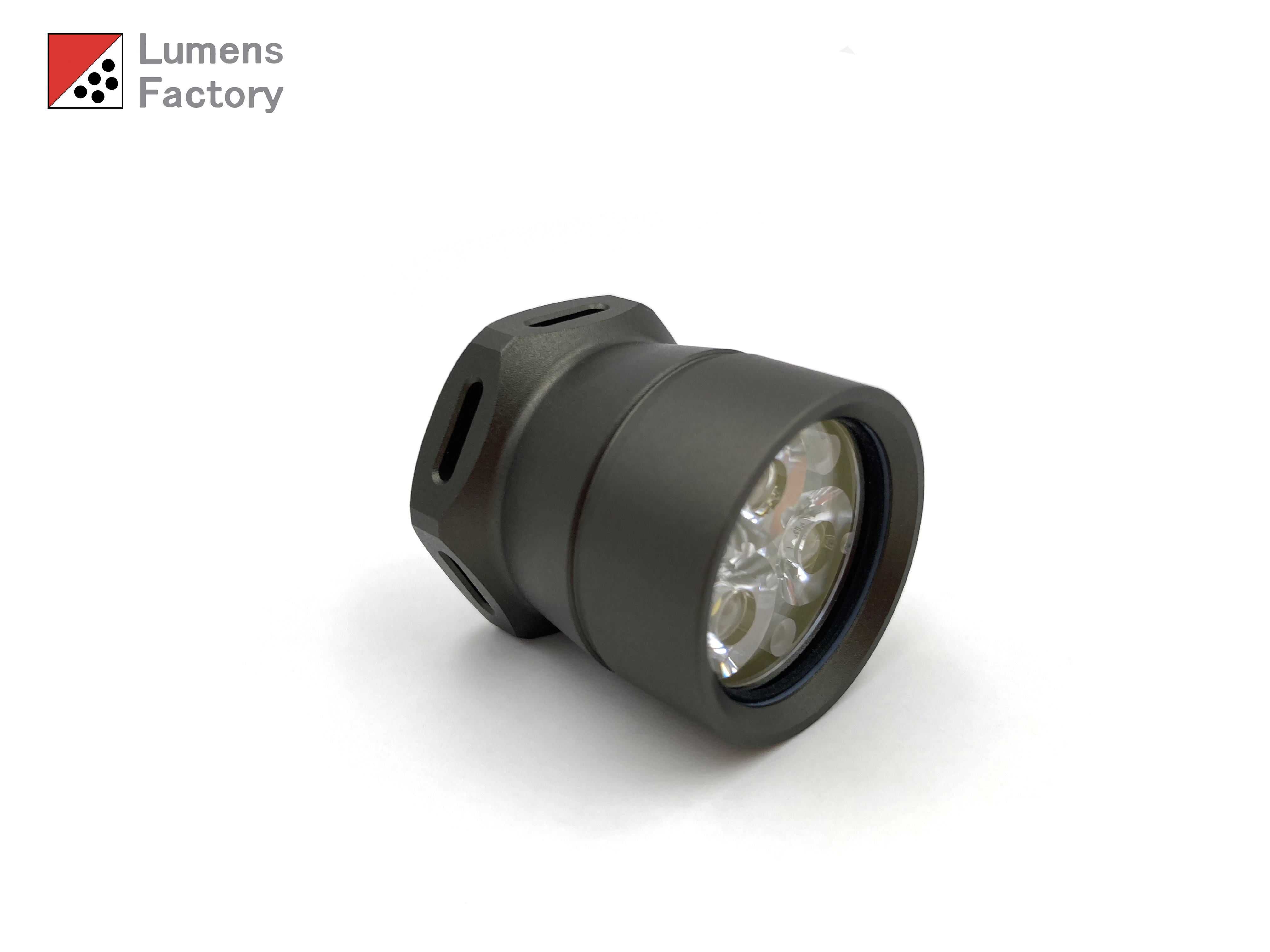

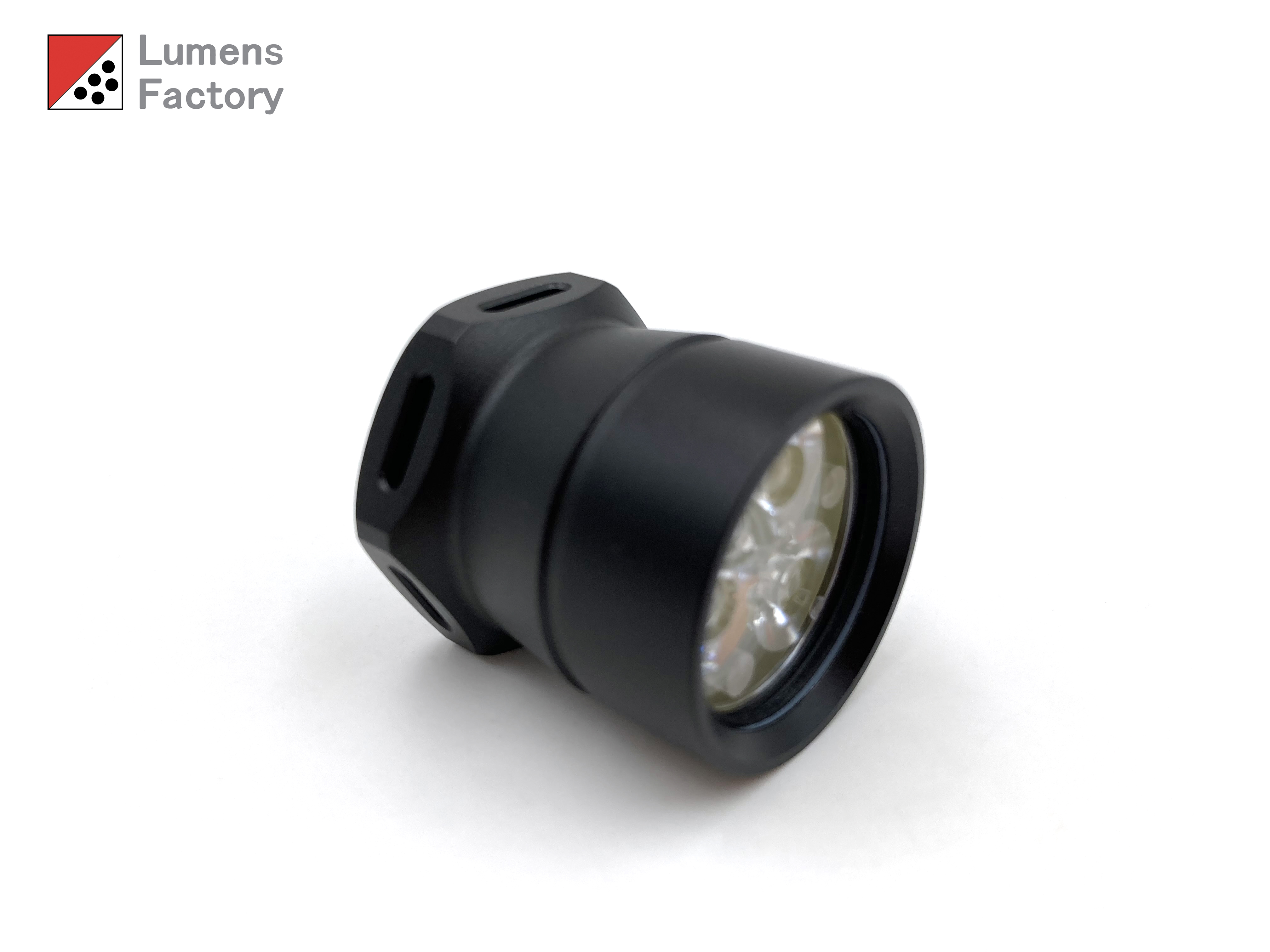

E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)
Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A or Nichia 319A or XPL LED
(Max Output 1000 to 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White (5700K), Neutral Tint (4000K) or Warm White (2600-3200K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

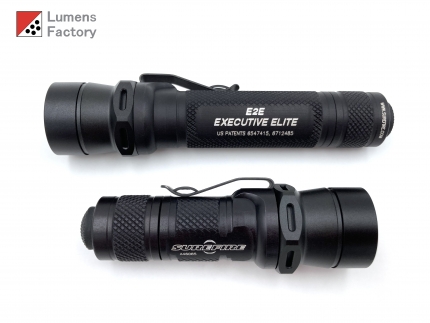

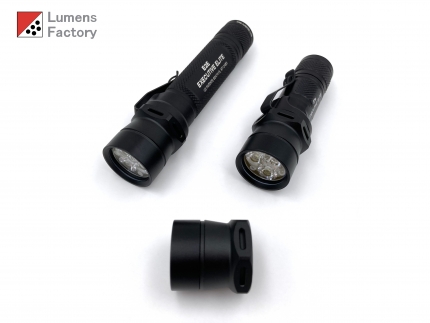

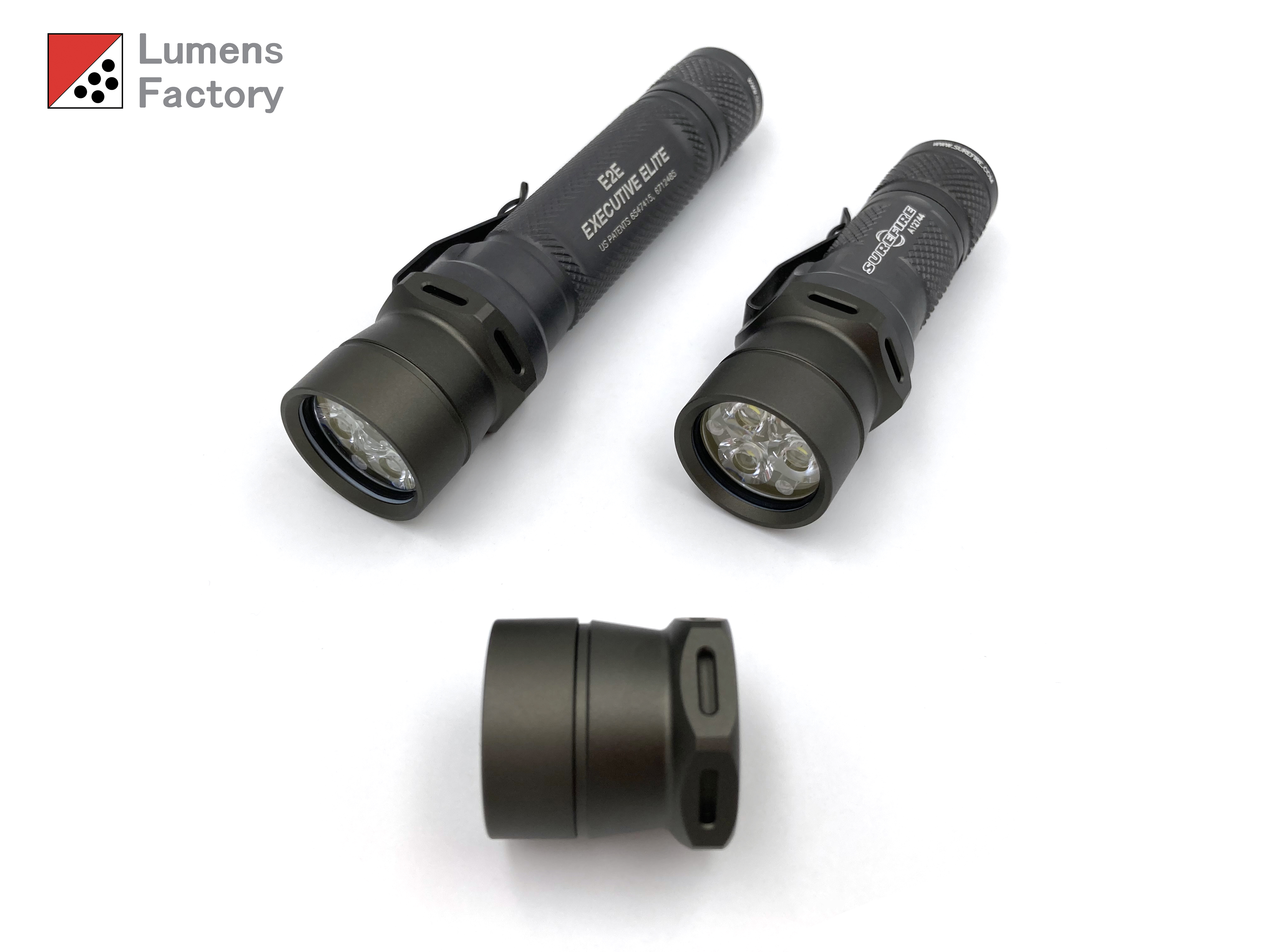

Compatible with:

Surefire
E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka
M600 Series


Runtime:

***If you are planning to use a 1 cell battery setup that is less than a 16650 (such as a 14500 or 16340 or 18350), please buy the 2.7V-4.5V model instead of this module.***
1 x 16650 (2500mAh): ~1.5 hour
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)
Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)

-High Output Nichia 319A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)

-High Output XPL LED (Max Output 1000 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)
Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)

-High Output Nichia 319A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)

-High Output XPL LED (Max Output 1000 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)
Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)

-High Output Nichia 319A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)

-High Output XPL LED (Max Output 1000 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)
Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)

-High Output Nichia 319A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, Constant Output)

(Tritium Slotted, Limited Run Only 40pcs. Made)

-High Output XPL LED (Max Output 1000 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-Tactical Single Mode
-Maximum Current Input to LED at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B, L1 using 1 x RCR123 Rechargeable

E2L AA, M600 AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L2, L4, LX2 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x
RCR123 Rechargable Cells

M600A, M600B, M600C, M600U Scout Light
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells

Arisaka

M300 Series
M600 Series


Runtime:

1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (16340) (750mAh): ~2 hours
