E Series L1 Style 3 Mode Triple Head Unit (3.7V-9V), HA3 Natural/HA3 Black

US$83.50
Due to some sudden family matters, we will be closing the Sales Office from February 18th, 2024 to February 24th, 2024.
Shopping Cart at the Online Shop will cease to function until we are back.
Sorry for any inconvenience caused.
Thank you for your support.

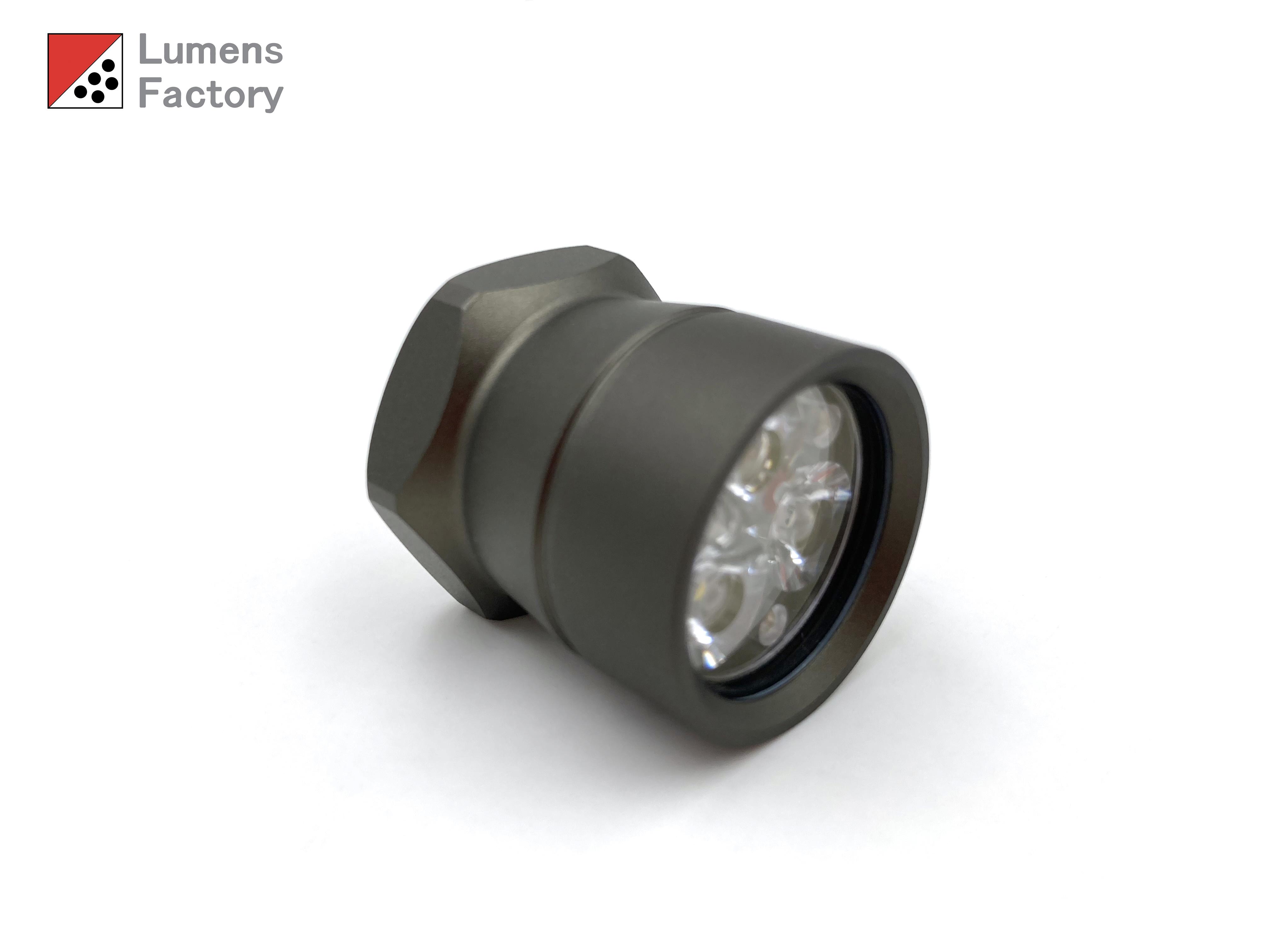

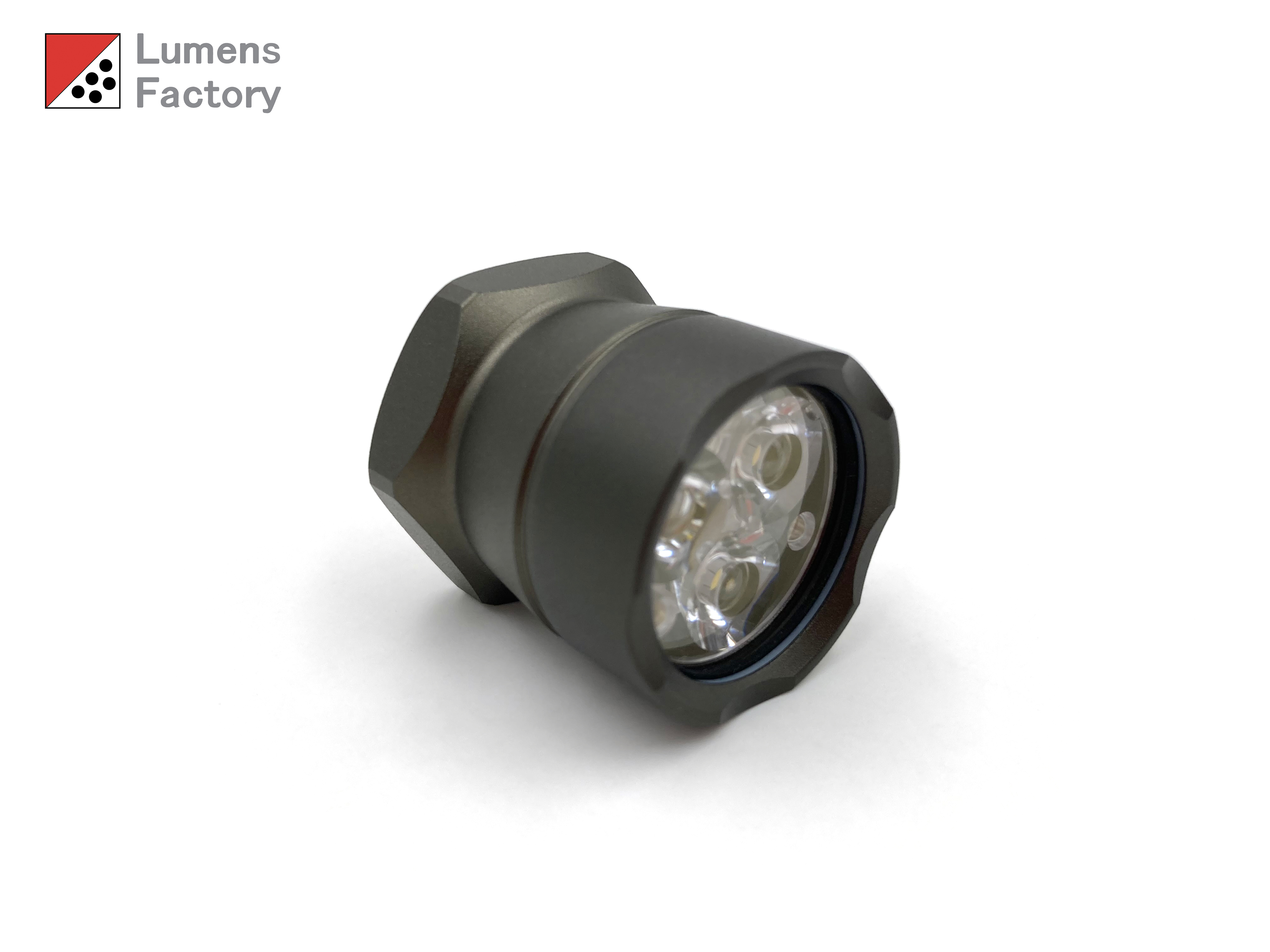

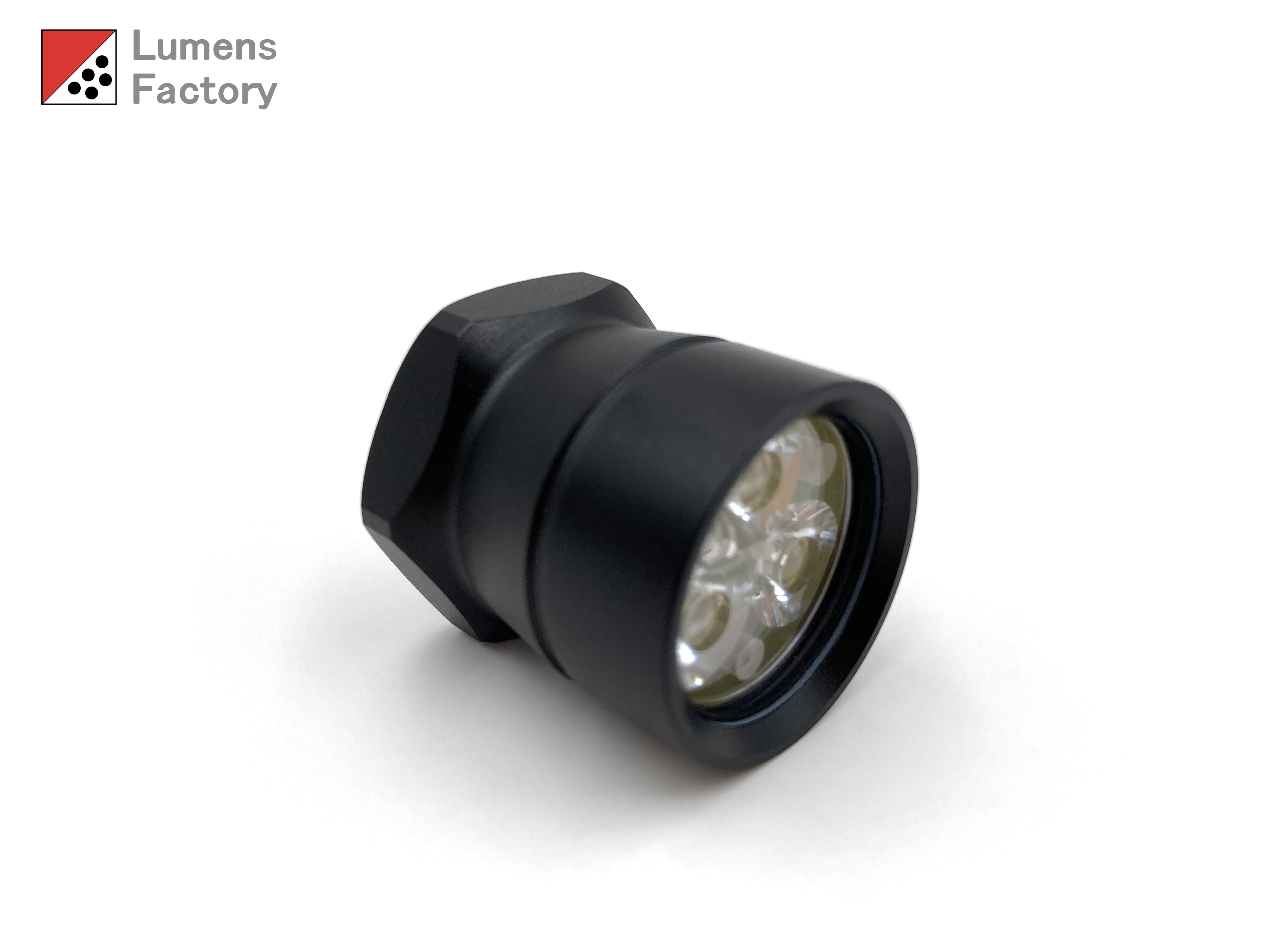

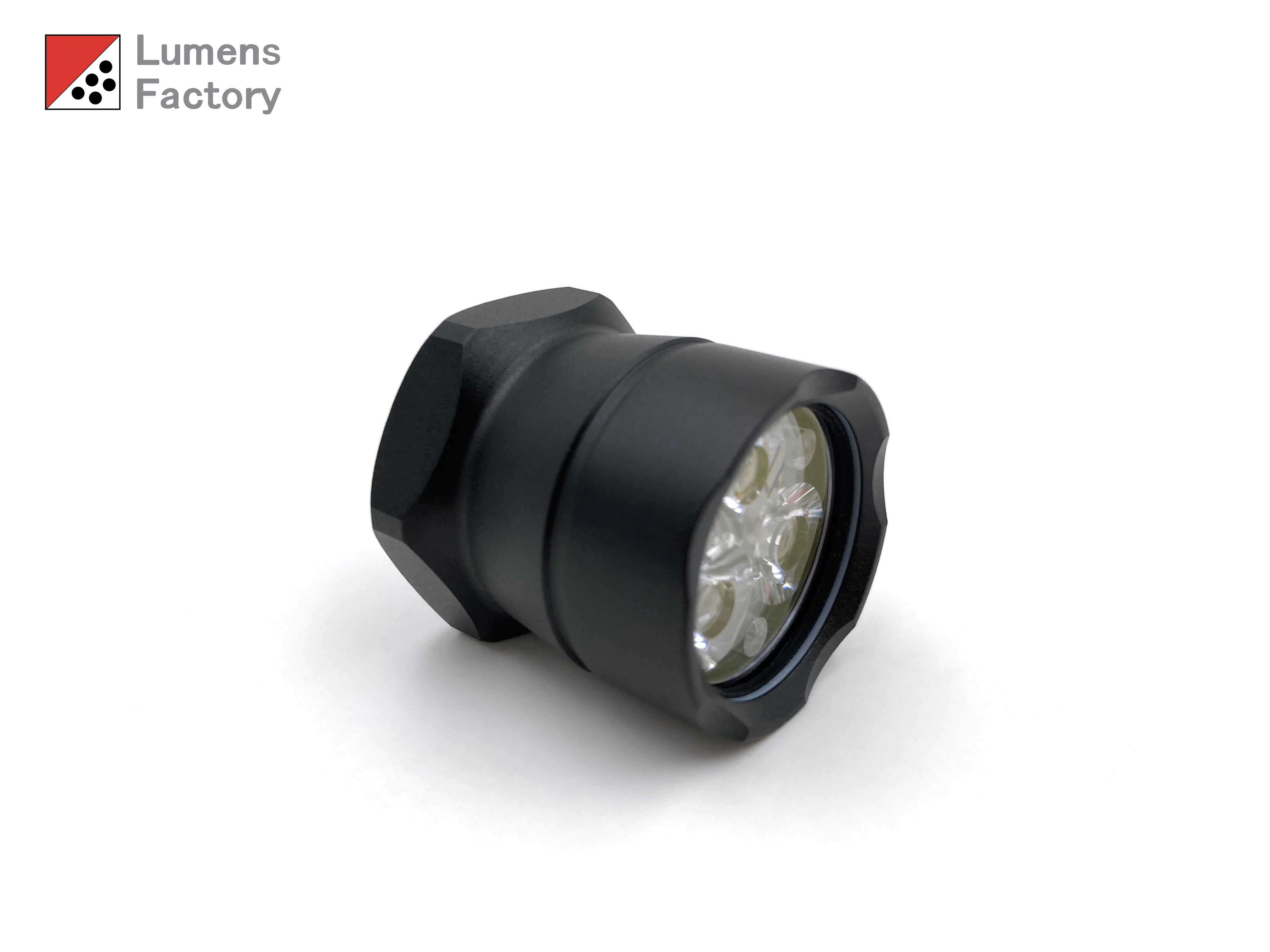

E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A or Nichia 319A or Cree XP-L LED
(Max Output from 1000 to 1200 Lumens depending on model)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Cool White, Neutral White 80-CRI or Warm White 90-CRI LEDs Available
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***

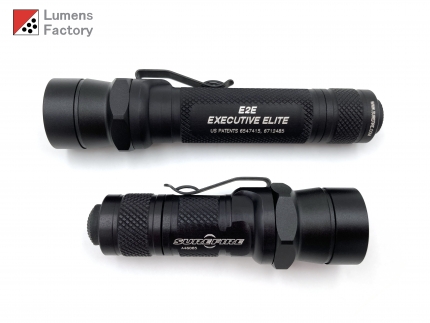

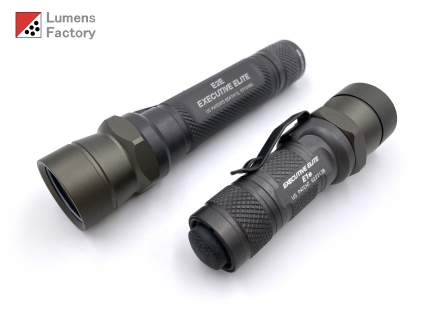

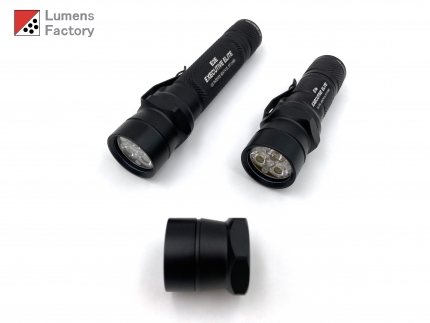

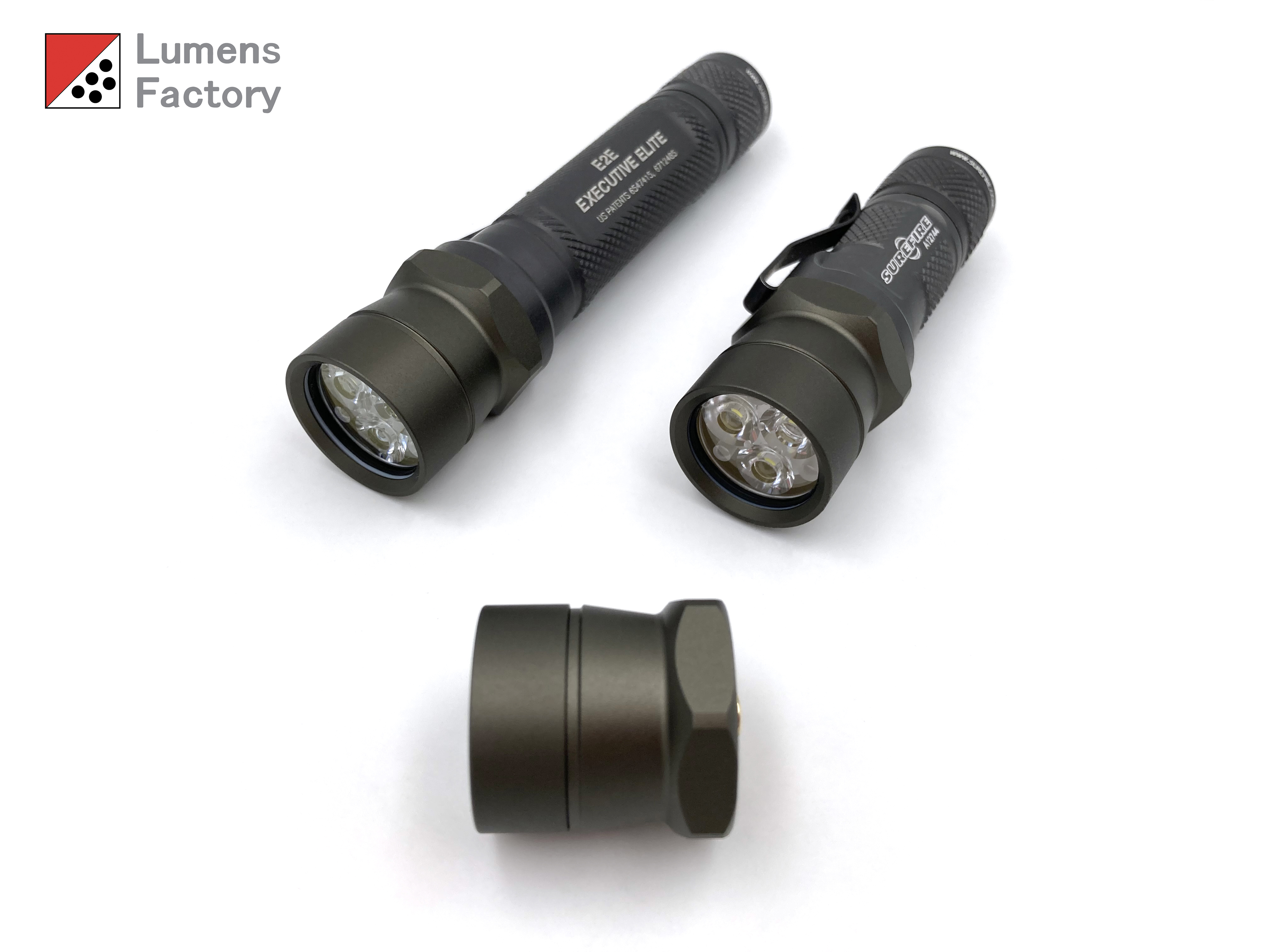

Compatible with:

Surefire
E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:
On 100% Output

***If you are planning to use a 1 cell battery setup that is less than a 16650 (such as a 14500 or 16340 or 18350), please buy the 2.7V-4.5V model instead of this module.***
1 x 16650 (2500mAh): ~1.5 hour
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

-High Output Nichia 319A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

-High Output Cree XP-L LED (Max Output 1000 Lumens)
(Max Output from 1000 to 1125 Lumens depending on model)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

-High Output Nichia 319A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

-High Output Cree XP-L LED (Max Output 1000 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

-High Output Nichia 319A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

-High Output Cree XP-L LED (Max Output 1000 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A LED (Max Output 1200 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Cool White (5700K)
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

-High Output Nichia 319A LED (Max Output 1100 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Neutral White (4000K)
-80-CRI High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
E Series L1 Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

-High Output Cree XP-L LED (Max Output 1000 Lumens)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Warm White (2600-3200K)
-90-CRI Ultra High Colour Rendition
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***


Compatible with:

Surefire
E1, E1E, E1L, E1D, E1B using 1 x RCR123 Rechargeable

E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:

On 100% Output
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
