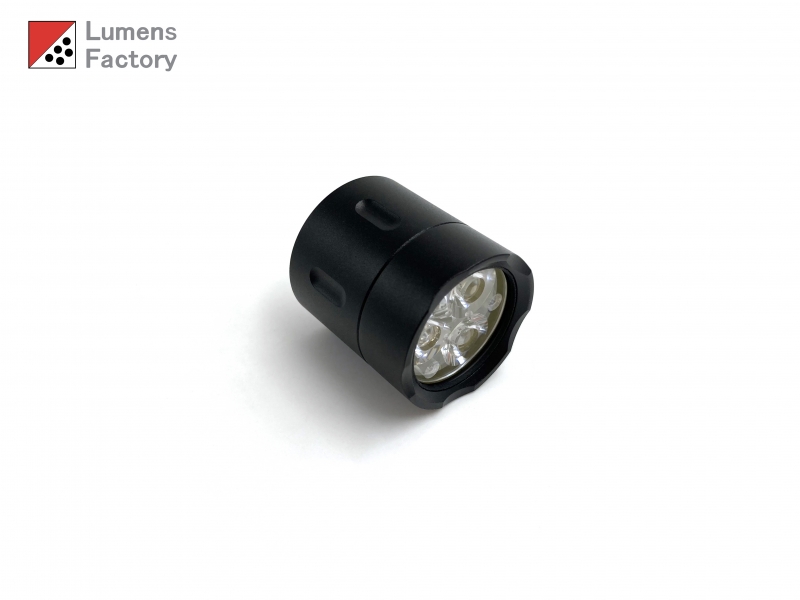

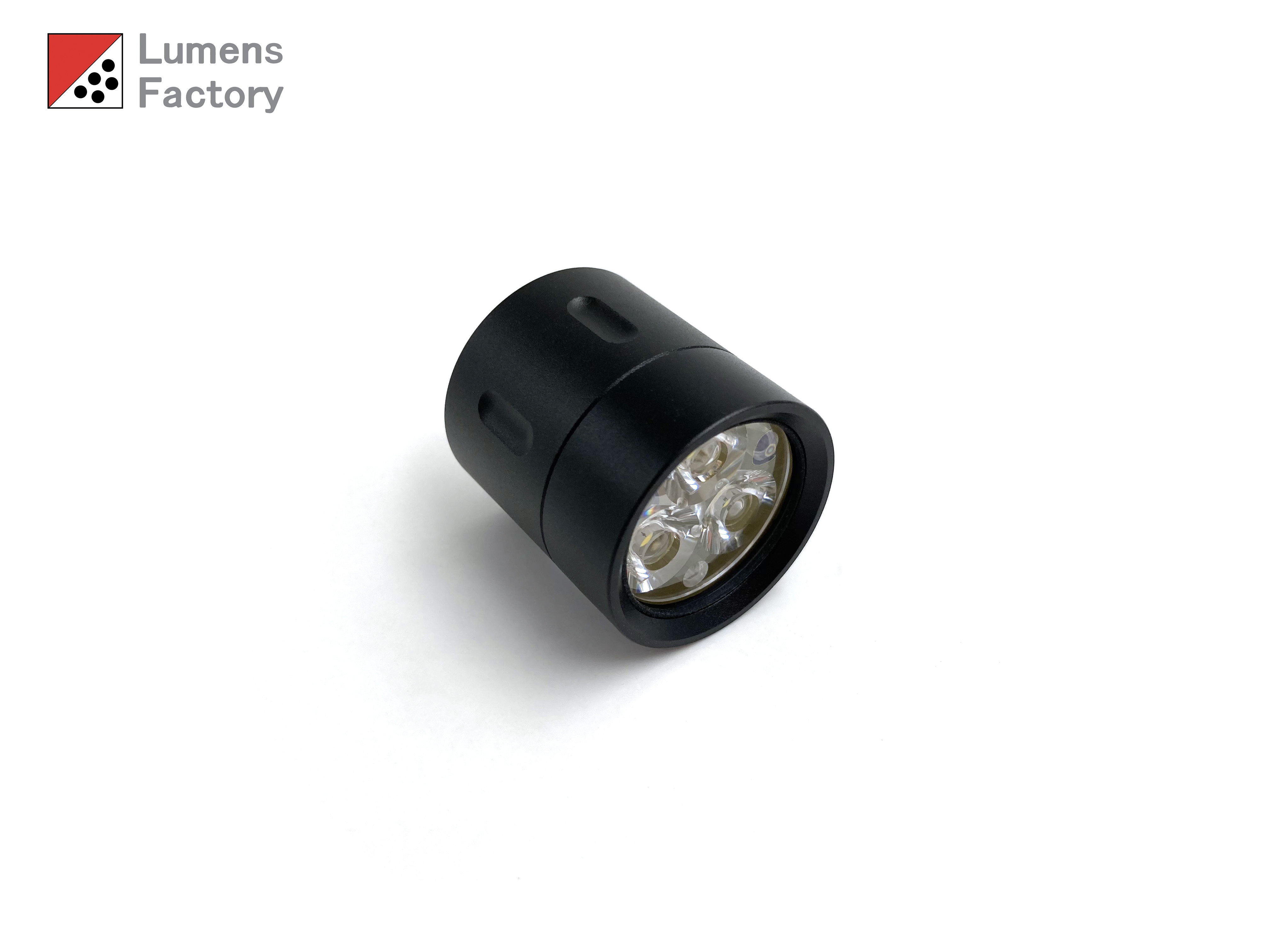

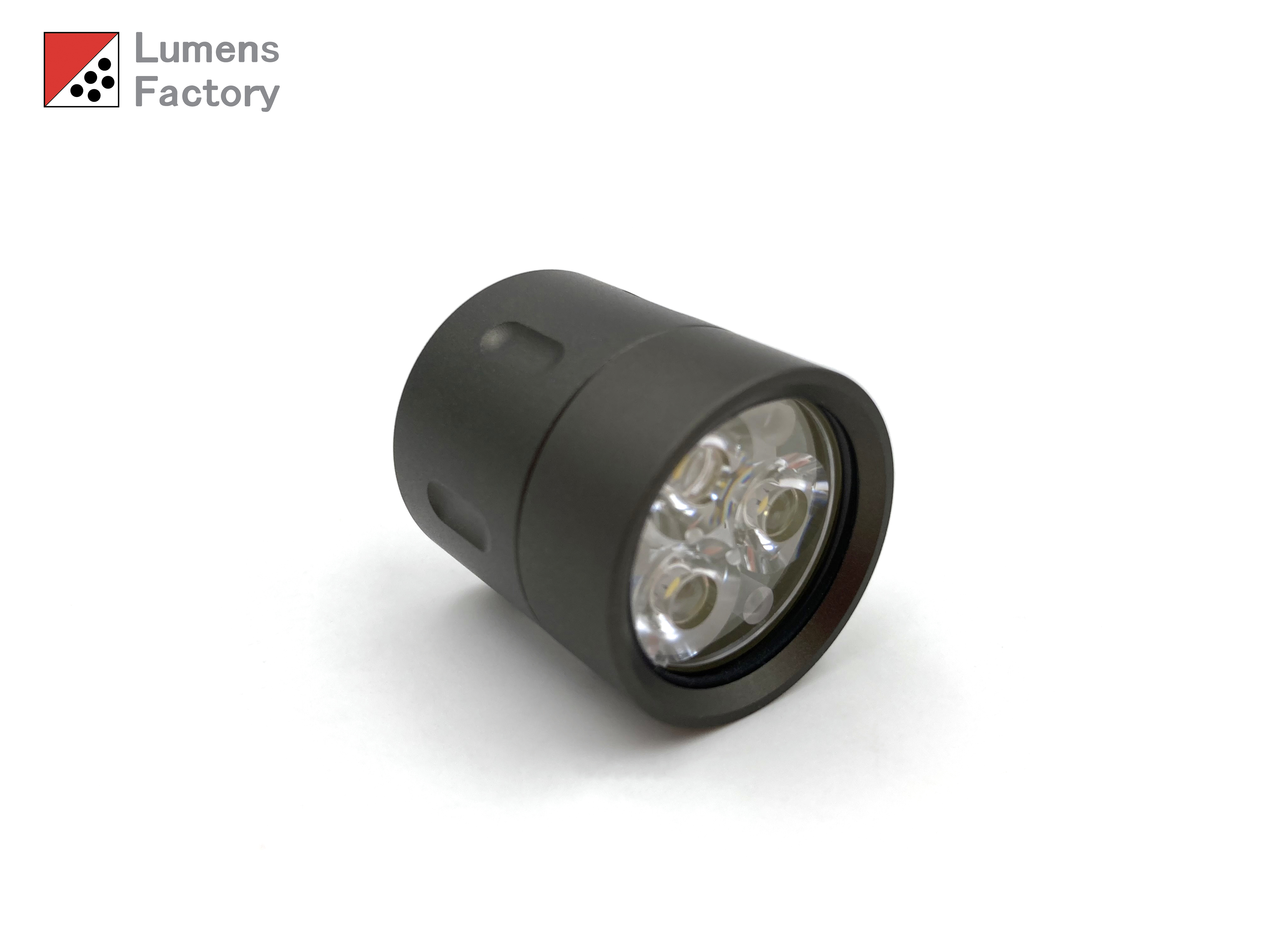

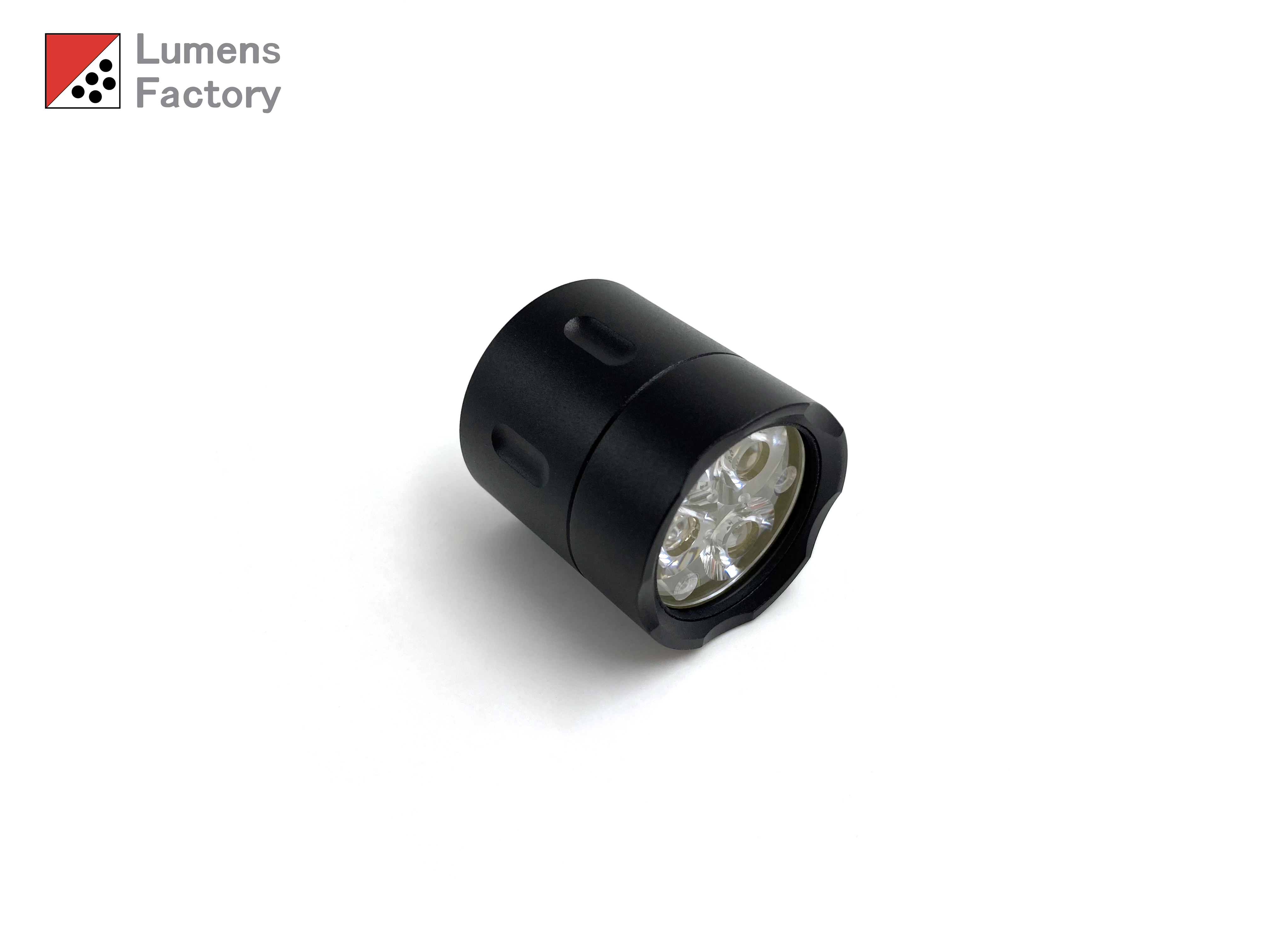

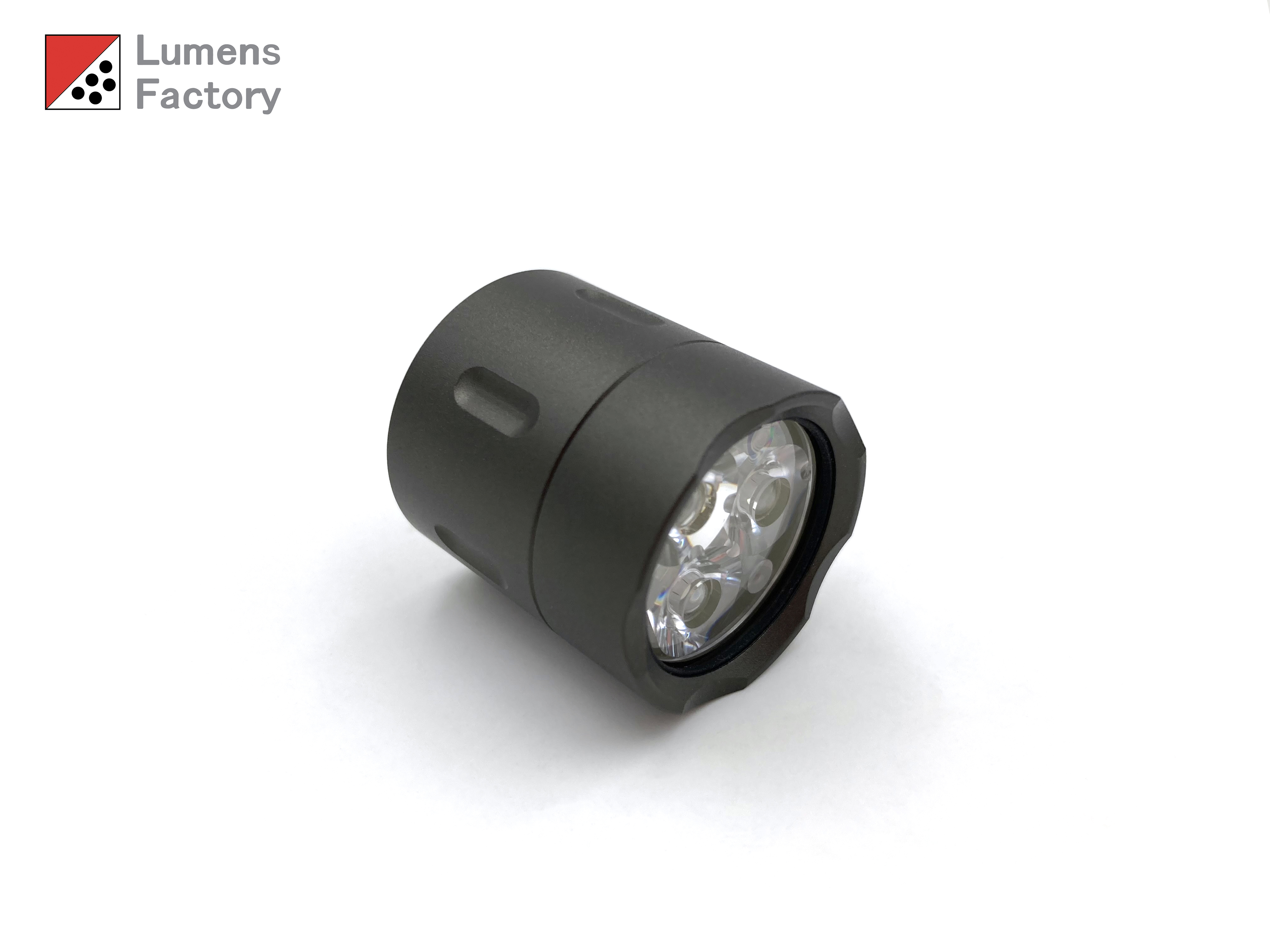

E Series Tactician Style Triple LED Head Unit
(3.7V-9V Regulated Input, 3 Mode Version)

Generation 2: (Cool White) Updated to Nichia 519A LED from Nichia 319B resulting in higher output and improved tint. (March, 2023)

-High Output Nichia 519A or Nichia 319A or Cree XP-L LED
(Max Output from 1000 to 1200 Lumens depending on model)
-3.7V to 9V Regulated Input for Maximum Flexibility
-3 Mode Version (5%-30%-100% with Memory Function)
-Maximum Current Input to LED at 2000mA
-Cool White, Neutral White 80-CRI or Warm White 90-CRI LEDs Available
-Carclo 10507 Triple Optics
-Direct Thermal Copper MCPCB
-Reverse Polarity Input Protection
-Over-Discharge Protection
-HA3 Anodizing on the Head Unit
-Aluminum HA3 Anodized Flat or Crenelated Bezel
-Optical Coated UCL Tempered Glass Lens
-Constant Output
-Shelf Design for Optimal Heat Dissipation

Please note that Triple LED Modules have a FLOODY Beam Pattern as with all modules that use the Carclo 10507 Optics.
While it is great for CQB and EDC uses, it produces a FLOODY wall of light that might not be for everyone's taste.

***This is a multi mode module, it is not recommended for tactical use due to the inability for momentary operations.***

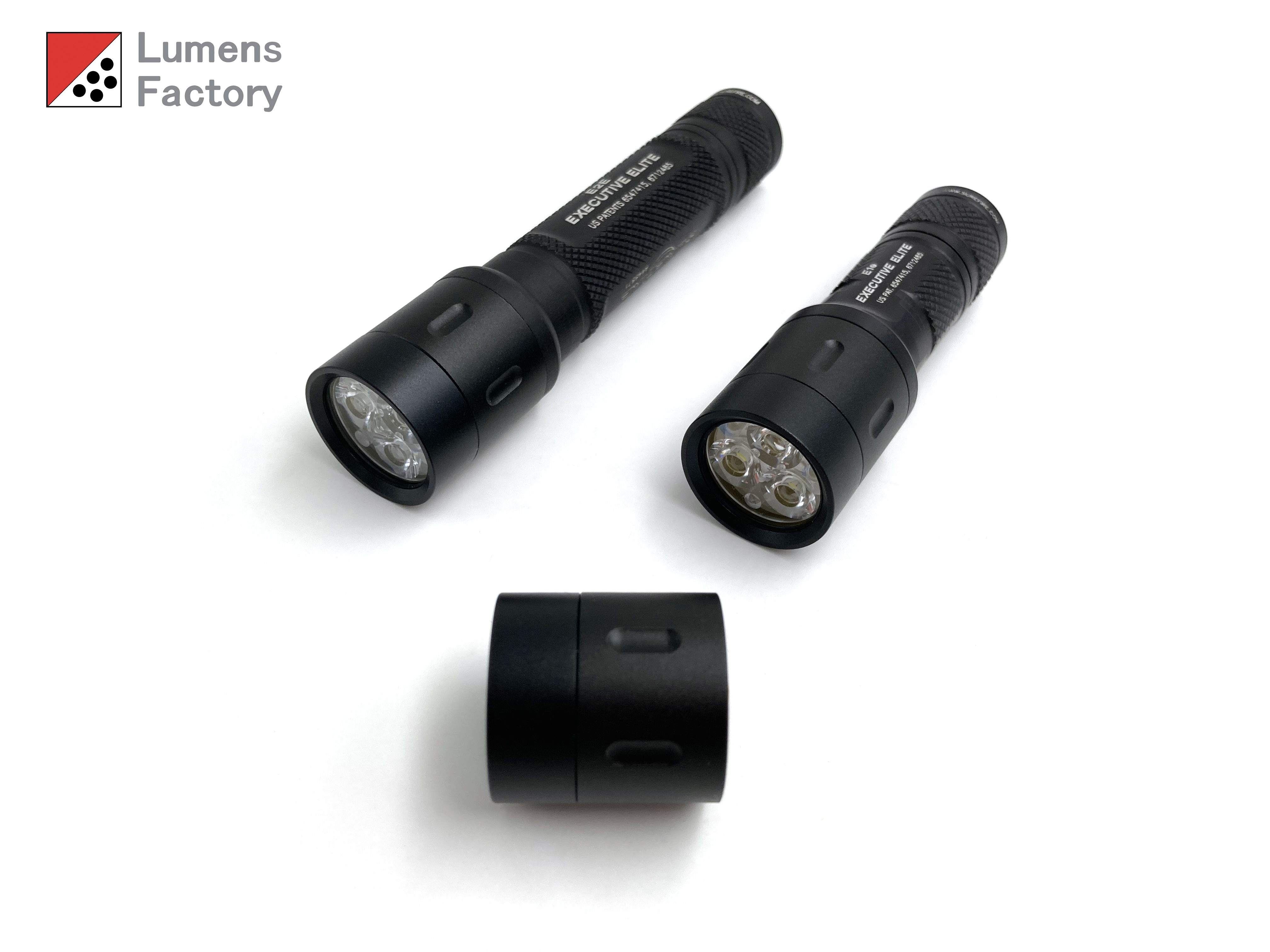

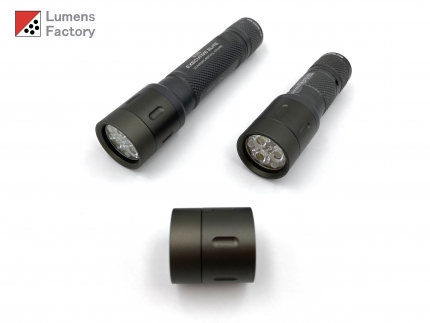

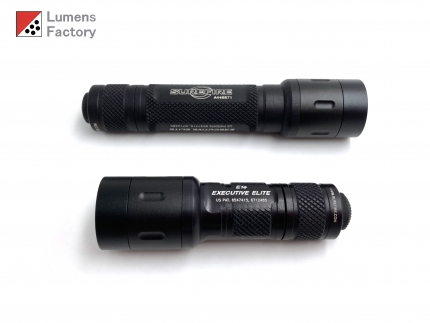

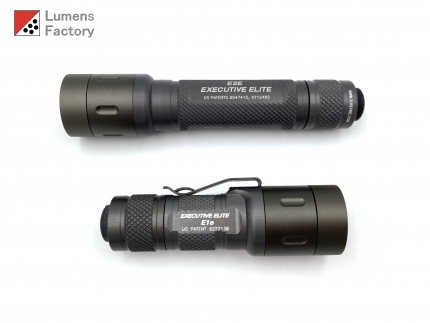

Compatible with:

Surefire
E2L AA using 2 x 14500 Rechargeable

E2, E2E, E2D, E2O, E2L, L4 Digital Lumamax
Using 2 x CR123A Primary Cells or 1 x 17670 Rechargeable Cell or 2 x RCR123 Rechargable Cells


Runtime:
On 100% Output

***If you are planning to use a 1 cell battery setup that is less than a 16650 (such as a 14500 or 16340 or 18350), please buy the 2.7V-4.5V model instead of this module.***
1 x 16650 (2500mAh): ~1.5 hour
1 x 17670 (1600mAh): ~1 hour
2 x CR123a Primaries: ~2 hours
2 x RCR123 (750mAh): ~2 hours
